SVVBN 12 3B
SVVBN 12 3B
SVVBN 12 3B

SVVBN 12 3B

UGC DOR6788698
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$204.00 CAD - $204.00 CAD
$204.00 CAD
$204.00 CAD - $204.00 CAD
$204.00 CAD

Vendu en lots de : 1

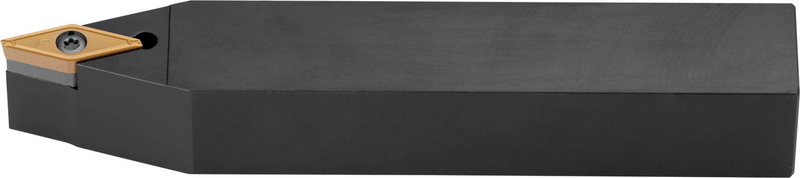

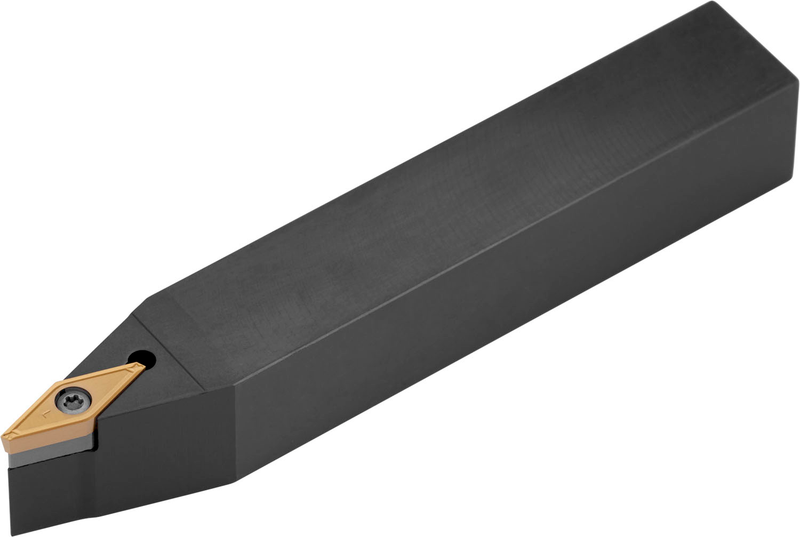

Outil de tournage à levier pour plaquette positive rhomboïde à 35° avec un diamètre de cercle inscrit de 3/8'' et une épaisseur de 3/16'' (désignation ANSI VB.. 33.), main neutre 72°30' d'attaque latérale avec queue droite, hauteur d'outil de 3/4'' x largeur de 3/4'' x longueur de 4.1/2'' pour le tournage conique, le copiage unidirectionnel et multidirectionnel et le chariotage sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SVVBN 12 3B
Product Number6788698
Product FamilySVVBCN EXT
Dimensions
Functional Length — in (LF)4.5"
Functional Length — mm (LF)114.0 mm
Shank Height — mm (H)0.75 mm
Tool Information
Reference Numbers
EDP Number6788698
EAN3603602984593
File Type Download

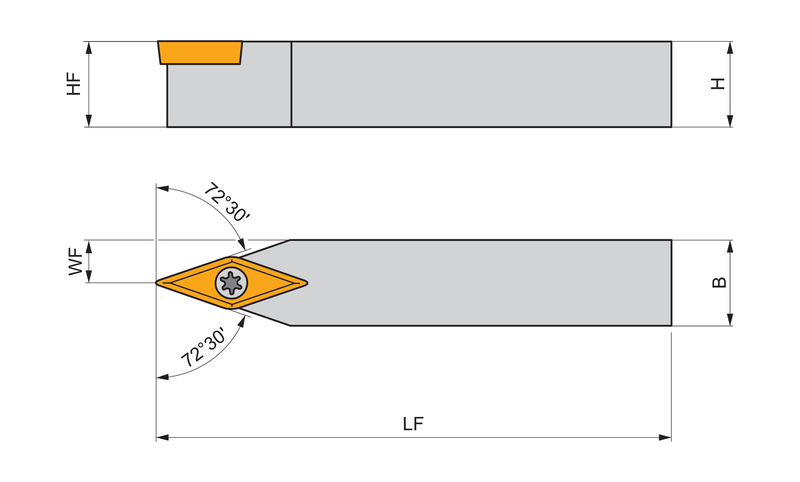

SVVBN 12 3B — Line Drawing PDF Download
