SVVBN 16 3D
SVVBN 16 3D
SVVBN 16 3D

SVVBN 16 3D

UGC DOR6788699
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$208.00 CAD - $208.00 CAD
$208.00 CAD
$208.00 CAD - $208.00 CAD
$208.00 CAD

Vendu en lots de : 1

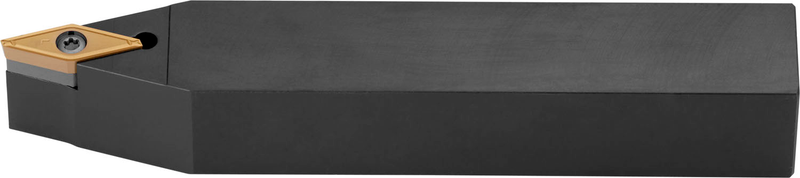

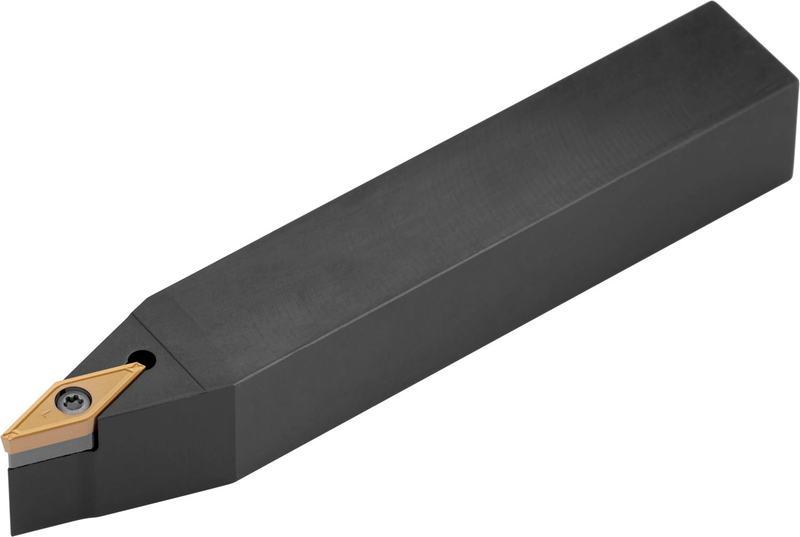

Outil à tourner à bride à vis pour le maintien d'un insert positif en forme de losange de 35° avec un diamètre de cercle inscrit de 3/8'', 3/16'' d'épaisseur (désignation ANSI VB.. 33. ), main neutre 72°30' de coupe latérale avec queue droite, hauteur d'outil de 1'' x 1'' de largeur x 6'' de long pour le tournage conique, le tournage de copie unidirectionnel et multidirectionnel et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SVVBN 16 3D
Product Number6788699
Product FamilySVVB(C)N EXT

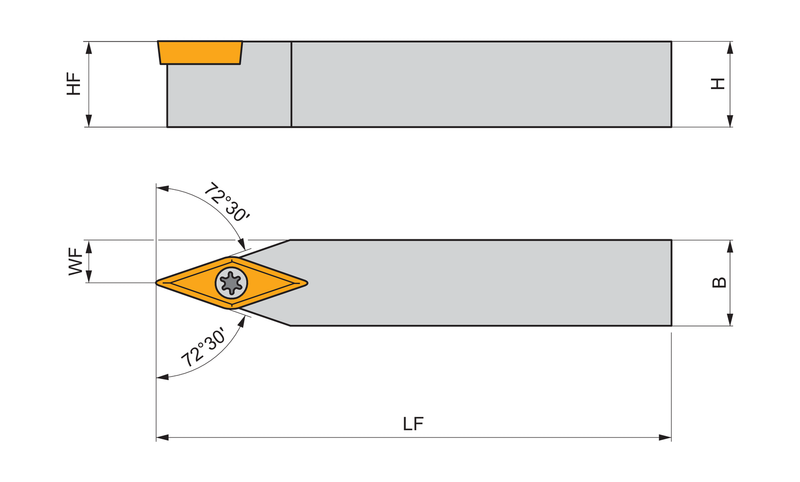

Dimensions
Functional Length — in (LF)6.0"
Functional Length — mm (LF)152.0 mm
Shank Height — mm (H)1.0 mm
Tool Information
Reference Numbers
EDP Number6788699
EAN3603602984609
File Type Download
SVVBN 16 3D — Line Drawing PDF Download
