SVVBN 20 3D
SVVBN 20 3D
SVVBN 20 3D

SVVBN 20 3D

UGC DOR6788700
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$219.00 CAD - $219.00 CAD
$219.00 CAD
$219.00 CAD - $219.00 CAD
$219.00 CAD

Vendu en lots de : 1

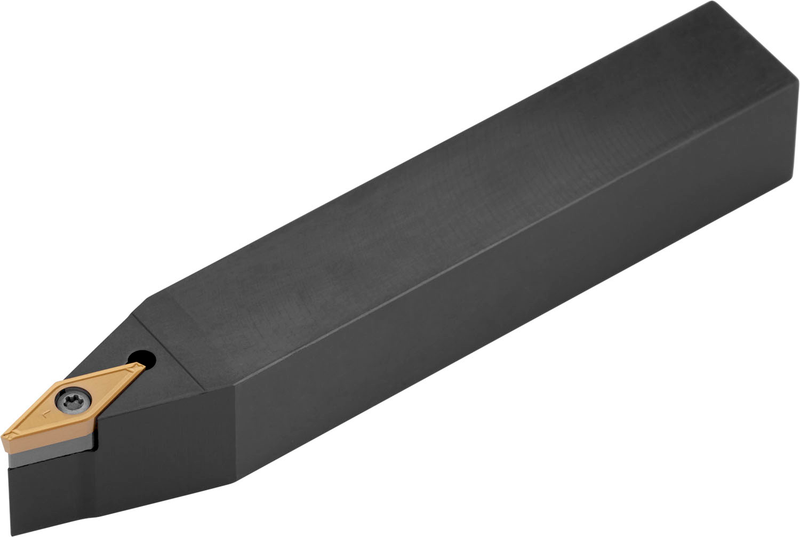

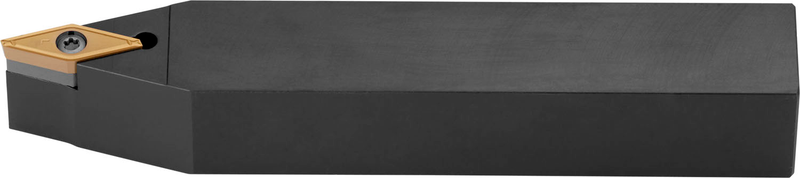

Outil de chariotage à levier pour plaquette positive rhomboïde à 35° avec un cercle inscrit de 3/8'' et une épaisseur de 3/16'' (désignation ANSI VB.. 33. ), main neutre, angle d'attaque 72°30' avec un corps droit, hauteur d'outil de 1.1/4'' x largeur 1.1/4'' x longueur de 6'' pour le tournage conique, le copiage monodirectionnel et multidirectionnel et le chariotage sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SVVBN 20 3D
Product Number6788700
Product FamilySVVB(C)N EXT

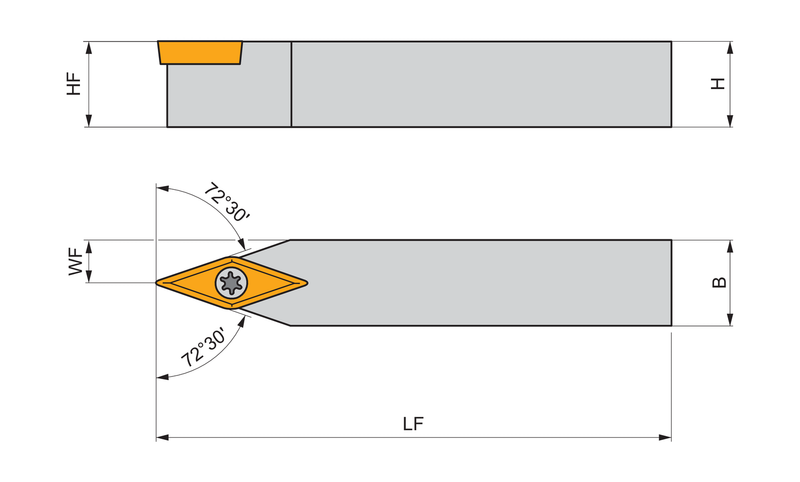

Dimensions
Functional Length — in (LF)6.0"
Functional Length — mm (LF)152.0 mm
Shank Height — mm (H)1.25 mm
Tool Information
Reference Numbers
EDP Number6788700
EAN3603602984616
File Type Download
SVVBN 20 3D — Line Drawing PDF Download
