SVJBL 16 3D
SVJBL 16 3D
SVJBL 16 3D

SVJBL 16 3D

UGC DOR6789414
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$208.00 CAD - $208.00 CAD
$208.00 CAD
$208.00 CAD - $208.00 CAD
$208.00 CAD

Vendu en lots de : 1

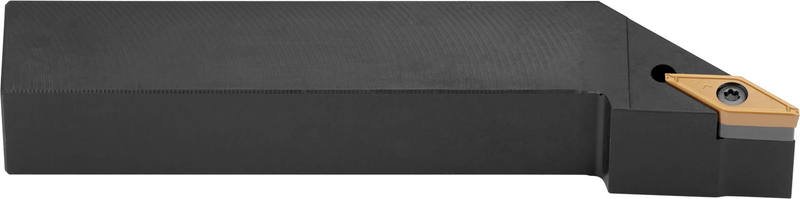

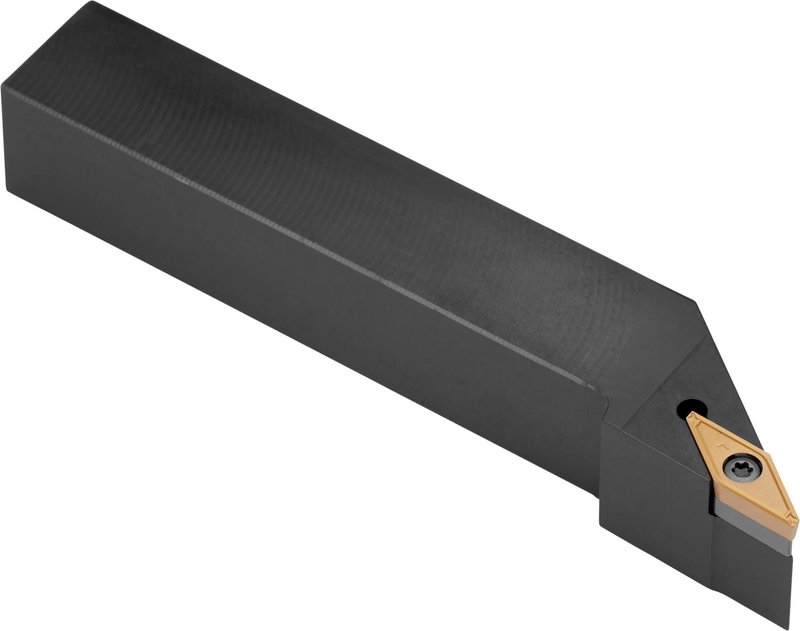

Porte-outil à levier pour insert positif en losange à 35° avec un diamètre de cercle inscrit de 3/8'', 3/16'' d'épaisseur (désignation ANSI VB.. 33. ), à gauche, coupe latérale de 93° avec corps déporté, hauteur d'outil de 1'' x largeur de 1'' x longueur de 6'' pour le tournage conique, le tournage de reproduction unidirectionnel et multidirectionnel et le tournage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SVJBL 16 3D
Product Number6789414
Product FamilySVJB(C)(RL) EXT
Dimensions
Functional Length — in (LF)6.0"
Functional Length — mm (LF)152.0 mm
Shank Height — mm (H)1.0 mm
Tool Information
Reference Numbers
EDP Number6789414
EAN3603602979063
File Type Download

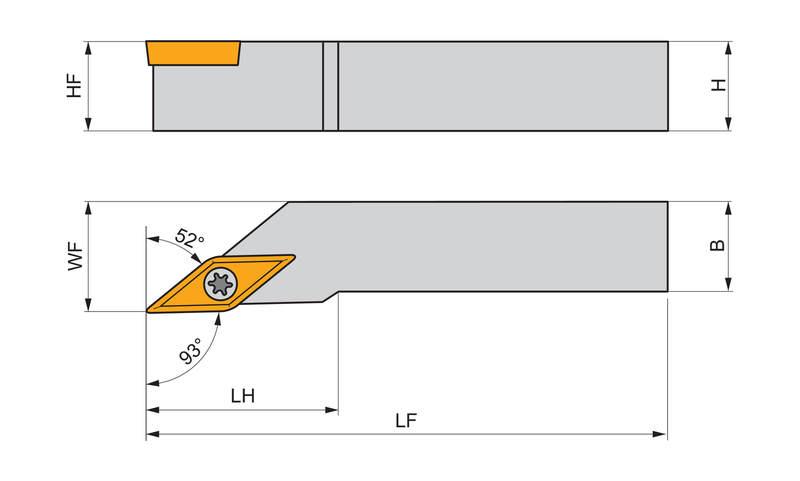

SVJBL 16 3D — Line Drawing PDF Download
