250A03R-IS90SN12N4
250A03R-IS90SN12N4
250A03R-IS90SN12N4

250A03R-IS90SN12N4

UGC DOR6789669
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,310.00 CAD - $1,310.00 CAD
$1,310.00 CAD
$1,310.00 CAD - $1,310.00 CAD
$1,310.00 CAD

Vendu en lots de : 1

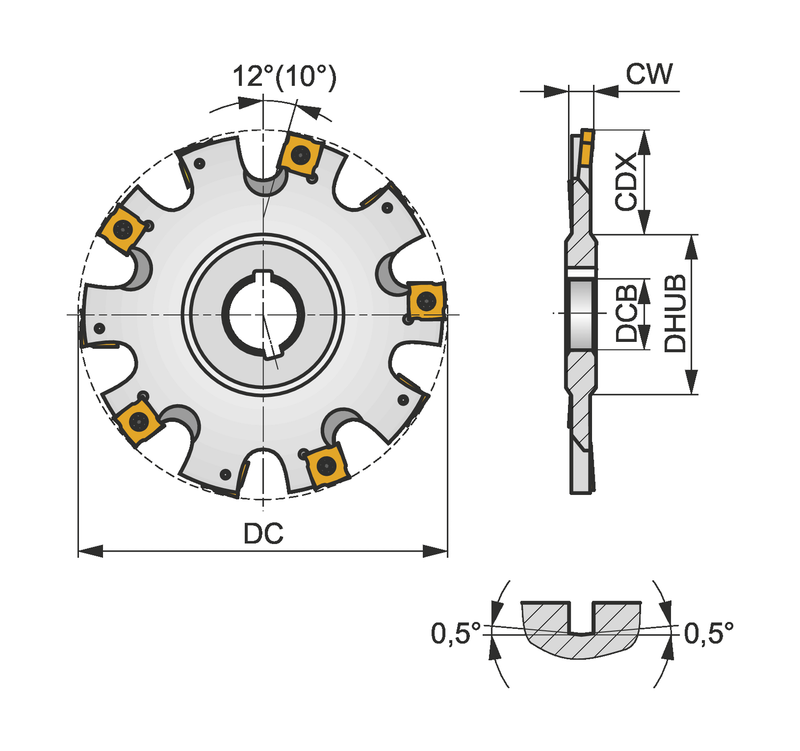

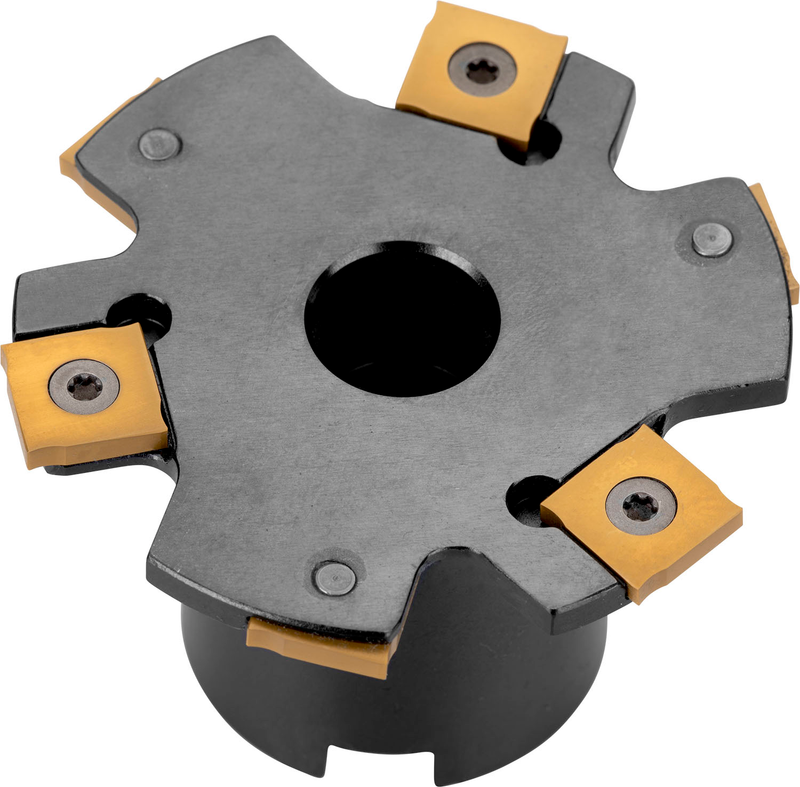

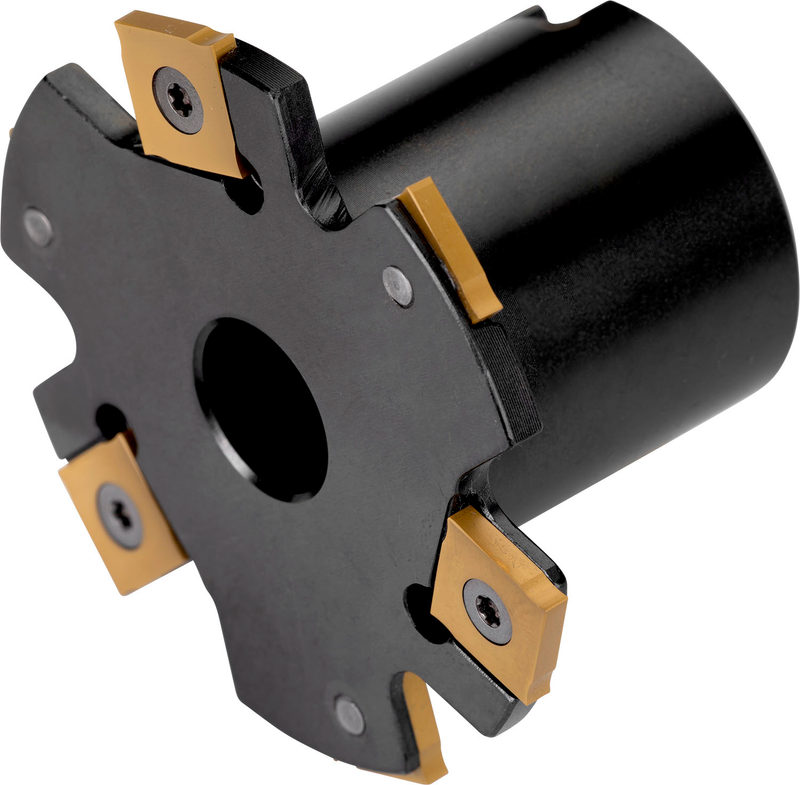

Fraise-scie à double géométrie positive qui utilise 6 plaquettes double-face SNHQ 1102.., diamètre de coupe 2.500'' avec un angle d'attaque de 90° et un alésage de connexion de .750'' selon DIN 8030-A, longueur de dépassement de 1.575'' pour le fraisage de gorges profondes avec une largeur de coupe de .250''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)250A03R-IS90SN12N4
Product Number6789669
Product FamilyIS90SN
Insert Geometry
Depth of Cut Max — in (APMX)0.413"
Dimensions
Cutting Diameter — in (DC)2.5"
Cutting Diameter — mm (DC)63.5 mm
Overall Length — in (OAL)1.575"
Overall Length — mm (OAL)40.0 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignS90SN
ShankFraise-scie DIN 8030 A
Direction of ToolD'accord
Reference Numbers
EDP Number6789669
EAN3603602979186
File Type Download
250A03R-IS90SN12N4 — 3D Model STP Download
250A03R-IS90SN12N4 — 2D Model DXF Download
250A03R-IS90SN12N4 — Line Drawing PDF Download
