300A04R-IS90SN12N4
300A04R-IS90SN12N4
300A04R-IS90SN12N4

300A04R-IS90SN12N4

UGC DOR6789671
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,455.00 CAD - $1,455.00 CAD
$1,455.00 CAD
$1,455.00 CAD - $1,455.00 CAD
$1,455.00 CAD

Vendu en lots de : 1

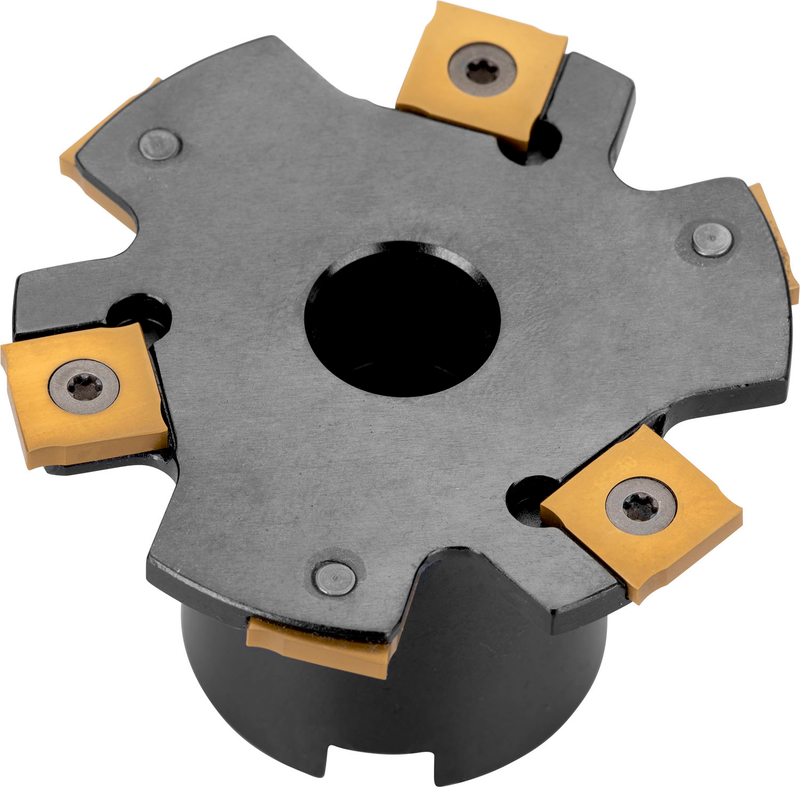

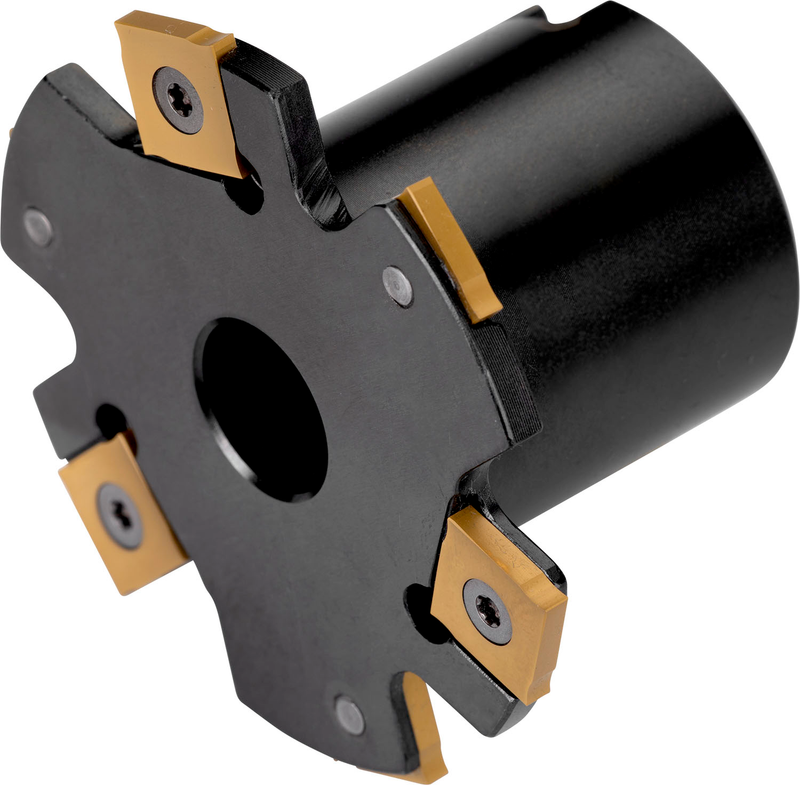

Fraise-scie à double géométrie positive utilisant 8 plaquettes double face SNHQ 1102.., diamètre de coupe de 3,000'' avec un angle d'attaque de 90° et un alésage de connexion de 0,750'' selon DIN 8030-A, une longueur de dépassement de 1,575'' pour le fraisage de rainures profondes avec une largeur de coupe de 0,250''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)300A04R-IS90SN12N4
Product Number6789671
Product FamilyIS90SN
Insert Geometry
Depth of Cut Max — in (APMX)0.61"

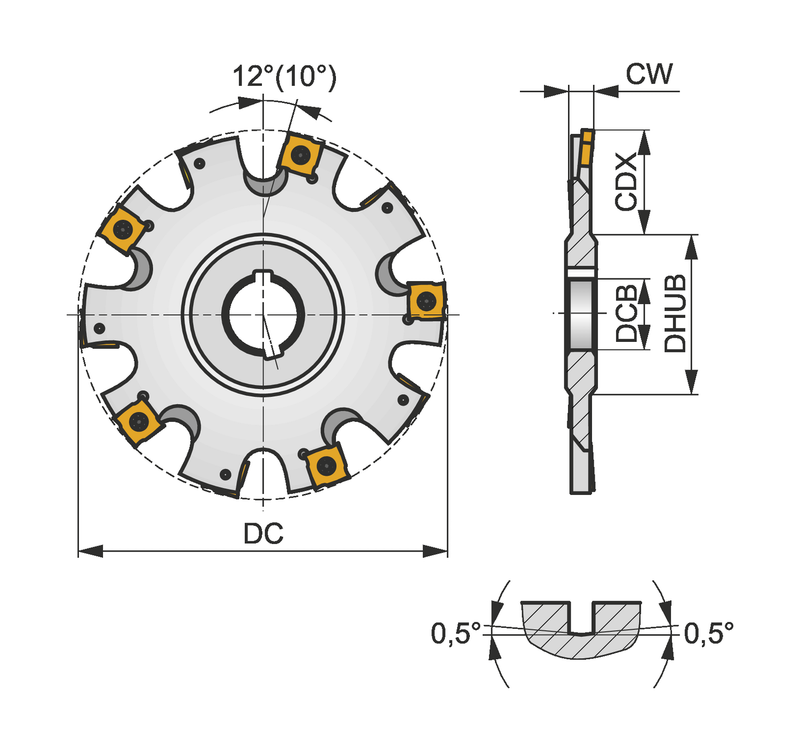

Dimensions
Cutting Diameter — in (DC)3.0"
Cutting Diameter — mm (DC)76.2 mm
Overall Length — in (OAL)1.575"
Overall Length — mm (OAL)40.0 mm
Number of Flutes (NOF)8
Tool Information
Tool DesignS90SN
ShankFraise à surfacer-dresser DIN 8030 A
Direction of ToolD'accord
Reference Numbers
EDP Number6789671
EAN3603602979209
File Type Download
300A04R-IS90SN12N4 — 3D Model STP Download
300A04R-IS90SN12N4 — 2D Model DXF Download
300A04R-IS90SN12N4 — Line Drawing PDF Download
