400A05R-IS90SN12N4
400A05R-IS90SN12N4
400A05R-IS90SN12N4

400A05R-IS90SN12N4

UGC DOR6789675
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,570.00 CAD - $1,570.00 CAD
$1,570.00 CAD
$1,570.00 CAD - $1,570.00 CAD
$1,570.00 CAD

Vendu en lots de : 1

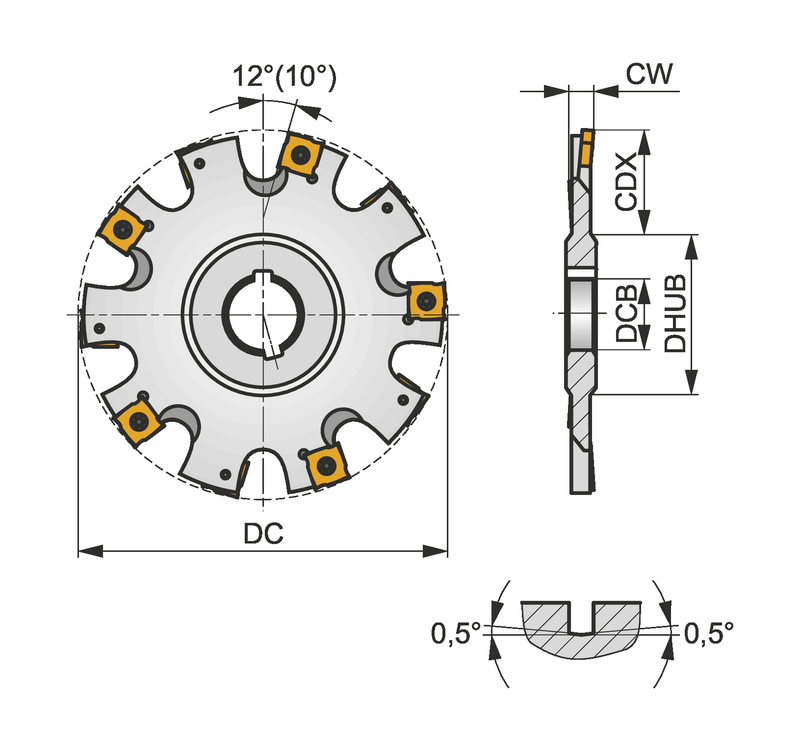

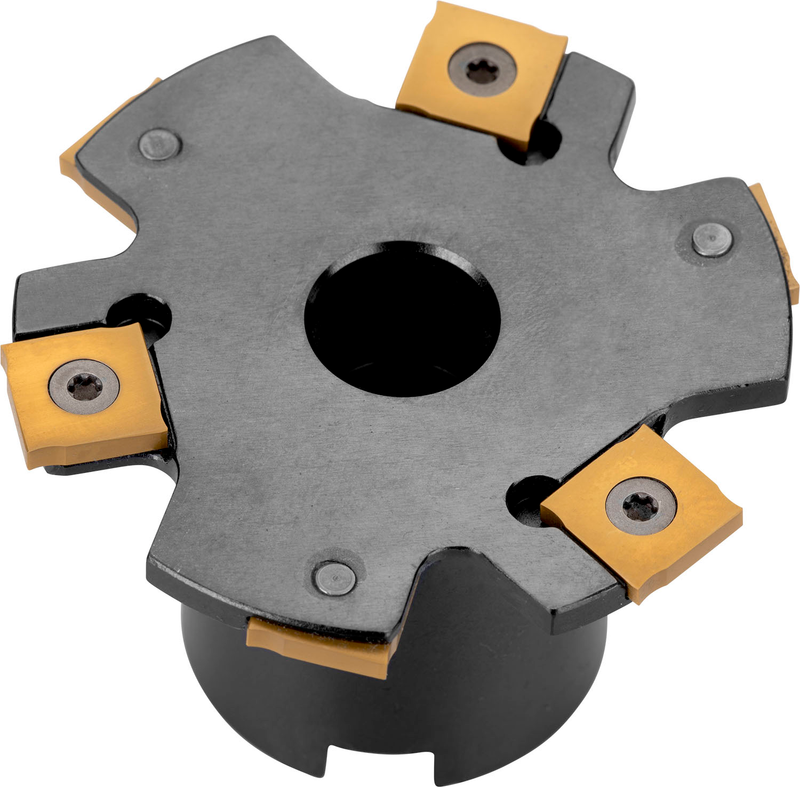

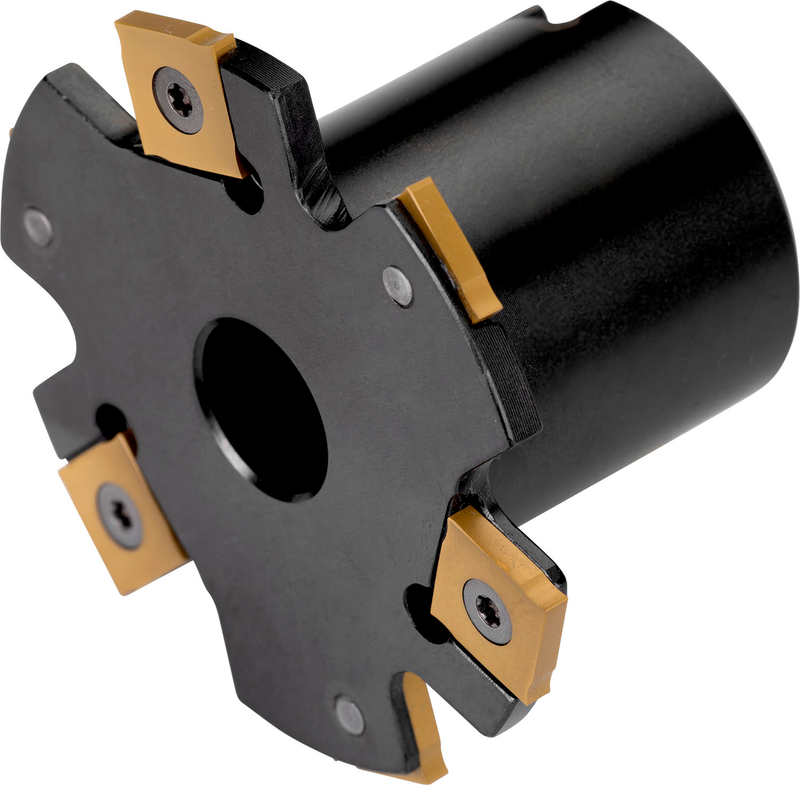

Fraise-scie à géométrie double positive qui utilise 10 plaquettes SNHQ 1102... double face, diamètre de coupe 4,000" avec un angle d'attaque de 90° et un alésage de connexion de 1,000" selon DIN 8030-A, longueur de dépassement de 1,969" pour le fraisage de rainures profondes avec une largeur de coupe de 0,250"

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)400A05R-IS90SN12N4
Product Number6789675
Product FamilyIS90SN
Insert Geometry
Depth of Cut Max — in (APMX)0.945"
Dimensions
Cutting Diameter — in (DC)4.0"
Cutting Diameter — mm (DC)101.6 mm
Overall Length — in (OAL)1.969"
Overall Length — mm (OAL)50.0 mm
Number of Flutes (NOF)10
Tool Information
Tool DesignS90SN
ShankFraise deux tailles DIN 8030 A
Direction of ToolD'accord
Reference Numbers
EDP Number6789675
EAN3603602979247
File Type Download
400A05R-IS90SN12N4 — 3D Model STP Download
400A05R-IS90SN12N4 — 2D Model DXF Download
400A05R-IS90SN12N4 — Line Drawing PDF Download
