500H06N-IS90SN12N5
500H06N-IS90SN12N5
500H06N-IS90SN12N5

500H06N-IS90SN12N5

UGC DOR6789680
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,737.00 CAD - $1,737.00 CAD
$1,737.00 CAD
$1,737.00 CAD - $1,737.00 CAD
$1,737.00 CAD

Vendu en lots de : 1

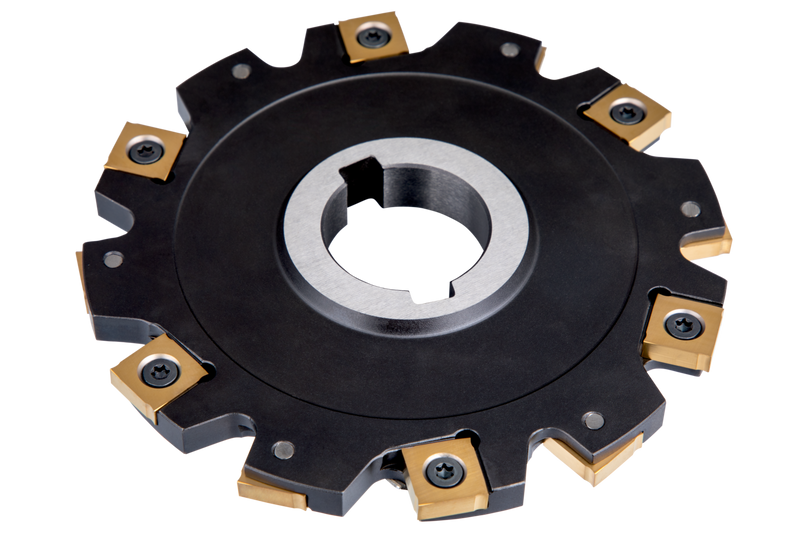

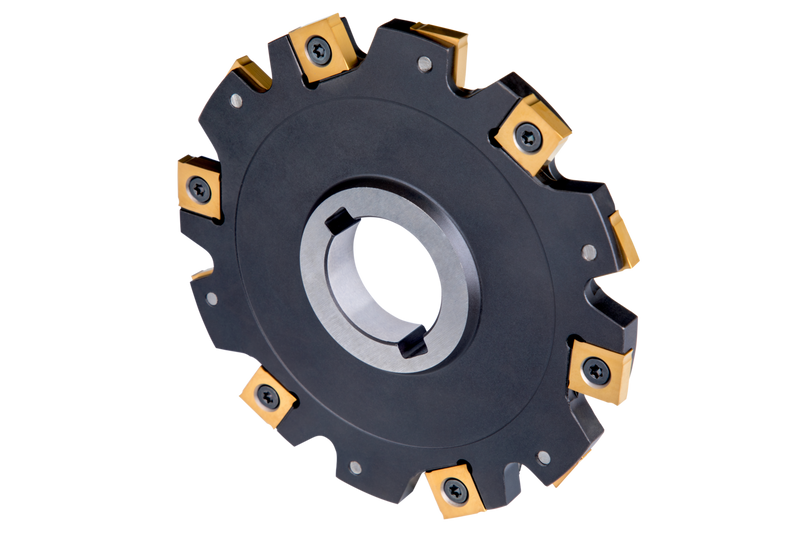

Fraise-disque à double géométrie positive qui utilise 12 plaquettes double face SNHQ 1102.., diamètre de coupe 5 000'' avec un angle d'attaque de 90° et un alésage de connexion de 1 250'' selon la norme DIN 8030, pour le fraisage de rainures profondes avec une largeur de coupe de 0,313''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)500H06N-IS90SN12N5
Product Number6789680
Product FamilyIS90SN
Insert Geometry
Depth of Cut Max — in (APMX)1.22"

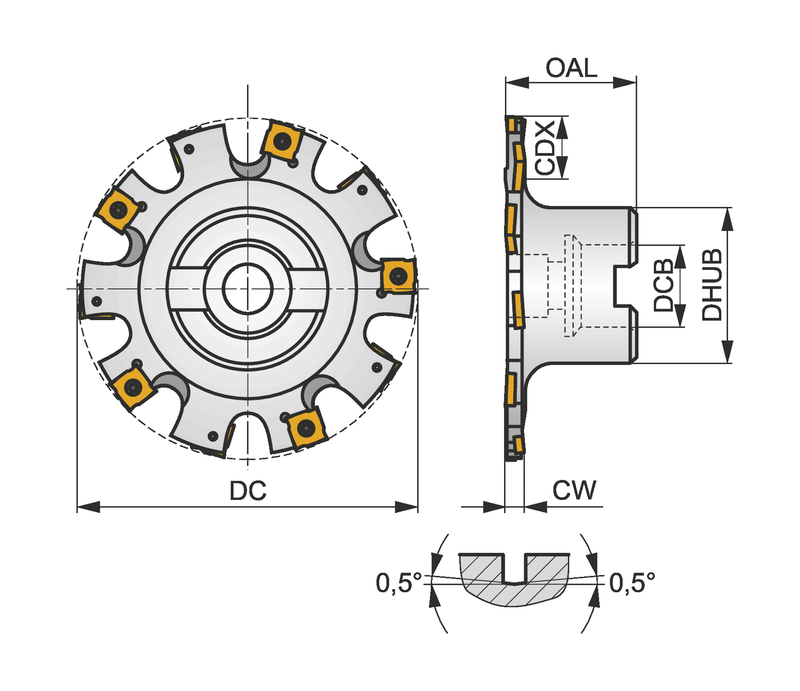

Dimensions
Cutting Diameter — in (DC)5.0"
Cutting Diameter — mm (DC)127.0 mm
Number of Flutes (NOF)12
Tool Information
Tool DesignS90SN
ShankFraise cloche DIN 8030 – fraise à disque
Direction of ToolNeutre
Reference Numbers
EDP Number6789680
EAN3603602979292
File Type Download
500H06N-IS90SN12N5 — 3D Model STP Download
500H06N-IS90SN12N5 — 2D Model DXF Download
500H06N-IS90SN12N5 — Line Drawing PDF Download
