062N2R106C062-ISSD09
062N2R106C062-ISSD09
062N2R106C062-ISSD09

062N2R106C062-ISSD09

UGC DOR6789707
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$393.00 CAD - $393.00 CAD
$393.00 CAD
$393.00 CAD - $393.00 CAD
$393.00 CAD

Vendu en lots de : 1

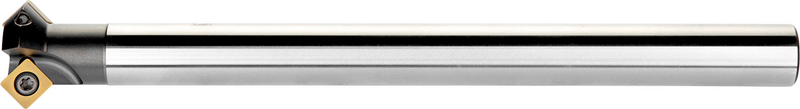

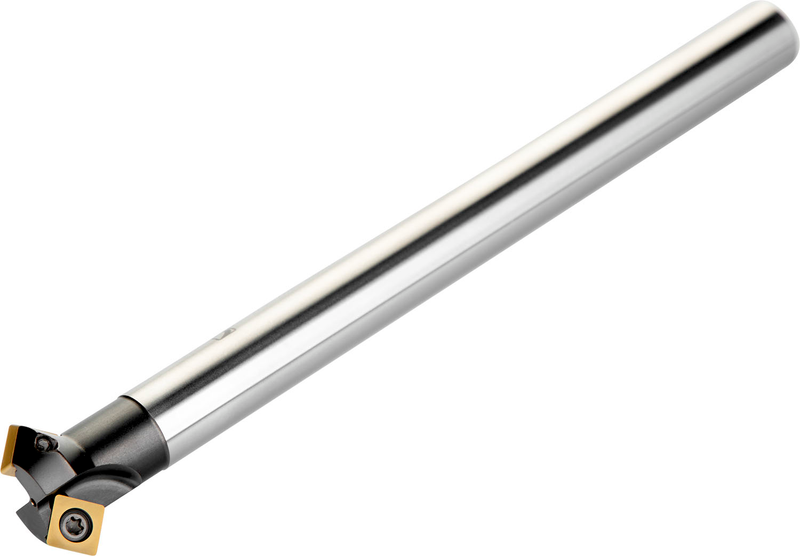

Fraise à chanfreiner à géométrie double négative utilisant 2 plaquettes unilatérales SDEW 0903.. ou SDEX 0903.., diamètre de coupe de .625'' avec un angle d'attaque de 45° et une queue cylindrique de .625'' conforme à la norme DIN 1835A, longueur totale de 7.874'' pour le chanfreinage avec une profondeur de coupe maximale de .177''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)062N2R106C062-ISSD09
Product Number6789707
Product FamilyISSD09

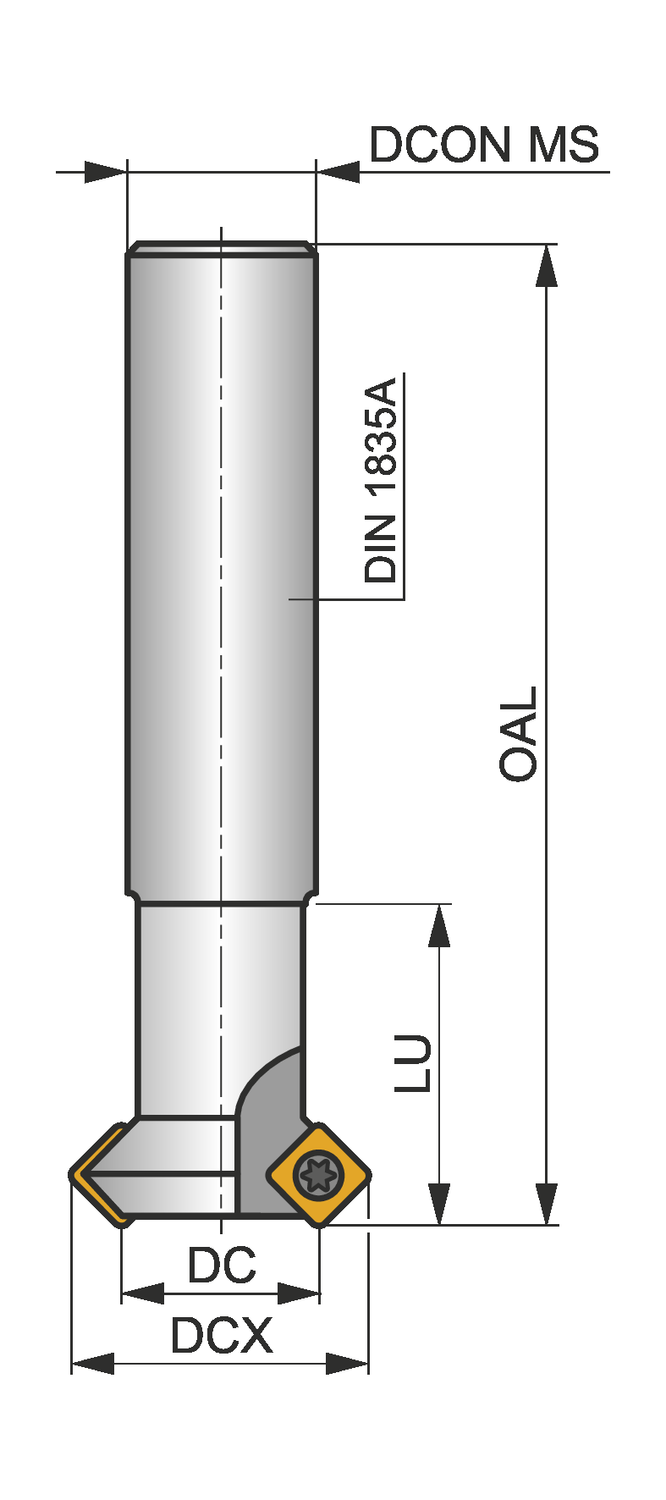

Dimensions
Cutting Diameter — in (DC)0.625"
Cutting Diameter — mm (DC)15.9 mm
Overall Length — in (OAL)7.874"
Overall Length — mm (OAL)200.0 mm
Usable Length — in (LU)1.063"
Usable Length — mm (LU)27.0 mm
Connection Dia. — in (DCON)0.625"
Connection Dia. — mm (DCON)15.9 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignSSD09
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Reference Numbers
EDP Number6789707
EAN3603602979520
File Type Download
062N2R106C062-ISSD09 — 3D Model STP Download
062N2R106C062-ISSD09 — 2D Model DXF Download
062N2R106C062-ISSD09 — Line Drawing PDF Download
