100N3R128C100-ISSD09
100N3R128C100-ISSD09
100N3R128C100-ISSD09

100N3R128C100-ISSD09

UGC DOR6789709
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$461.00 CAD - $461.00 CAD
$461.00 CAD
$461.00 CAD - $461.00 CAD
$461.00 CAD

Vendu en lots de : 1

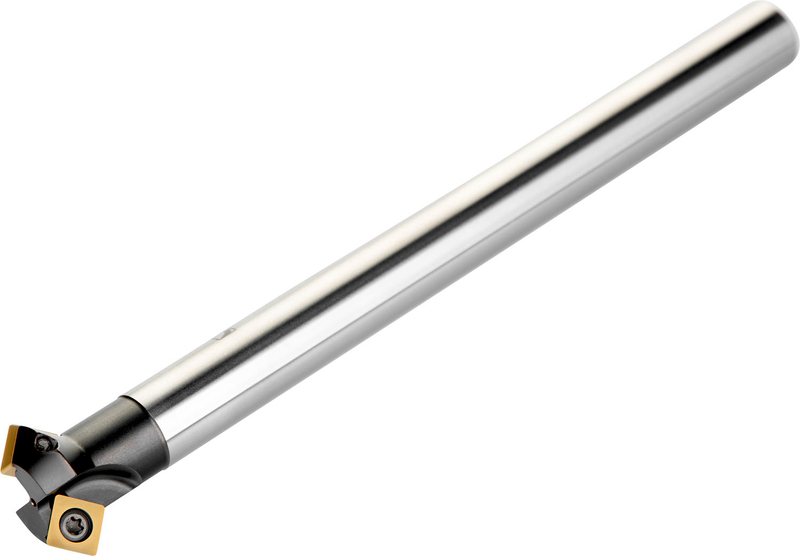

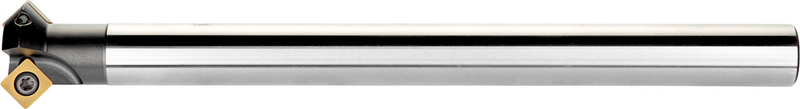

Fraise à chanfreiner à double géométrie négative qui utilise 3 plaquettes simple face SDEW 0903... ou SDEX 0903..., diamètre de coupe de 1,000 à 1,472'' maximum avec un angle d'attaque de 45° et une queue cylindrique de 1,000'' selon DIN 1835A, longueur totale de 7,874'' pour le chanfreinage avec une profondeur de coupe maximale de 0,177''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)100N3R128C100-ISSD09
Product Number6789709
Product FamilyISSD09

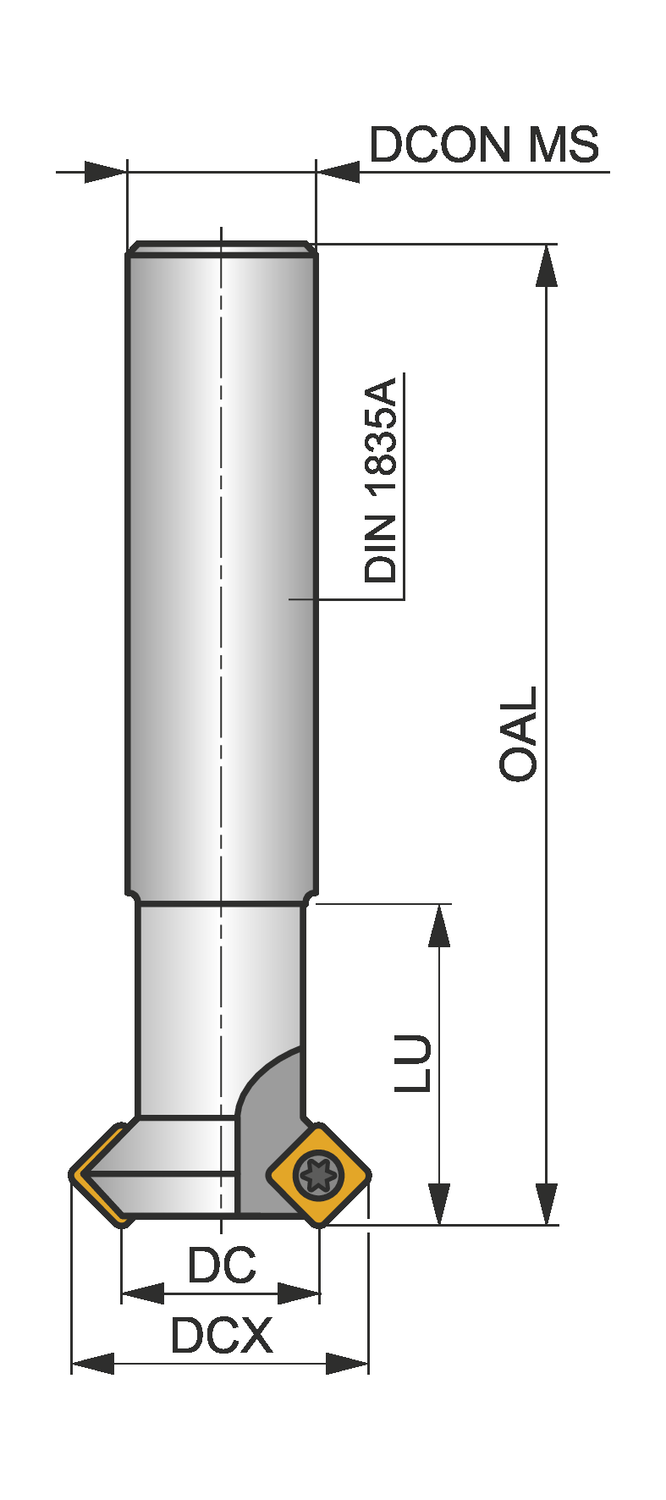

Dimensions
Cutting Diameter — in (DC)1.0"
Cutting Diameter — mm (DC)25.4 mm
Overall Length — in (OAL)7.874"
Overall Length — mm (OAL)200.0 mm
Usable Length — in (LU)1.28"
Usable Length — mm (LU)32.51 mm
Connection Dia. — in (DCON)1.0"
Connection Dia. — mm (DCON)25.4 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignSSD09
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Reference Numbers
EDP Number6789709
EAN3603602979544
File Type Download
100N3R128C100-ISSD09 — 3D Model STP Download
100N3R128C100-ISSD09 — 2D Model DXF Download
100N3R128C100-ISSD09 — Line Drawing PDF Download
