200T04R-IS45XP16-C
200T04R-IS45XP16-C

200T04R-IS45XP16-C

UGC DOR6790029
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,408.00 CAD - $1,408.00 CAD
$1,408.00 CAD
$1,408.00 CAD - $1,408.00 CAD
$1,408.00 CAD

Vendu en lots de : 1

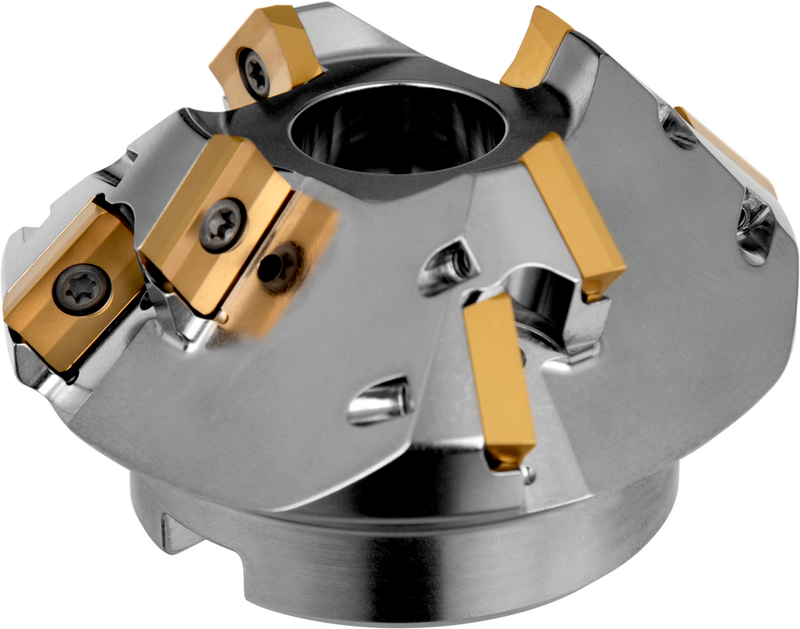

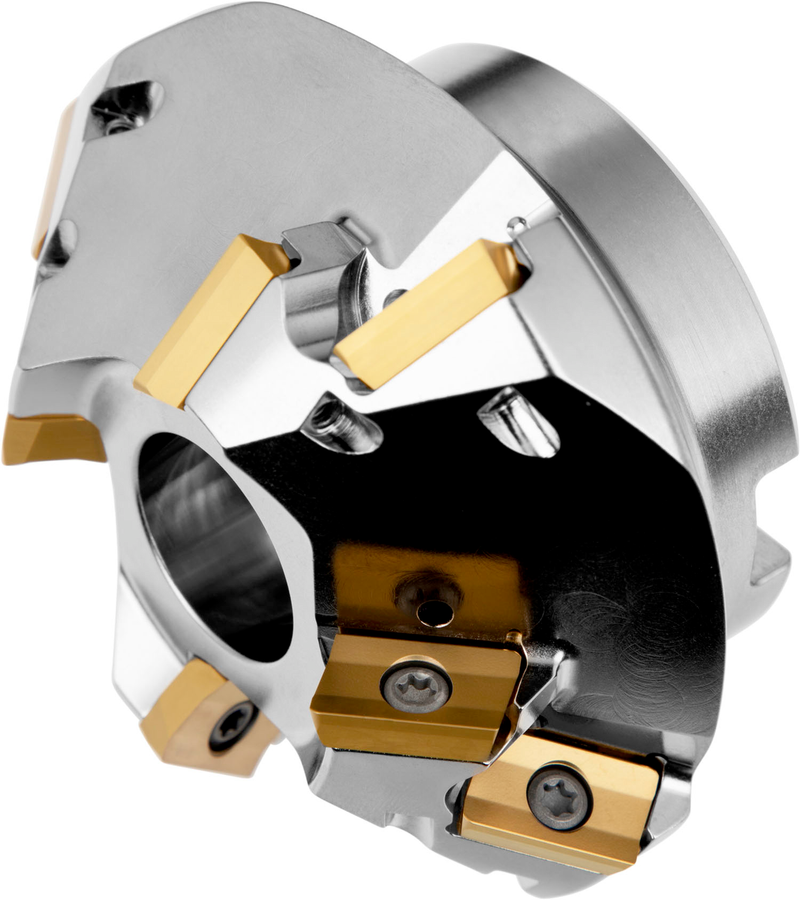

Fraise à chanfreiner avec géométrie positive/négative utilisant 8 plaquettes simple face XPHT 1604.., diamètre de coupe de 2.000 à 3.575'' maximum avec un angle d'attaque de 45° et un alésage de connexion de 1.000'' selon DIN 8030, longueur de dépassement de 1.969'', arrosage interne pour le chanfreinage avec une profondeur de coupe maximale de .787''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)200T04R-IS45XP16-C
Product Number6790029
Product FamilyJ(T)-ISXP16
Insert Geometry
Depth of Cut Max — in (APMX)0.787"
Dimensions
Cutting Diameter — in (DC)2.0"
Cutting Diameter — mm (DC)50.8 mm
Functional Length — in (LF)1.969"
Functional Length — mm (LF)50.01 mm
Connection Dia. — in (DCON)1.0"
Connection Dia. — mm (DCON)25.4 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignJ(T)-SXP16
ShankFraise coquille DIN 8030 – fraise hélicoïdale
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6790029
EAN3603602981196
File Type Download
200T04R-IS45XP16-C — 3D Model STP Download
200T04R-IS45XP16-C — 2D Model DXF Download
