A20T-GGHR 0413
A20T-GGHR 0413
A20T-GGHR 0413

A20T-GGHR 0413

UGC DOR6790495
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$504.00 CAD - $504.00 CAD
$504.00 CAD
$504.00 CAD - $504.00 CAD
$504.00 CAD

Vendu en lots de : 1

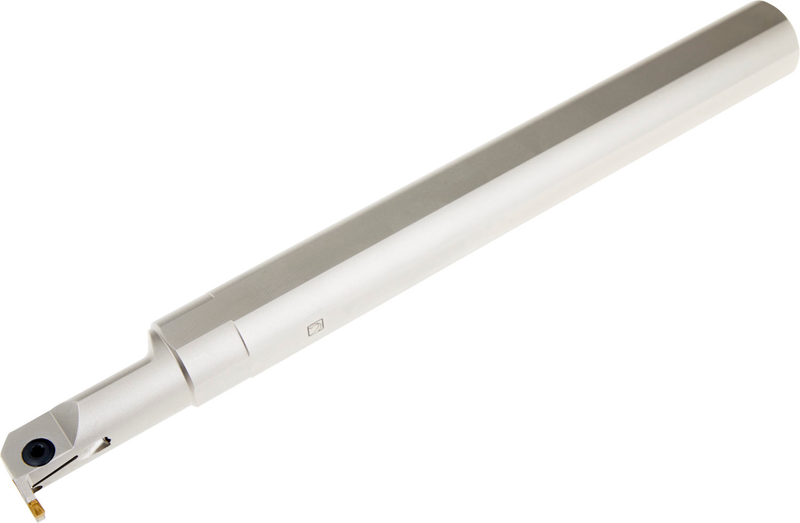

Barre de rainurage à bride supérieure pour l'insertion d'un insert double ou simple de 0,496'' de long avec une largeur de coupe de 0,157'' (désignation LCM. 0413.. ), droitier avec insert perpendiculaire à la queue pour une profondeur de rainurage maximale de 0,413'', diamètre de la queue de 1,1/4'' et longueur d'outil de 12'' pour le rainurage et le tournage internes

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A20T-GGHR 0413
Product Number6790495
Product FamilyGG.(LR) INT
Insert Geometry
Depth of Cut Max — in (APMX)0.413"

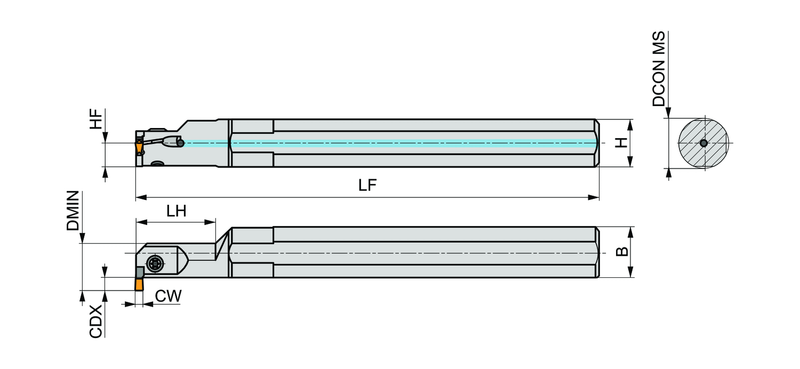

Dimensions
Functional Length — in (LF)12.0"
Functional Length — mm (LF)305.0 mm
Connection Dia. — in (DCON)1.25"
Connection Dia. — mm (DCON)32.0 mm
Shank Height — mm (H)1.181 mm
Min. Bore Dia. — in (DMIN)1.26"
Tool Information
Reference Numbers
EDP Number6790495
EAN3603602985200
File Type Download
A20T-GGHR 0413 — Line Drawing PDF Download
