250A09R-IS90AD11E-C
250A09R-IS90AD11E-C
250A09R-IS90AD11E-C

250A09R-IS90AD11E-C

UGC DOR6790724
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$628.00 CAD - $628.00 CAD
$628.00 CAD
$628.00 CAD - $628.00 CAD
$628.00 CAD

Vendu en lots de : 1

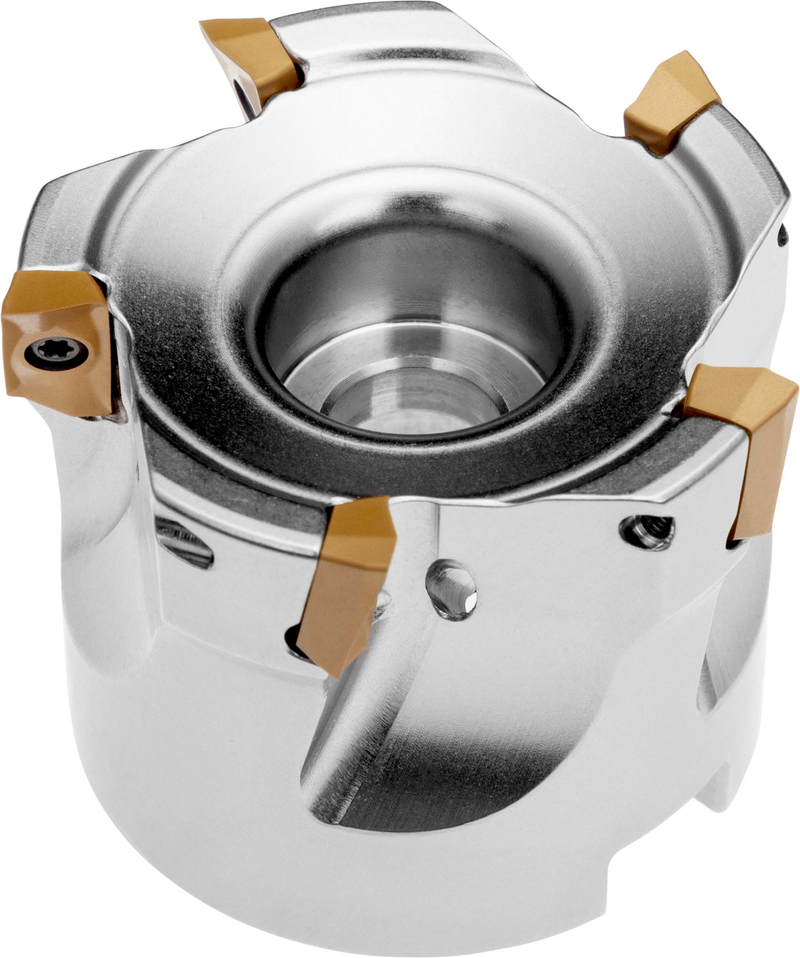

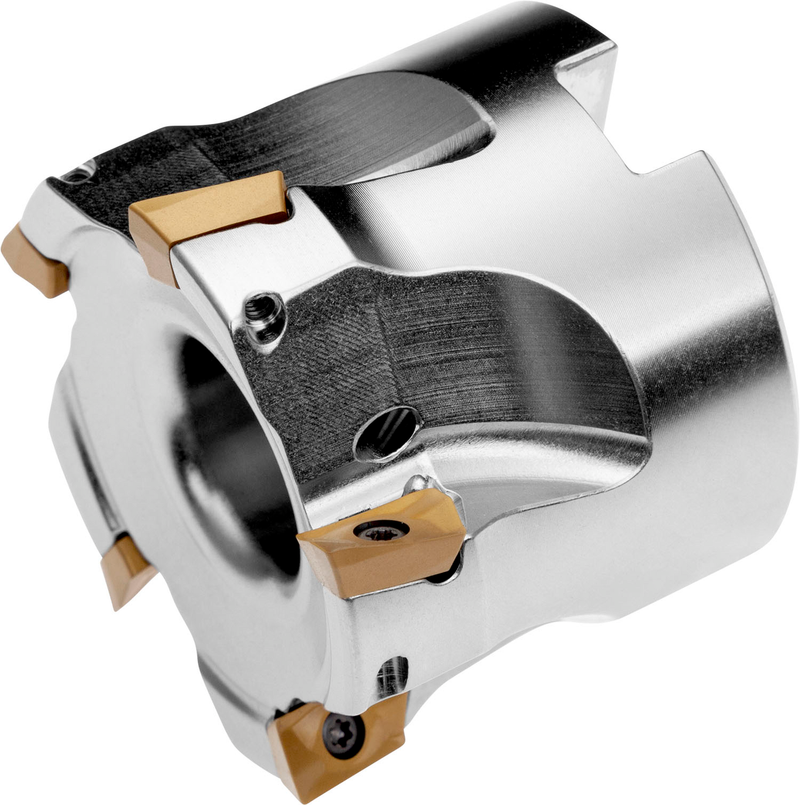

Fraise à épaulement de géométrie positive/négative qui utilise 9 plaquettes unilatérales ADMX 11T3.. ou ADEX 11T3.., diamètre de coupe 2.500'' avec un angle d'attaque de 90° et un alésage de connexion de .750'' selon DIN 8030-A, longueur de dépassement de 1.575'', arrosage interne pour le fraisage de copiage, le fraisage d'épaulements peu profonds, le fraisage de gorges peu profondes, l'usinage en rampe, le fraisage hélicoïdal, le fraisage en plongée et le fraisage en plongée progressive avec une profondeur de coupe maximale de .354''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)250A09R-IS90AD11E-C
Product Number6790724
Product FamilyISAD11E

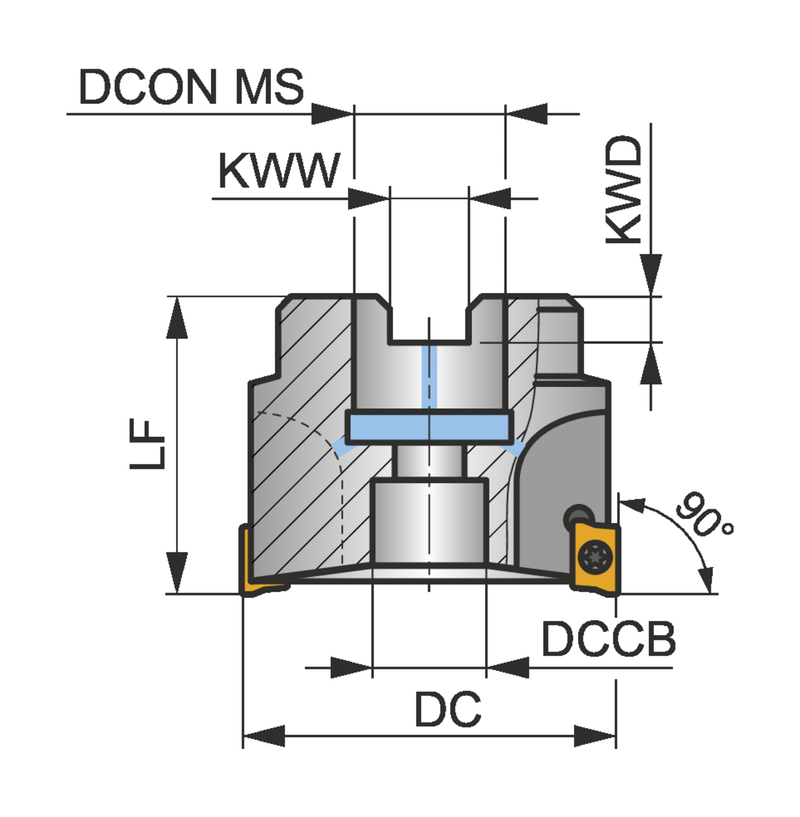

Dimensions
Cutting Diameter — in (DC)2.5"
Cutting Diameter — mm (DC)63.5 mm
Functional Length — in (LF)1.575"
Functional Length — mm (LF)40.01 mm
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.1 mm
Number of Flutes (NOF)9
Tool Information
Tool DesignSAD11E
ShankFraise à surfacer-dresser DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6790724
EAN3603602984937
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage possible
File Type Download
250A09R-IS90AD11E-C — 3D Model STP Download
250A09R-IS90AD11E-C — 2D Model DXF Download
250A09R-IS90AD11E-C — Line Drawing PDF Download
