250A06R-IS45HN09C-CF
250A06R-IS45HN09C-CF
250A06R-IS45HN09C-CF

250A06R-IS45HN09C-CF

UGC DOR6790761
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$996.00 CAD - $996.00 CAD
$996.00 CAD
$996.00 CAD - $996.00 CAD
$996.00 CAD

Vendu en lots de : 1

Fraise à surfacer avec géométrie double-négative utilisant 6 plaquettes double-face HNGX 0906AN.. ou XNGX 0906AN.., diamètre de coupe 2.500 à 2.961'' maximum avec un angle d'approche de 45° et un alésage de connexion de .750'' selon DIN 8030-A, longueur en porte-à-faux de 1.575'', arrosage central pour le surfaçage, l'usinage en rampe, le fraisage par plongée progressive et le chanfreinage avec une profondeur de coupe maximale de .197''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)250A06R-IS45HN09C-CF
Product Number6790761
Product FamilyISHN09C

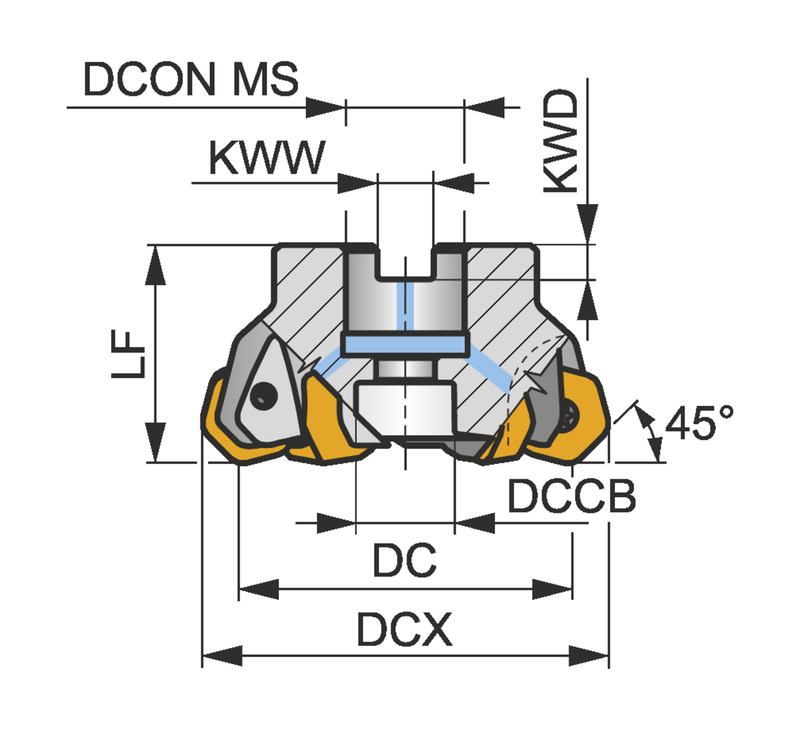

Dimensions
Cutting Diameter — in (DC)2.5"
Cutting Diameter — mm (DC)63.5 mm
Functional Length — in (LF)1.575"
Functional Length — mm (LF)40.01 mm
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.05 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignSHN09C
ShankFraise-obus DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6790761
EAN3603602985002
File Type Download
250A06R-IS45HN09C-CF — 3D Model STP Download
250A06R-IS45HN09C-CF — 2D Model DXF Download
250A06R-IS45HN09C-CF — Line Drawing PDF Download
