600B08R-IS45HN09CF
600B08R-IS45HN09CF

600B08R-IS45HN09CF

UGC DOR6790770
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,820.00 CAD - $1,820.00 CAD
$1,820.00 CAD
$1,820.00 CAD - $1,820.00 CAD
$1,820.00 CAD

Vendu en lots de : 1

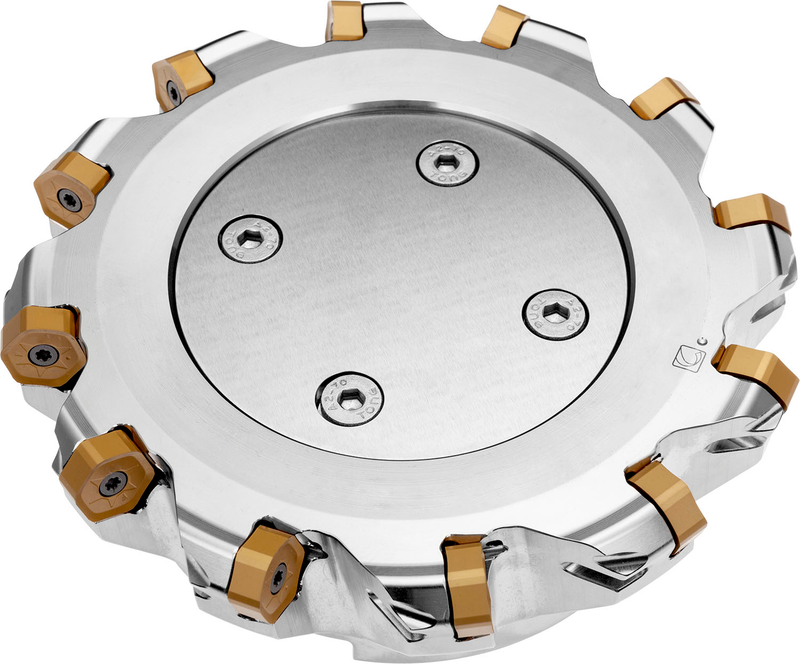

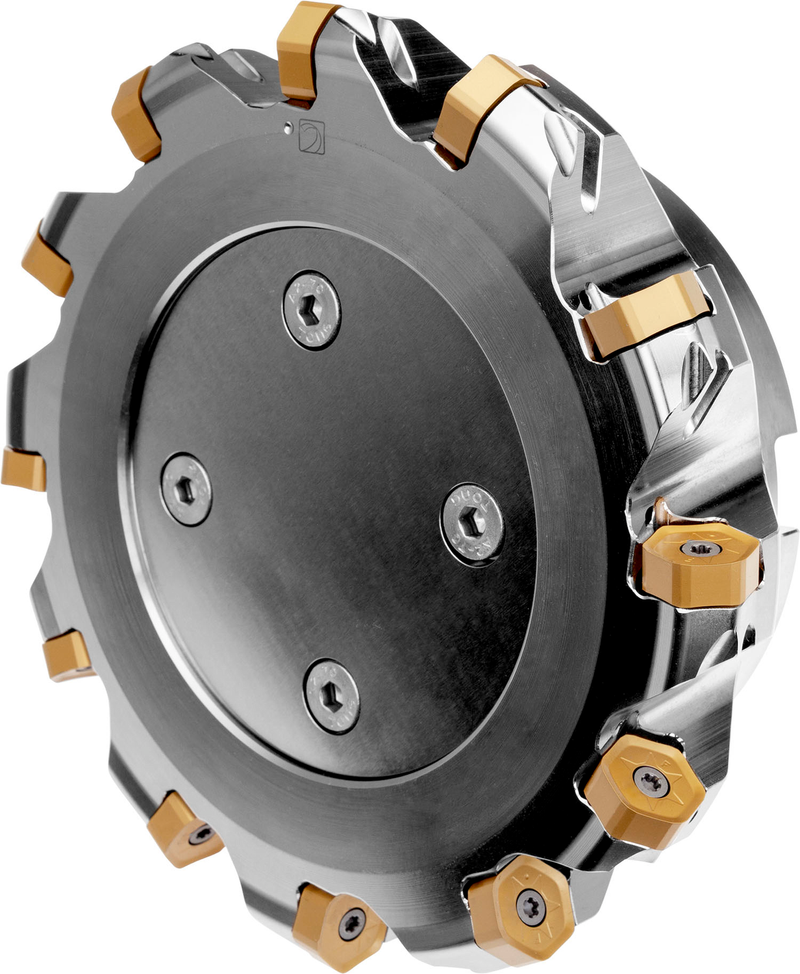

Fraise à surfacer à géométrie double négative qui utilise 8 plaquettes double face HNGX 0906AN... ou XNGX 0906AN..., diamètre de coupe de 6,000 à 6,461'' maximum avec un angle d'attaque de 45° et un alésage de raccordement de 2,000'' selon DIN 8030-B, une longueur de dépassement de 2,480'', avec arrosage par l'intérieur pour le surfaçage, l'usinage en rampe, le fraisage par plongée progressive et le chanfreinage avec une profondeur de coupe maximale de 0,197''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)600B08R-IS45HN09CF
Product Number6790770
Product FamilyISHN09C
Dimensions
Cutting Diameter — in (DC)6.0"
Cutting Diameter — mm (DC)152.4 mm
Functional Length — in (LF)2.48"
Functional Length — mm (LF)62.99 mm
Connection Dia. — in (DCON)2.0"
Connection Dia. — mm (DCON)50.8 mm
Number of Flutes (NOF)8
Tool Information
Tool DesignSHN09C
ShankFraise à surfacer-dresser DIN 8030 B
Direction of ToolD'accord
Through Coolant No
Reference Numbers
EDP Number6790770
EAN3603602987099
File Type Download
600B08R-IS45HN09CF — 3D Model STP Download
600B08R-IS45HN09CF — 2D Model DXF Download
