125E2R236C125-ISPD09-C
125E2R236C125-ISPD09-C
125E2R236C125-ISPD09-C

125E2R236C125-ISPD09-C

UGC DOR6792981
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$589.00 CAD - $589.00 CAD
$589.00 CAD
$589.00 CAD - $589.00 CAD
$589.00 CAD

Vendu en lots de : 1

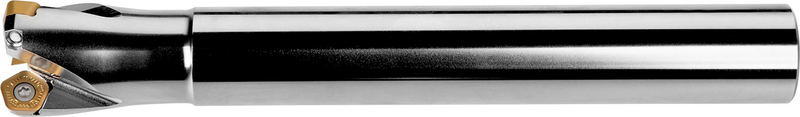

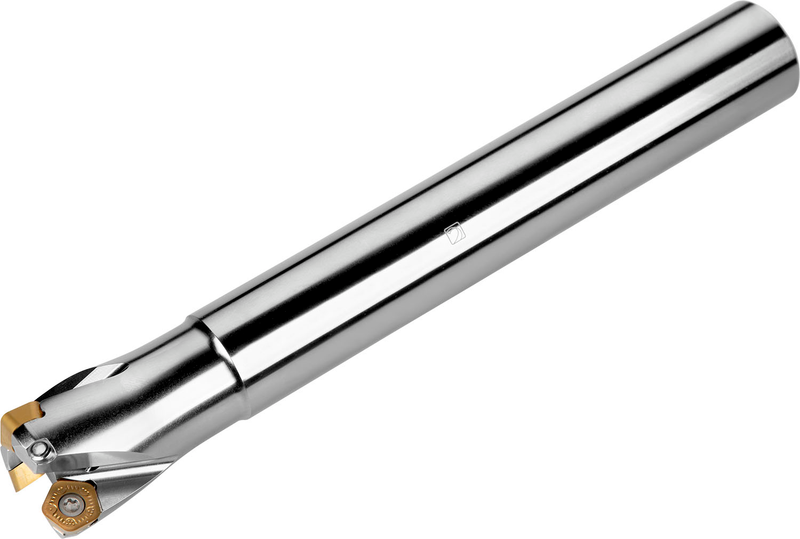

Fraise à avance élevée avec géométrie positive/négative qui utilise 2 plaquettes simple face PD.X 0905ZE.., PDKT 0905.. ou PDMW 0905.., diamètre de coupe 1,250'' avec angle d'attaque de 19° et queue cylindrique de 1,250'' selon DIN 1835A, longueur fonctionnelle de 2,362'' et longueur totale de 9,843'', arrosage interne pour le surfaçage avec une profondeur de coupe maximale de 0,079''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)125E2R236C125-ISPD09-C
Product Number6792981
Product FamilyISPD09

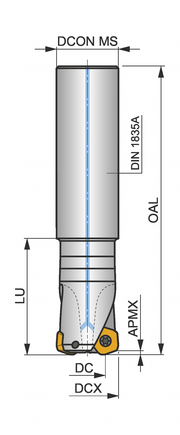

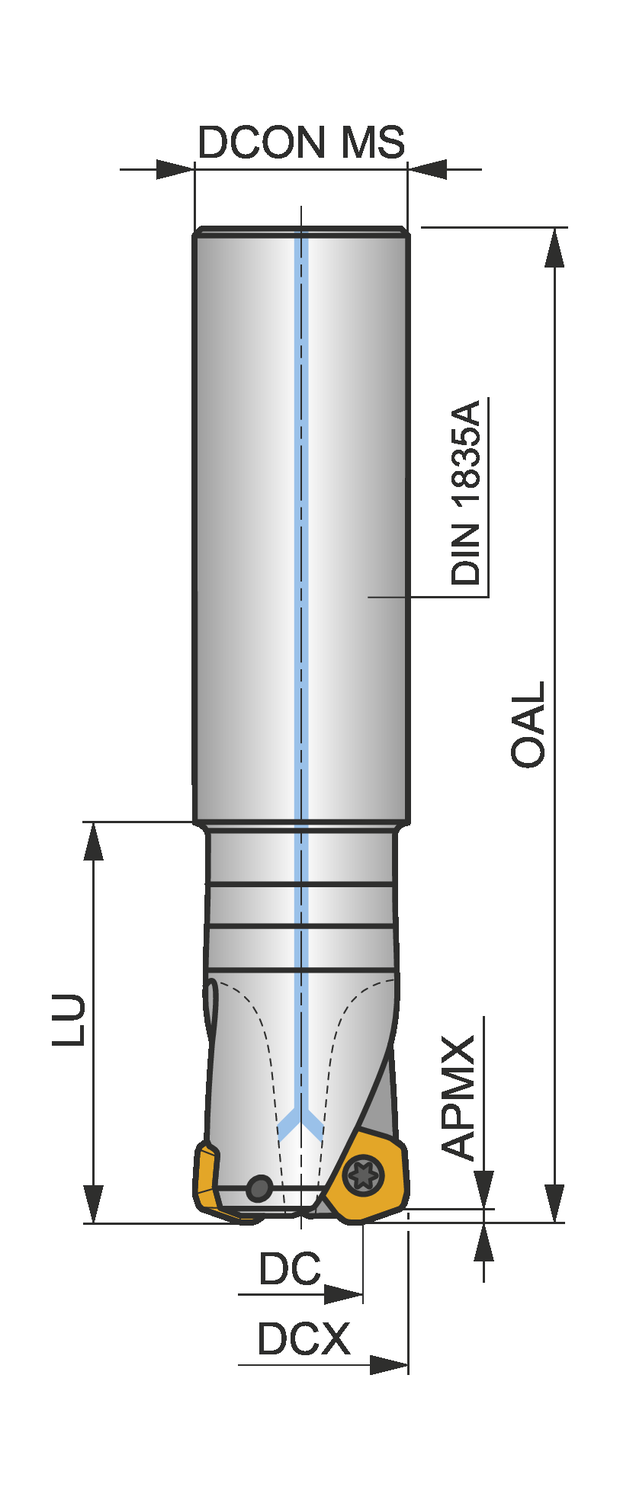

Dimensions
Cutting Diameter — in (DC)0.724"
Cutting Diameter — mm (DC)18.4 mm
Overall Length — in (OAL)9.843"
Overall Length — mm (OAL)250.0 mm
Usable Length — in (LU)2.362"
Usable Length — mm (LU)59.99 mm
Connection Dia. — in (DCON)1.25"
Connection Dia. — mm (DCON)31.8 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignSPD09
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6792981
EAN3603602988096
File Type Download
125E2R236C125-ISPD09-C — 3D Model STP Download
125E2R236C125-ISPD09-C — 2D Model DXF Download
125E2R236C125-ISPD09-C — Line Drawing PDF Download
