400A06R-IS19PD09-C
400A06R-IS19PD09-C
400A06R-IS19PD09-C

400A06R-IS19PD09-C

UGC DOR6792984
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,216.00 CAD - $1,216.00 CAD
$1,216.00 CAD
$1,216.00 CAD - $1,216.00 CAD
$1,216.00 CAD

Vendu en lots de : 1

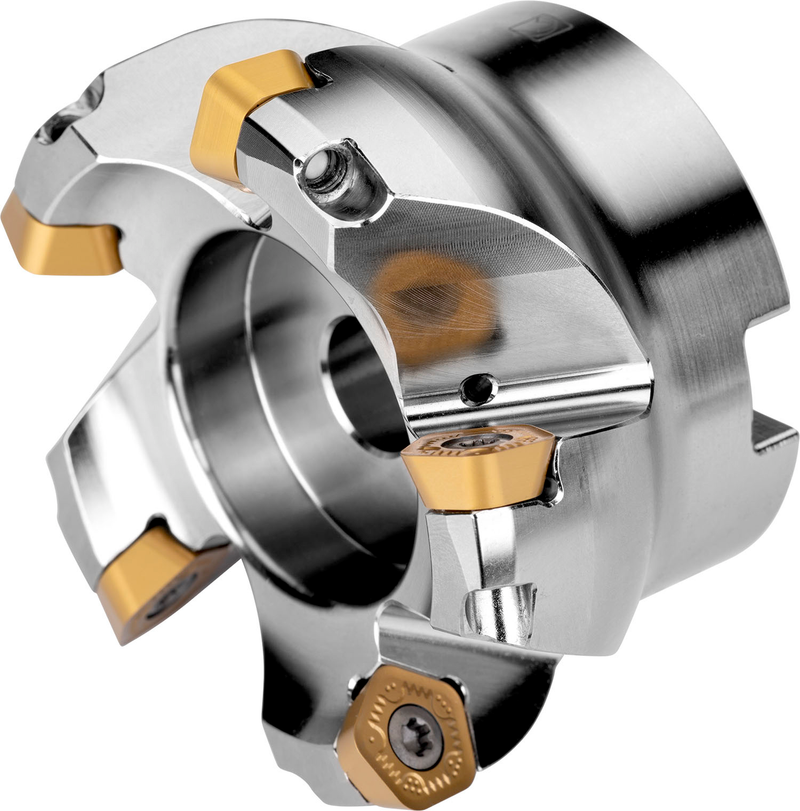

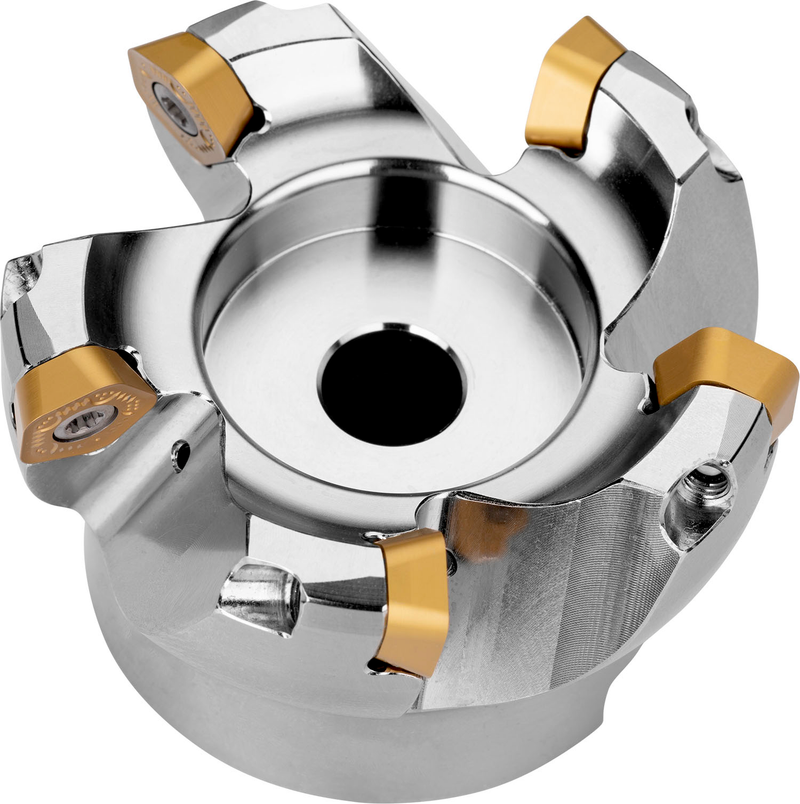

Fraise à avance rapide à géométrie positive/négative qui utilise 6 plaquettes simple face PD.X 09, PDKT 09 ou PDMW 09, diamètre de coupe 4.000'' avec angle d'attaque de 19° et alésage de raccordement de 1.500'' selon DIN 8030-A, longueur de dépassement de 1.969'', arrosage interne pour le surfaçage avec une profondeur de coupe maximale de .079''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)400A06R-IS19PD09-C
Product Number6792984
Product FamilyISPD09

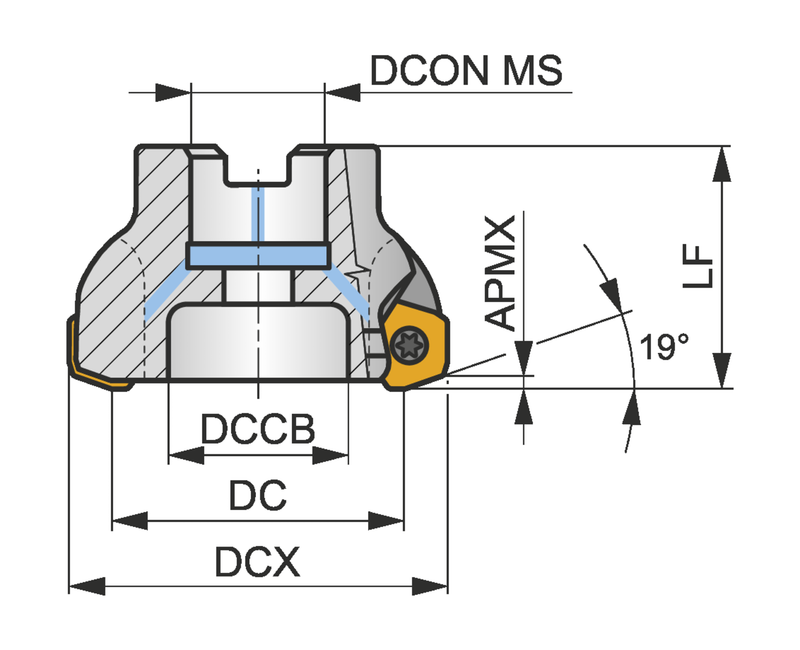

Dimensions
Cutting Diameter — in (DC)3.431"
Cutting Diameter — mm (DC)87.1 mm
Functional Length — in (LF)1.969"
Functional Length — mm (LF)50.01 mm
Connection Dia. — in (DCON)1.5"
Connection Dia. — mm (DCON)38.1 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignSPD09
ShankFraise à surfacer-dresser DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6792984
EAN3603602988126
File Type Download
400A06R-IS19PD09-C — 3D Model STP Download
400A06R-IS19PD09-C — 2D Model DXF Download
400A06R-IS19PD09-C — Line Drawing PDF Download
