400A05R-IS57PN13
400A05R-IS57PN13
400A05R-IS57PN13

400A05R-IS57PN13

UGC DOR6792988
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,302.00 CAD - $1,302.00 CAD
$1,302.00 CAD
$1,302.00 CAD - $1,302.00 CAD
$1,302.00 CAD

Vendu en lots de : 1

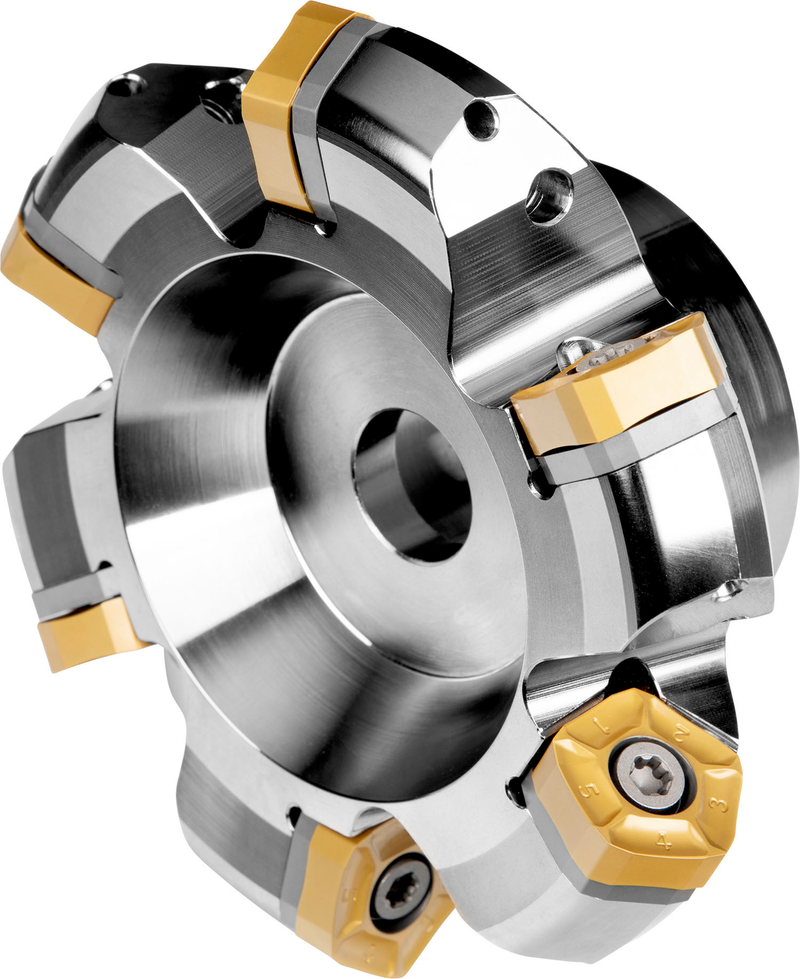

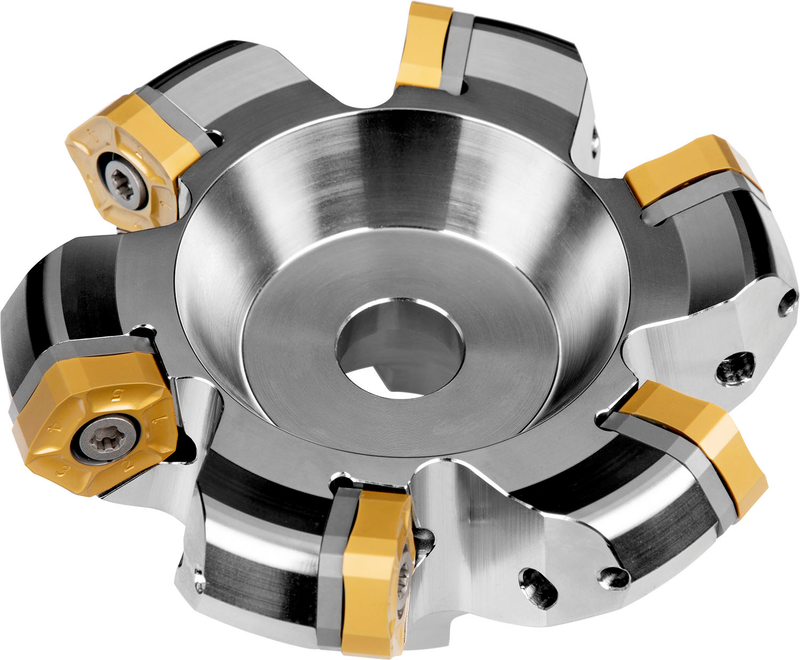

Fraise à surfacer à géométrie double négative qui utilise 5 plaquettes double-face PNMU 1308DN... ou PNMQ 1308DN..., diamètre de coupe de 4 000 à 4 629'' maximum avec un angle d'attaque de 57° et un alésage de raccordement de 1 500'' selon DIN 8030-A, longueur en porte-à-faux de 1 969'' pour le surfaçage avec une profondeur de coupe maximale de 0,394''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)400A05R-IS57PN13
Product Number6792988
Product FamilyISPN13

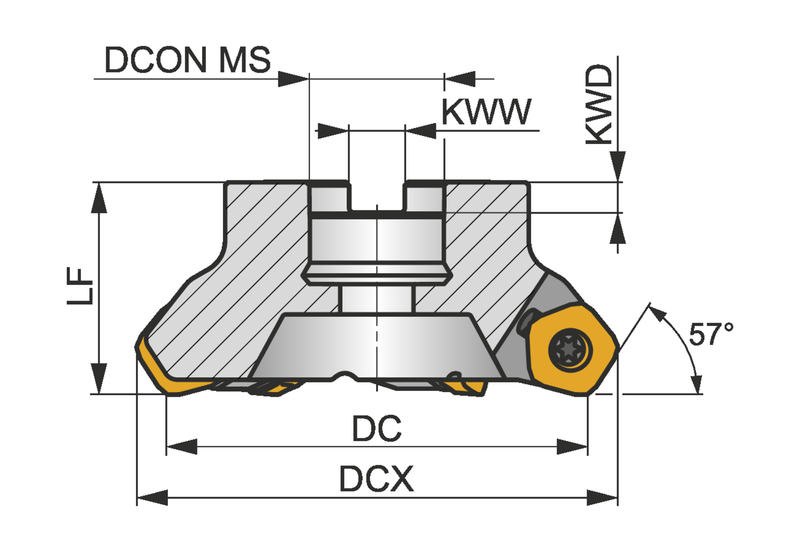

Dimensions
Cutting Diameter — in (DC)4.0"
Cutting Diameter — mm (DC)101.6 mm
Functional Length — in (LF)1.969"
Functional Length — mm (LF)50.01 mm
Connection Dia. — in (DCON)1.5"
Connection Dia. — mm (DCON)38.1 mm
Number of Flutes (NOF)5
Tool Information
Tool DesignSPN13
ShankFraise à surfacer-planer DIN 8030 A
Direction of ToolD'accord
Reference Numbers
EDP Number6792988
EAN3603602988140
File Type Download
400A05R-IS57PN13 — 3D Model STP Download
400A05R-IS57PN13 — 2D Model DXF Download
400A05R-IS57PN13 — Line Drawing PDF Download
