600B08R-IS57PN13
600B08R-IS57PN13
600B08R-IS57PN13

600B08R-IS57PN13

UGC DOR6792990
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2,082.00 CAD - $2,082.00 CAD
$2,082.00 CAD
$2,082.00 CAD - $2,082.00 CAD
$2,082.00 CAD

Vendu en lots de : 1

Fraise à surfacer avec une géométrie double-négative utilisant 8 plaquettes double-face PNMU 1308DN... ou PNMQ 1308DN..., diamètre de coupe de 6,000 à 6,628'' maximum avec un angle d'attaque de 57° et un alésage de connexion de 2,000'' selon DIN 8030-B, longueur de dépassement de 2,480'' pour le surfaçage avec une profondeur de coupe maximale de 0,394''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)600B08R-IS57PN13
Product Number6792990
Product FamilyISPN13

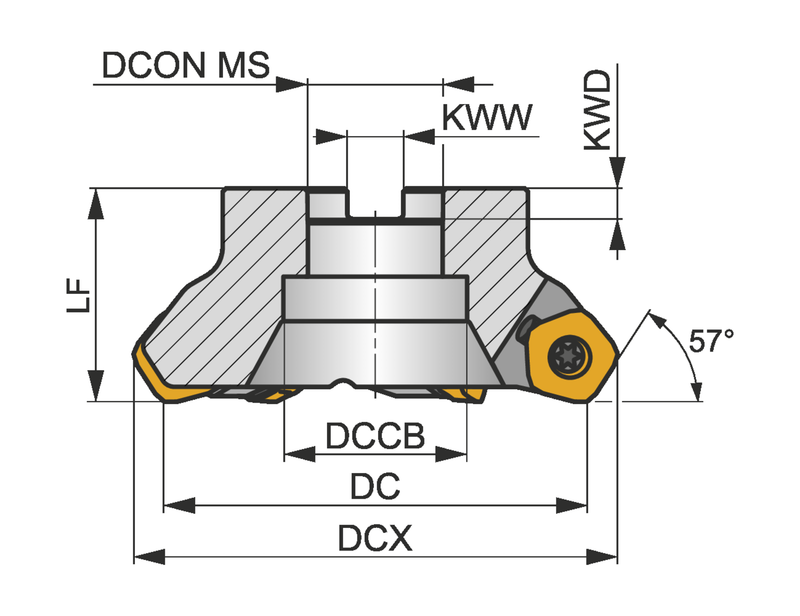

Dimensions
Cutting Diameter — in (DC)6.0"
Cutting Diameter — mm (DC)152.4 mm
Functional Length — in (LF)2.48"
Functional Length — mm (LF)62.99 mm
Connection Dia. — in (DCON)2.0"
Connection Dia. — mm (DCON)50.8 mm
Number of Flutes (NOF)8
Tool Information
Tool DesignSPN13
ShankFraise-scie DIN 8030 B
Direction of ToolD'accord
Reference Numbers
EDP Number6792990
EAN3603602988164
File Type Download
600B08R-IS57PN13 — 3D Model STP Download
600B08R-IS57PN13 — 2D Model DXF Download
600B08R-IS57PN13 — Line Drawing PDF Download
