1200C14R-IS57PN13
1200C14R-IS57PN13
1200C14R-IS57PN13

1200C14R-IS57PN13

UGC DOR6792992
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$5,153.00 CAD - $5,153.00 CAD
$5,153.00 CAD
$5,153.00 CAD - $5,153.00 CAD
$5,153.00 CAD

Vendu en lots de : 1

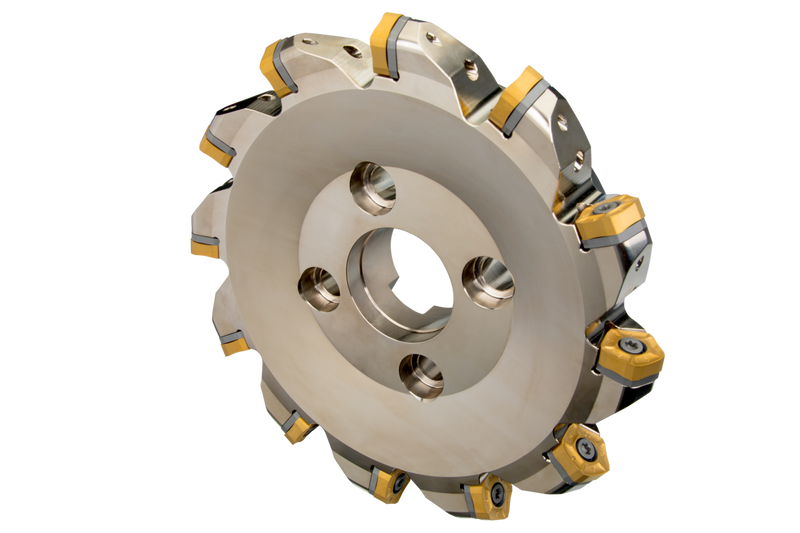

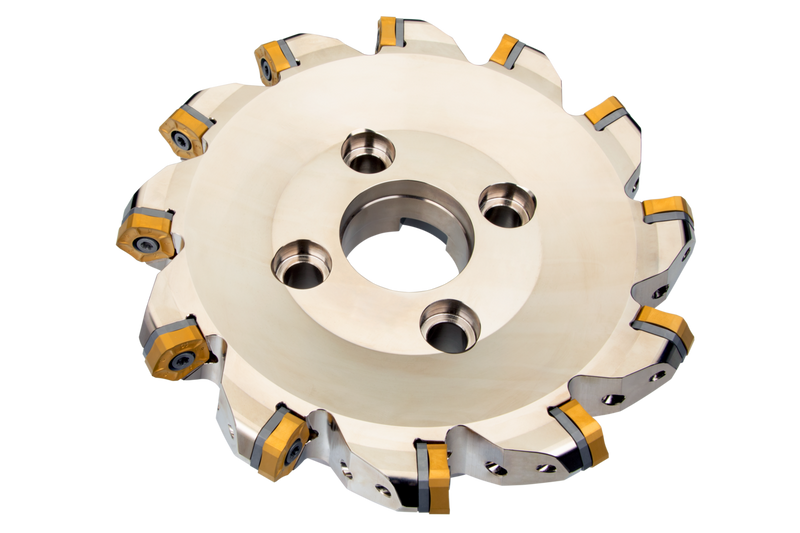

Fraise à surfacer à géométrie double négative qui utilise 14 plaquettes double face PNMU 1308DN... ou PNMQ 1308DN..., diamètre de coupe de 12.000 à 12.627'' maximum avec un angle d'attaque de 57° et un alésage de connexion de 2.500'' selon la norme DIN 8030-C, longueur de dépassement de 3.150'' pour le surfaçage avec une profondeur de coupe maximale de 0.394''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)1200C14R-IS57PN13
Product Number6792992
Product FamilyISPN13

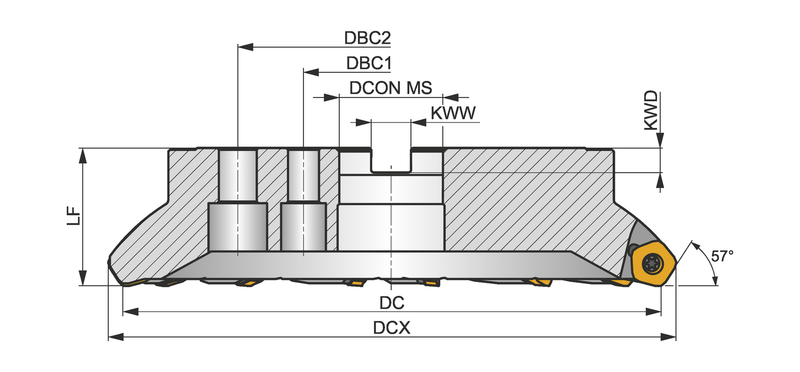

Dimensions
Cutting Diameter — in (DC)12.0"
Cutting Diameter — mm (DC)304.8 mm
Functional Length — in (LF)3.15"
Functional Length — mm (LF)80.01 mm
Connection Dia. — in (DCON)2.5"
Connection Dia. — mm (DCON)63.5 mm
Number of Flutes (NOF)14
Tool Information
Tool DesignSPN13
ShankFraise à surfacer-dresser DIN 8030 C
Direction of ToolD'accord
Reference Numbers
EDP Number6792992
EAN3603602988188
File Type Download
1200C14R-IS57PN13 — 3D Model STP Download
1200C14R-IS57PN13 — 2D Model DXF Download
1200C14R-IS57PN13 — Line Drawing PDF Download
