100A2R138M12-ISLN12-C
100A2R138M12-ISLN12-C
100A2R138M12-ISLN12-C

100A2R138M12-ISLN12-C

UGC DOR6792997
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$475.00 CAD - $475.00 CAD
$475.00 CAD
$475.00 CAD - $475.00 CAD
$475.00 CAD

Vendu en lots de : 1

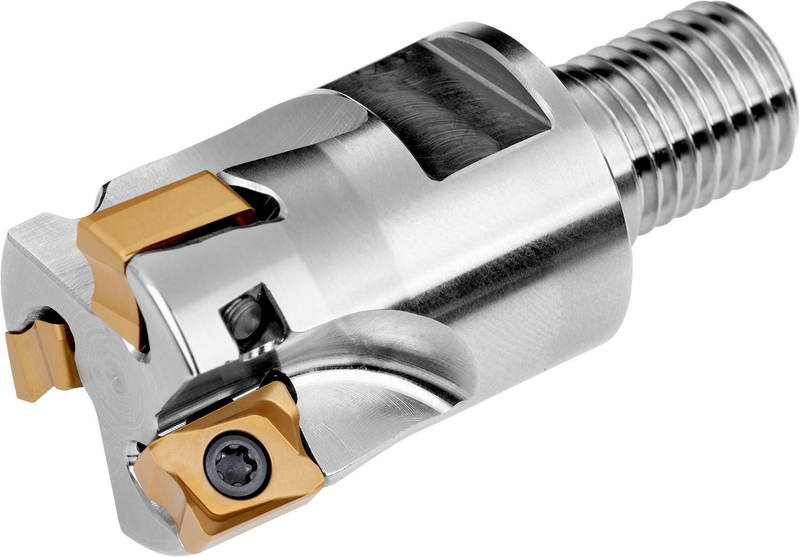

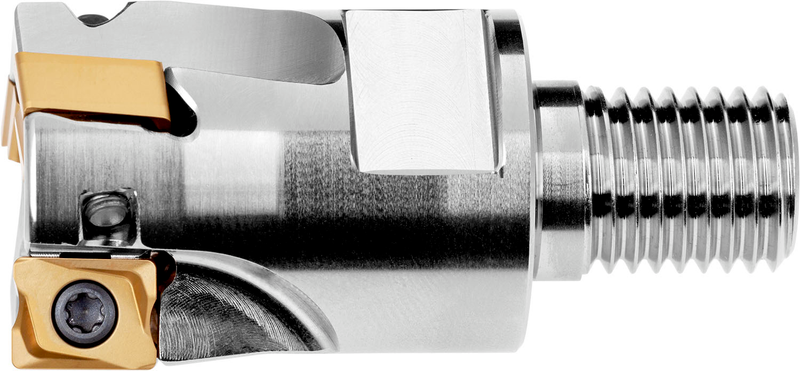

Fraise à épaule à géométrie double négative utilisant 2 plaquettes double face LNGX 1205.. ou LNGU 1205.., diamètre de coupe 1.000'', angle d'approche 90° et queue filetée M12 pour porte-outils modulaires standard, longueur en porte-à-faux 1.378'', arrosage interne pour le fraisage d'épaulements peu profonds, le fraisage de rainures peu profondes et le fraisage en plongée avec une profondeur de coupe maximale de 0.354''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)100A2R138M12-ISLN12-C
Product Number6792997
Product FamilyISLN12

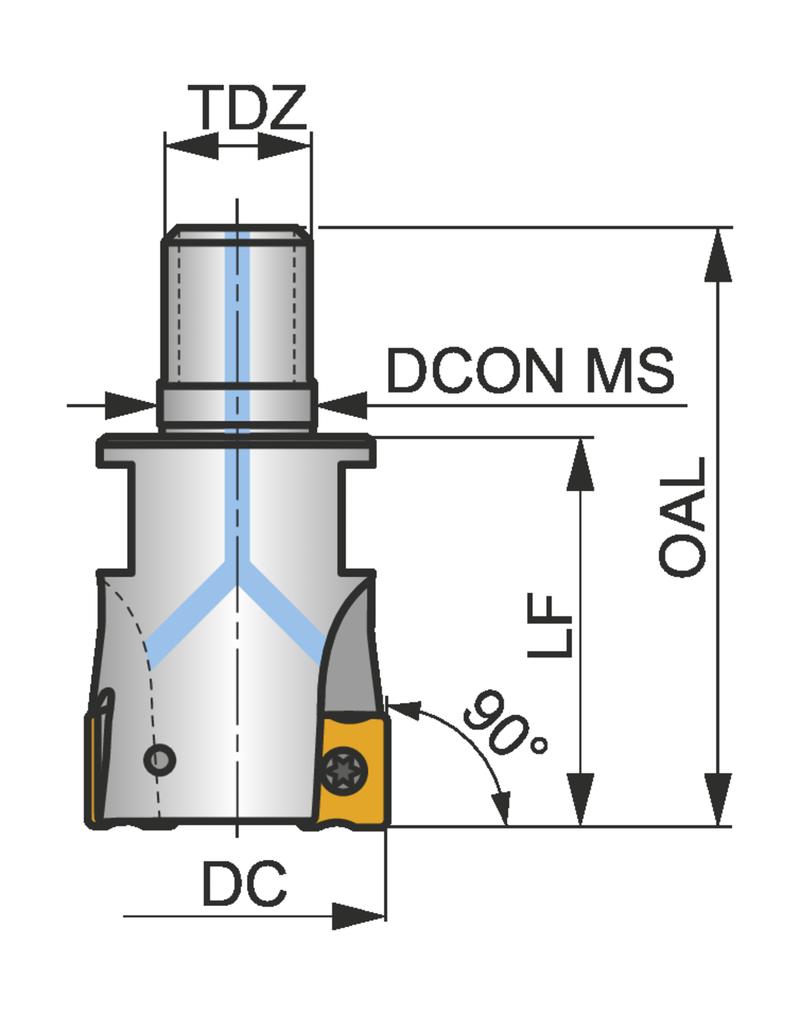

Dimensions
Cutting Diameter — in (DC)1.0"
Cutting Diameter — mm (DC)25.4 mm
Overall Length — in (OAL)2.244"
Overall Length — mm (OAL)57.0 mm
Functional Length — in (LF)1.378"
Functional Length — mm (LF)35.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)12.5 mm
Number of Flutes (NOF)2
Threading
Thread Diameter Size (TDZ)–
Tool Information
Tool DesignSLN12
ShankAccouplement fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6792997
EAN3603602988225
File Type Download
100A2R138M12-ISLN12-C — 3D Model STP Download
100A2R138M12-ISLN12-C — 2D Model DXF Download
100A2R138M12-ISLN12-C — Line Drawing PDF Download
