150A3R169M16-ISLN12-C
150A3R169M16-ISLN12-C
150A3R169M16-ISLN12-C

150A3R169M16-ISLN12-C

UGC DOR6793015
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$578.00 CAD - $578.00 CAD
$578.00 CAD
$578.00 CAD - $578.00 CAD
$578.00 CAD

Vendu en lots de : 1

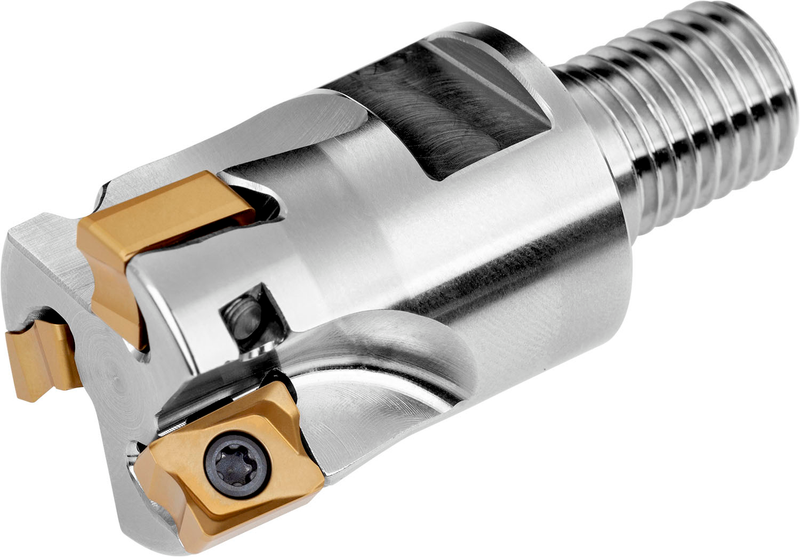

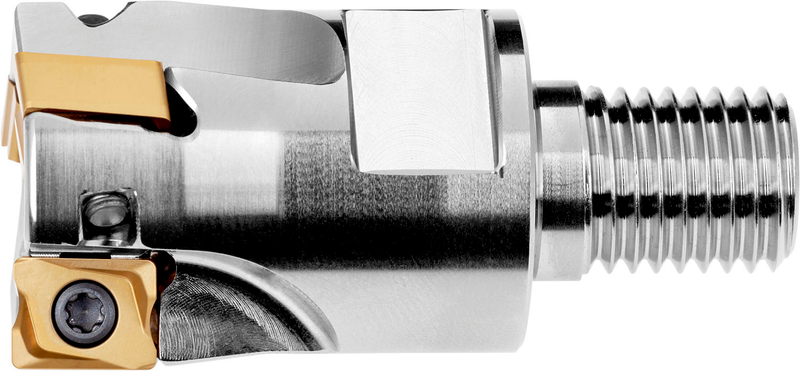

Fraise à épaule avec géométrie double négative qui utilise 3 plaquettes double face LNGX 1205.. ou LNGU 1205.., diamètre de coupe 1,500'' avec un angle d'attaque de 90° et une queue filetée M16 pour porte-outils modulaires standard, longueur de dépassement 1,693'', arrosage interne pour le fraisage d'épaulements peu profonds, le fraisage de rainures peu profondes et le fraisage en plongée avec une profondeur de coupe maximale de 0,354''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)150A3R169M16-ISLN12-C
Product Number6793015
Product FamilyISLN12

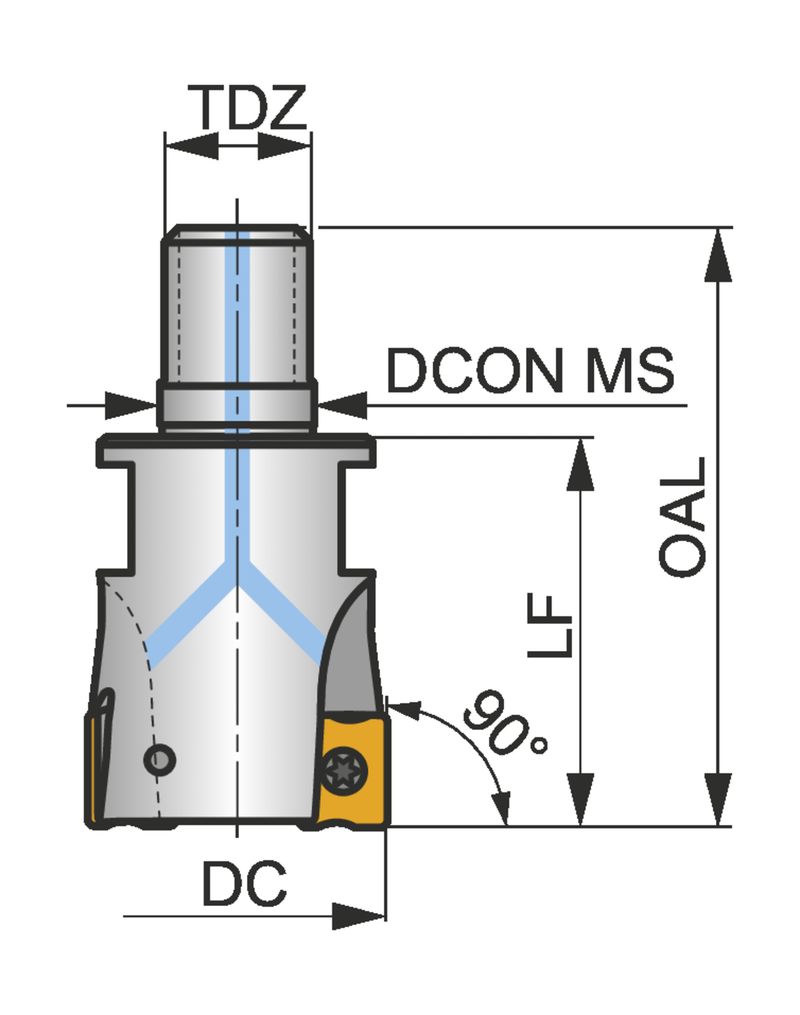

Dimensions
Cutting Diameter — in (DC)1.5"
Cutting Diameter — mm (DC)38.1 mm
Overall Length — in (OAL)2.598"
Overall Length — mm (OAL)66.0 mm
Functional Length — in (LF)1.693"
Functional Length — mm (LF)43.0 mm
Connection Dia. — in (DCON)0.669"
Connection Dia. — mm (DCON)17.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)–
Tool Information
Tool DesignSLN12
ShankRaccord fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6793015
EAN3603602988300
File Type Download
150A3R169M16-ISLN12-C — 3D Model STP Download
150A3R169M16-ISLN12-C — 2D Model DXF Download
150A3R169M16-ISLN12-C — Line Drawing PDF Download
