250A06R-IS90LN12-C
250A06R-IS90LN12-C
250A06R-IS90LN12-C

250A06R-IS90LN12-C

UGC DOR6793020
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$920.00 CAD - $920.00 CAD
$920.00 CAD
$920.00 CAD - $920.00 CAD
$920.00 CAD

Vendu en lots de : 1

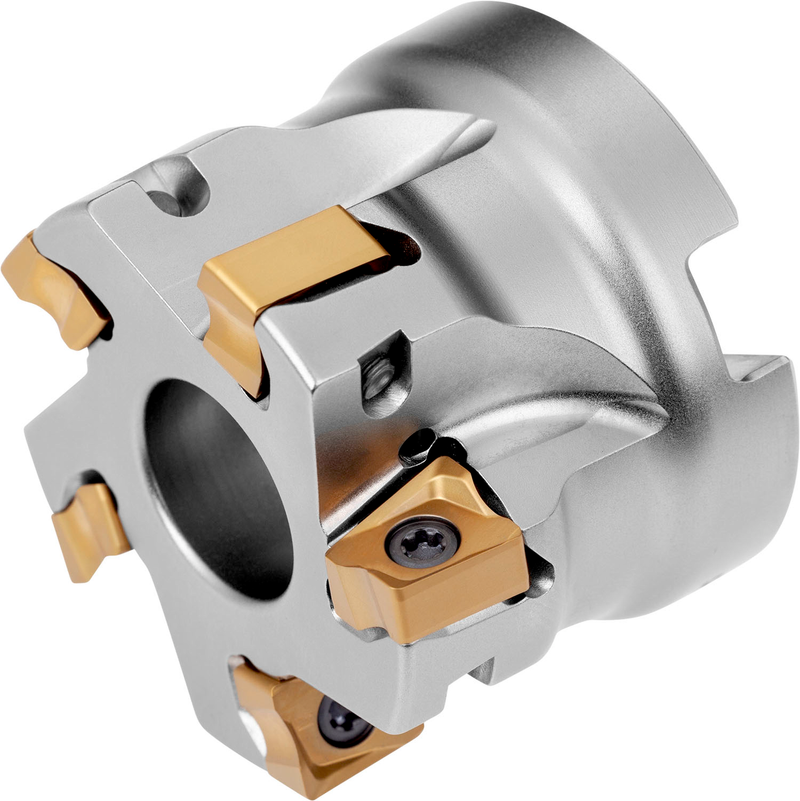

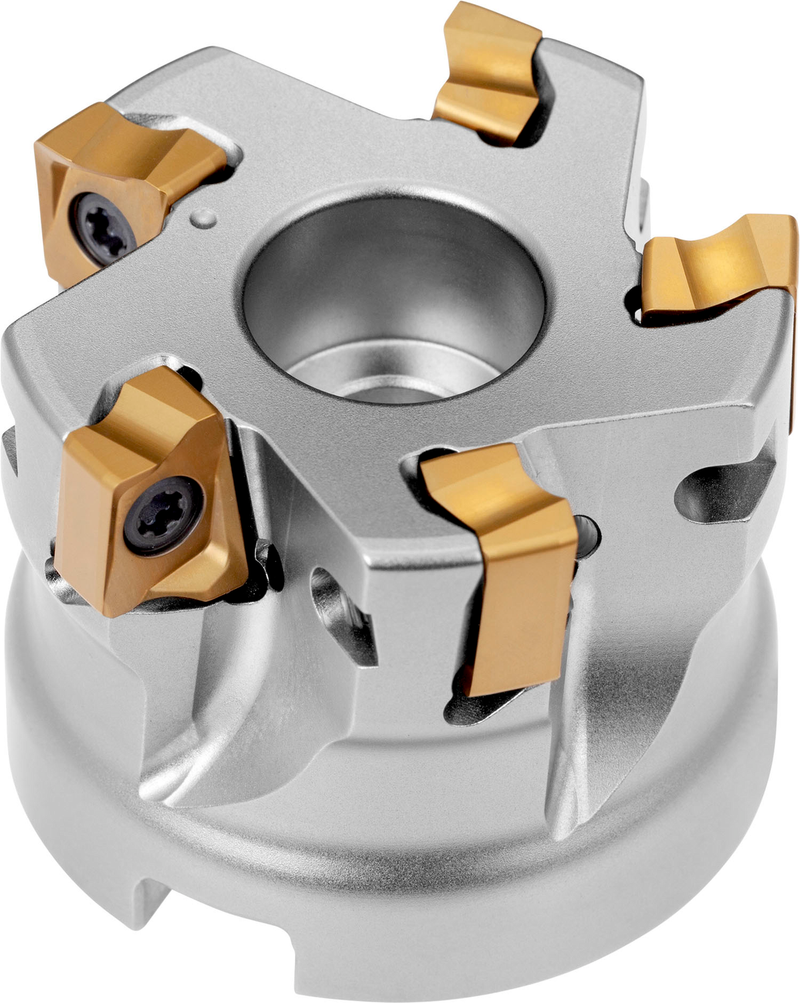

Fraise à épaule avec géométrie double négative qui utilise 6 plaquettes double face LNGX 1205... ou LNGU 1205..., diamètre de coupe 2,500" avec un angle d'attaque de 90° et un alésage de connexion de 0,750" selon DIN 8030-A, longueur de dépassement de 1,575", arrosage interne pour le fraisage d'épaulements peu profonds, le fraisage de rainures peu profondes et le fraisage en plongée avec une profondeur de coupe maximale de 0,354"

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)250A06R-IS90LN12-C
Product Number6793020
Product FamilyISLN12

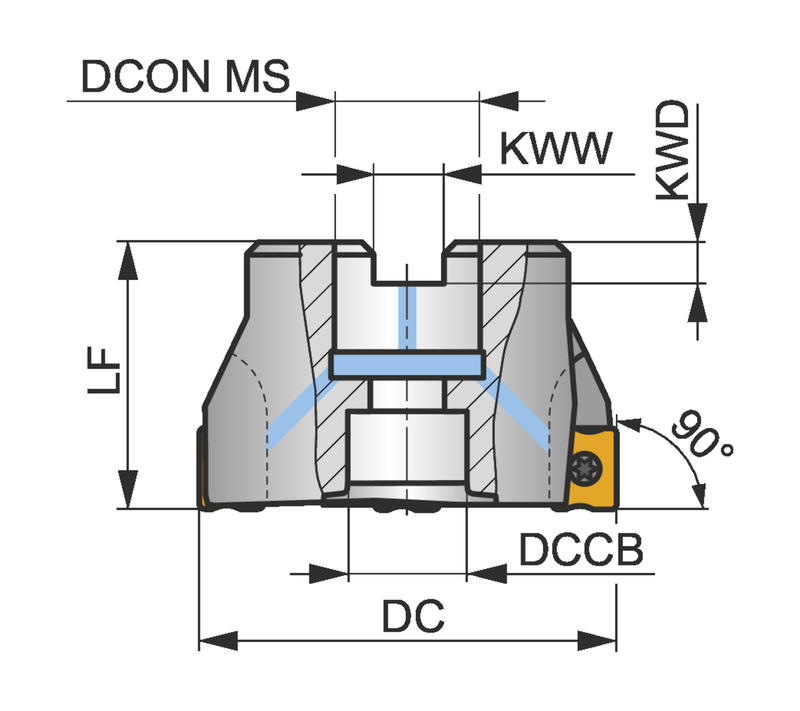

Dimensions
Cutting Diameter — in (DC)2.5"
Cutting Diameter — mm (DC)63.5 mm
Functional Length — in (LF)1.575"
Functional Length — mm (LF)40.01 mm
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.1 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignSLN12
ShankFraise coquille DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6793020
EAN3603602988355
File Type Download
250A06R-IS90LN12-C — 3D Model STP Download
250A06R-IS90LN12-C — 2D Model DXF Download
250A06R-IS90LN12-C — Line Drawing PDF Download
