500A09R-IS90LN12-C
500A09R-IS90LN12-C
500A09R-IS90LN12-C

500A09R-IS90LN12-C

UGC DOR6793026
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,330.00 CAD - $1,330.00 CAD
$1,330.00 CAD
$1,330.00 CAD - $1,330.00 CAD
$1,330.00 CAD

Vendu en lots de : 1

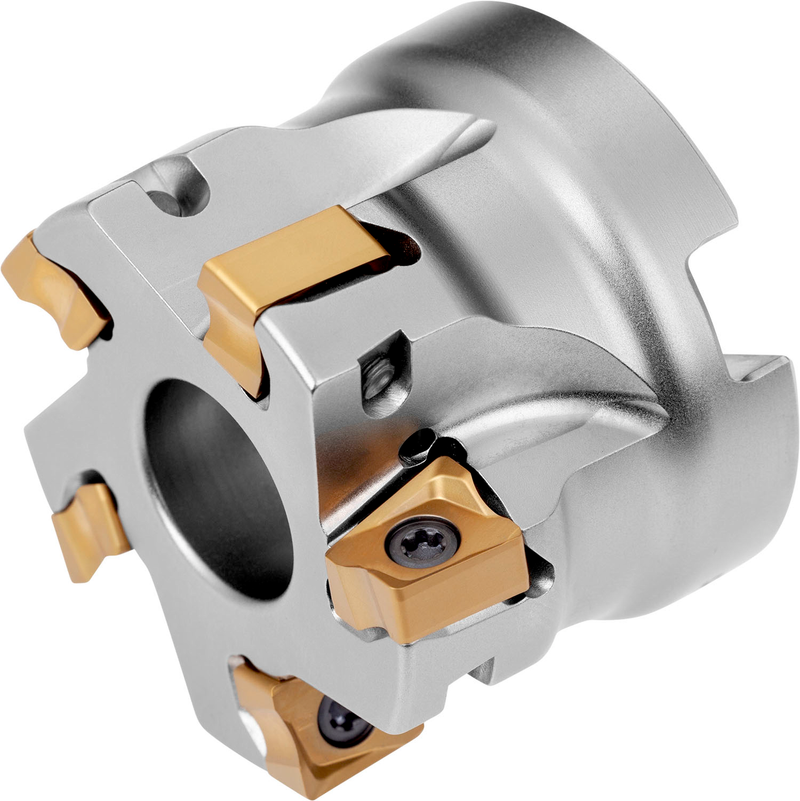

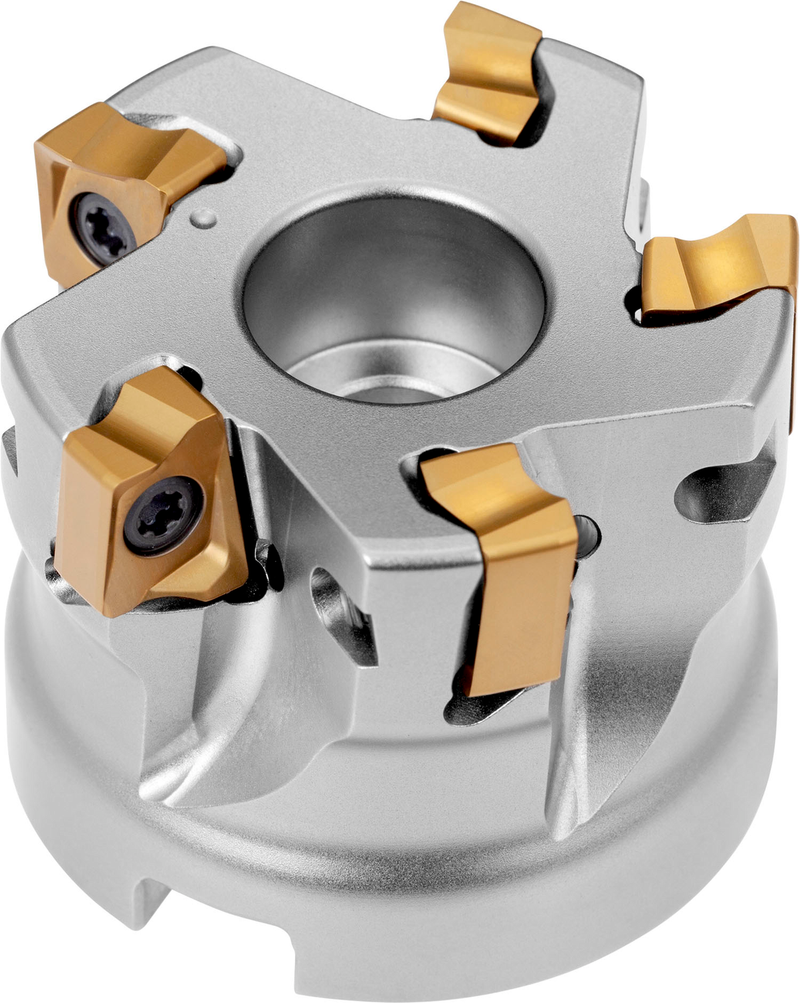

Fraise à épaule avec géométrie double négative qui utilise 9 plaquettes double face LNGX 1205... ou LNGU 1205..., diamètre de coupe 5.000'' avec angle d'attaque de 90° et alésage de connexion de 1.500'' selon DIN 8030-A, longueur en porte-à-faux de 2.480'', arrosage central pour le surfaçage à épaulement peu profond, le rainurage peu profond et le fraisage en plongée avec une profondeur de coupe maximale de .354''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)500A09R-IS90LN12-C
Product Number6793026
Product FamilyISLN12

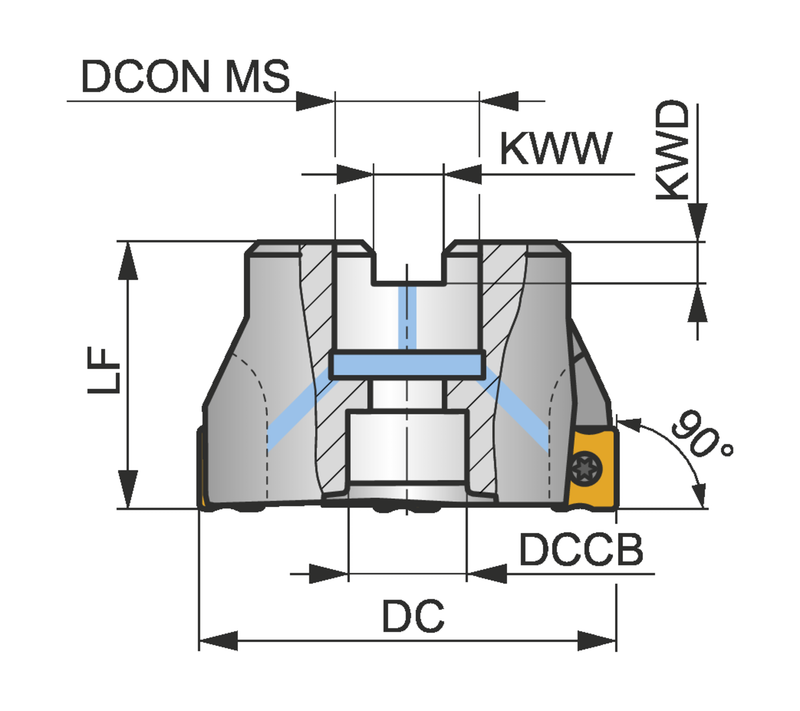

Dimensions
Cutting Diameter — in (DC)5.0"
Cutting Diameter — mm (DC)127.0 mm
Functional Length — in (LF)2.48"
Functional Length — mm (LF)62.99 mm
Connection Dia. — in (DCON)1.5"
Connection Dia. — mm (DCON)38.1 mm
Number of Flutes (NOF)9
Tool Information
Tool DesignSLN12
ShankFraise cloche DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6793026
EAN3603602988416
File Type Download
500A09R-IS90LN12-C — 3D Model STP Download
500A09R-IS90LN12-C — 2D Model DXF Download
500A09R-IS90LN12-C — Line Drawing PDF Download
