125A3R130C125-ISAD16E-C
125A3R130C125-ISAD16E-C
125A3R130C125-ISAD16E-C

125A3R130C125-ISAD16E-C

UGC DOR6798446
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$370.00 CAD - $370.00 CAD
$370.00 CAD
$370.00 CAD - $370.00 CAD
$370.00 CAD

Vendu en lots de : 1

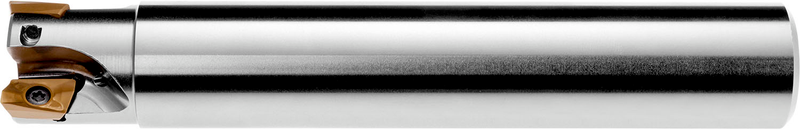

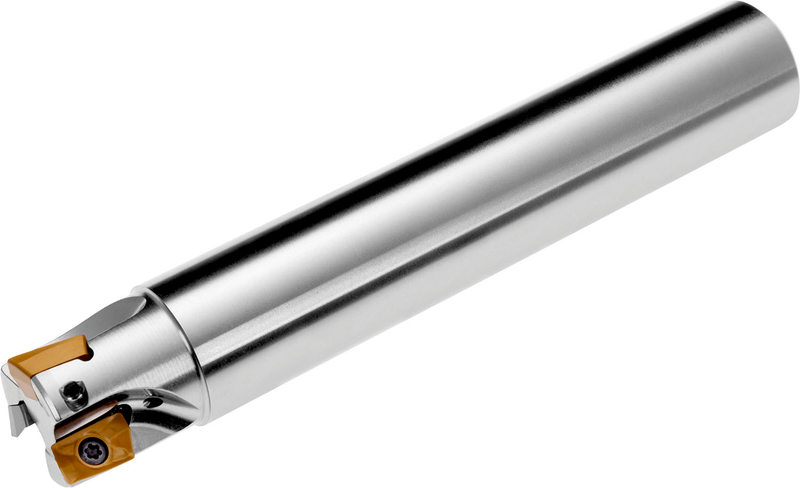

Fraise à épaulement à géométrie positive/négative qui utilise 3 plaquettes simple face ADMX 1606.. ou ADEX 1606.., diamètre de coupe de 1.250'' avec un angle d'attaque de 90° et une queue cylindrique de 1.250'' selon DIN 1835A, longueur fonctionnelle de 1.300'' et longueur totale de 7.677'', arrosage central pour le fraisage en plongée, le fraisage d'épaulements peu profonds, le fraisage de rainures peu profondes, l'interpolation hélicoïdale, le fraisage en hélice, le fraisage en plongée et le fraisage en plongée progressif avec une profondeur de coupe maximale de .512''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)125A3R130C125-ISAD16E-C
Product Number6798446
Product FamilyISAD16E

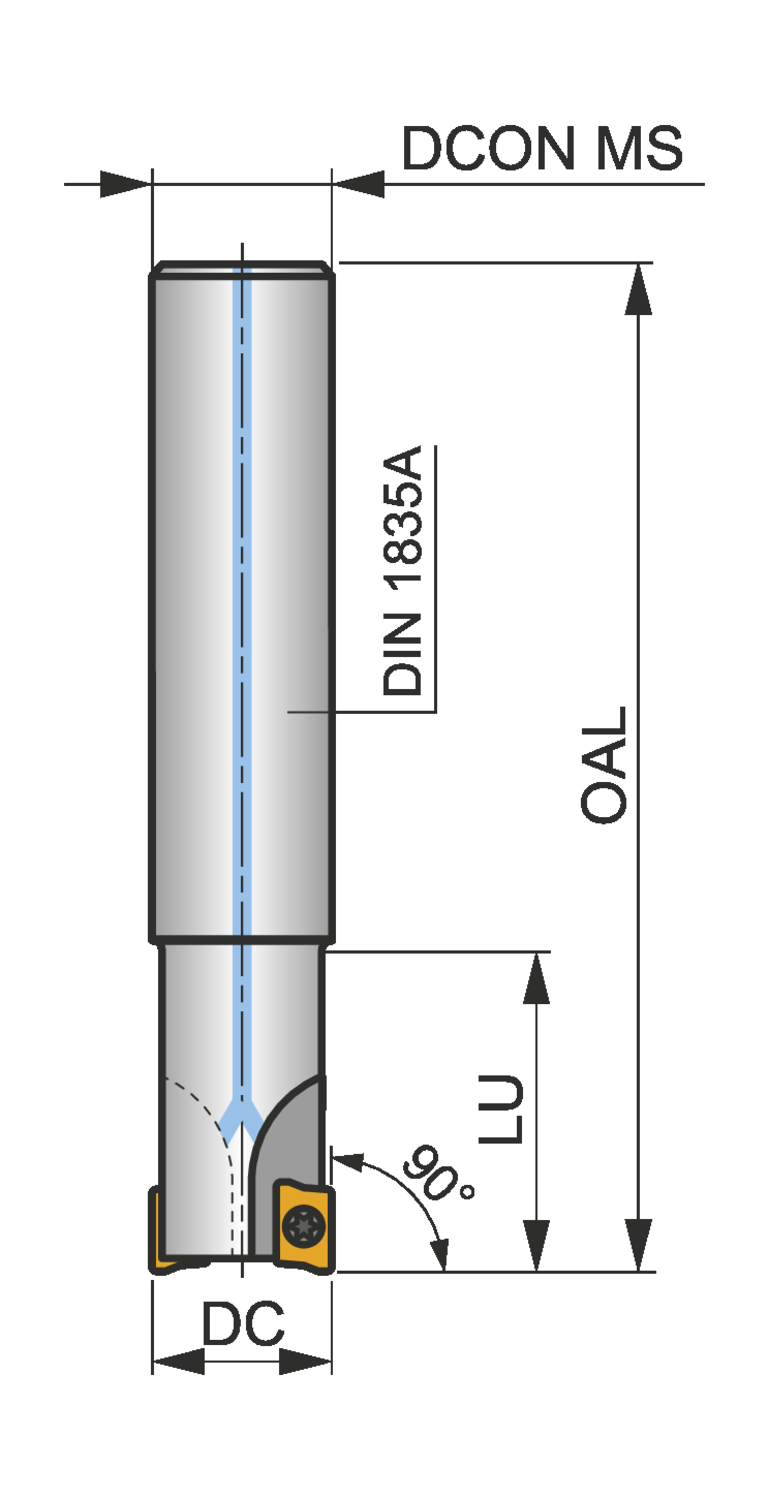

Dimensions
Cutting Diameter — in (DC)1.25"
Cutting Diameter — mm (DC)31.8 mm
Overall Length — in (OAL)7.677"
Overall Length — mm (OAL)195.0 mm
Usable Length — in (LU)1.3"
Usable Length — mm (LU)33.02 mm
Connection Dia. — in (DCON)1.25"
Connection Dia. — mm (DCON)31.8 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignSAD16E
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6798446
EAN3603602991119
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Utilisation possible
File Type Download
125A3R130C125-ISAD16E-C — 3D Model STP Download
125A3R130C125-ISAD16E-C — 2D Model DXF Download
125A3R130C125-ISAD16E-C — Line Drawing PDF Download
