CNMX 6-10SN-TF:T9325
CNMX 6-10SN-TF:T9325

CNMX 6-10SN-TF:T9325

UGC DOR6798528
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$43.57 CAD - $43.57 CAD
$43.57 CAD
$43.57 CAD - $43.57 CAD
$43.57 CAD

Vendu en lots de : 10

Plaquette négative spéciale pour tournage, rhomboïde à 80° avec diamètre de cercle inscrit de 3/4", épaisseur de 0,433", rayon de bec de 5/32", précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux TF avec arêtes de coupe arrondies à facette, en nuance T9325, un carbure WC-Co à gradient fonctionnel avec revêtement MT-CVD dans la plage ISO P15-P35, pour l'usinage lourd à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMX 6-10SN-TF:T9325
Product Name (ISO)CNMX 191140SN-TF:T9325
GradeT9325
Chipbreaker (CBMD)TF
Product Number6798528
Product FamilyCNMX 19

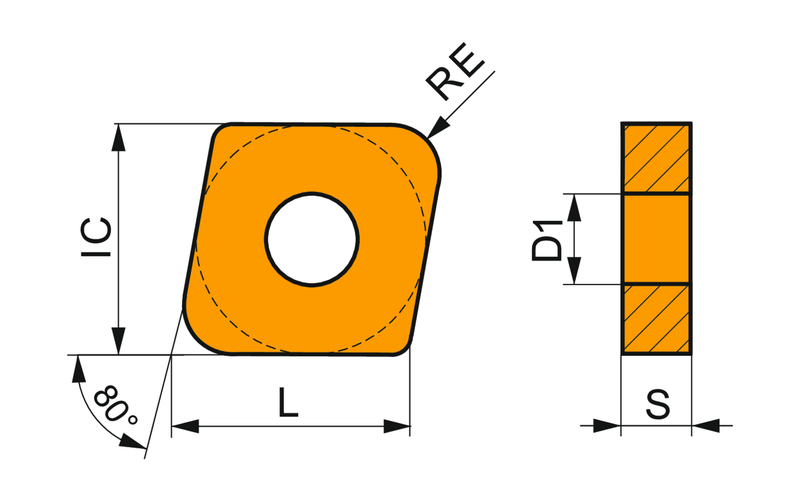

Insert Geometry
Insert DesignCNMX 19
Insert Shape Code (SC)C - angle rhombique 80°
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.433"
Insert Thickness — mm (S)11.0 mm
Corner Radius — in (RE)0.157"
Corner Radius — mm (RE)4 mm
Depth of Cut Max — in (APMX)0.276"
Depth of Cut Max — mm (APMX)7.0 mm
Tool Information
Reference Numbers
EDP Number6798528
EAN3603602991522
File Type Download
CNMX 6-10SN-TF:T9325 — Line Drawing PDF Download
