KTP-CANR 1907

KTP-CANR 1907

UGC DOR6798542
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$385.00 CAD - $385.00 CAD
$385.00 CAD
$385.00 CAD - $385.00 CAD
$385.00 CAD

Vendu en lots de : 1

Cartouche modulaire d'outil de tournage à levier pour loger un insert négatif en forme de losange de 80° avec un diamètre de cercle inscrit de 19,05 mm, de 7,94 mm d'épaisseur (désignation ISO CNMX 1907..), pour l'usinage des roues, à assembler avec DKTR 5055 X (A1/A2) pour le tournage conique, le tournage en bout sans épaulement et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)KTP-CANR 1907
Product Number6798542
Product FamilyKTP-CAN(DR)
Dimensions
Functional Length — in (LF)1.693"
Functional Length — mm (LF)43.0 mm
Tool Information
Reference Numbers
EDP Number6798542
EAN3603602991669
File Type Download

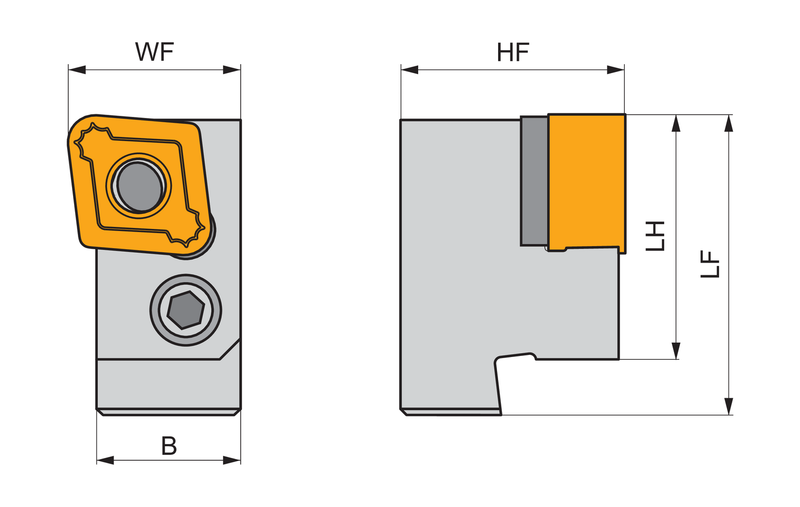

KTP-CANR 1907 — Line Drawing PDF Download
