125A07R-S90LN12-C
125A07R-S90LN12-C
125A07R-S90LN12-C

125A07R-S90LN12-C

UGC DOR6798612
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,236.00 CAD - $1,236.00 CAD
$1,236.00 CAD
$1,236.00 CAD - $1,236.00 CAD
$1,236.00 CAD

Vendu en lots de : 1

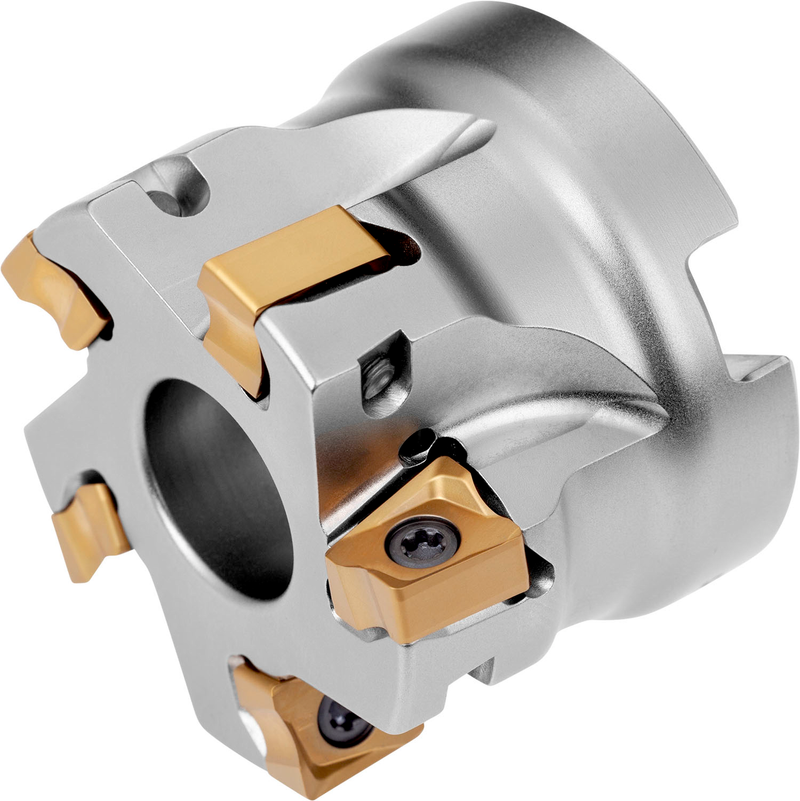

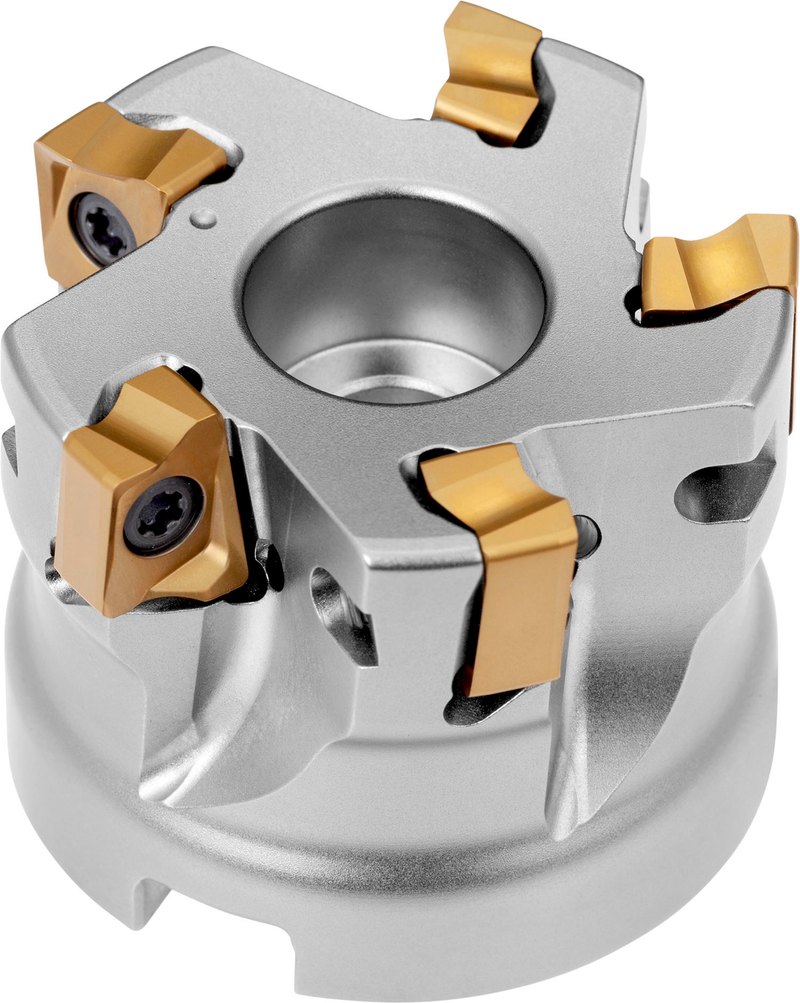

Fraise à épaulement à géométrie double-négative utilisant 7 plaquettes double-face LNGX 1205.. ou LNGU 1205.., diamètre de coupe 125mm avec angle d'attaque de 90° et alésage de raccordement de 40mm selon DIN 8030-A, longueur de dépassement 63mm, arrosage central et pas différentiel pour le fraisage d'épaulements peu profonds, le fraisage de rainures peu profondes et le fraisage en plongée avec une profondeur de coupe maximale de 9.0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)125A07R-S90LN12-C
Product Number6798612
Product FamilySLN12
Insert Geometry
Depth of Cut Max — mm (APMX)9.0 mm

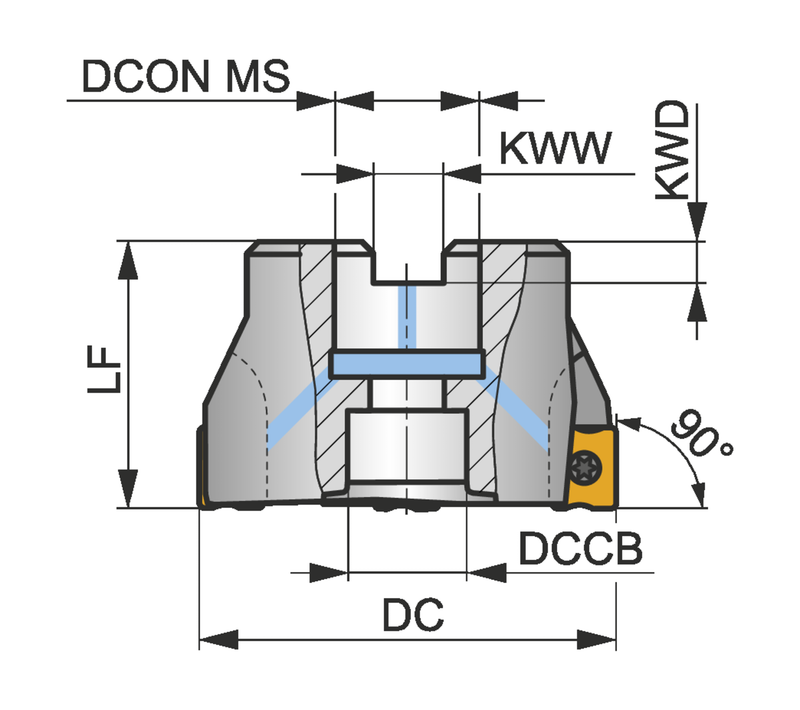

Dimensions
Cutting Diameter — in (DC)4.921"
Cutting Diameter — mm (DC)125.0 mm
Functional Length — mm (LF)63.0 mm
Connection Dia. — in (DCON)1.575"
Connection Dia. — mm (DCON)40.0 mm
Number of Flutes (NOF)7
Tool Information
Tool DesignSLN12
ShankFraise cloche DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6798612
EAN3603602992505
File Type Download
125A07R-S90LN12-C — 3D Model STP Download
125A07R-S90LN12-C — 2D Model DXF Download
125A07R-S90LN12-C — Line Drawing PDF Download
