125A09R-S90LN12-C
125A09R-S90LN12-C
125A09R-S90LN12-C

125A09R-S90LN12-C

UGC DOR6798613
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,330.00 CAD - $1,330.00 CAD
$1,330.00 CAD
$1,330.00 CAD - $1,330.00 CAD
$1,330.00 CAD

Vendu en lots de : 1

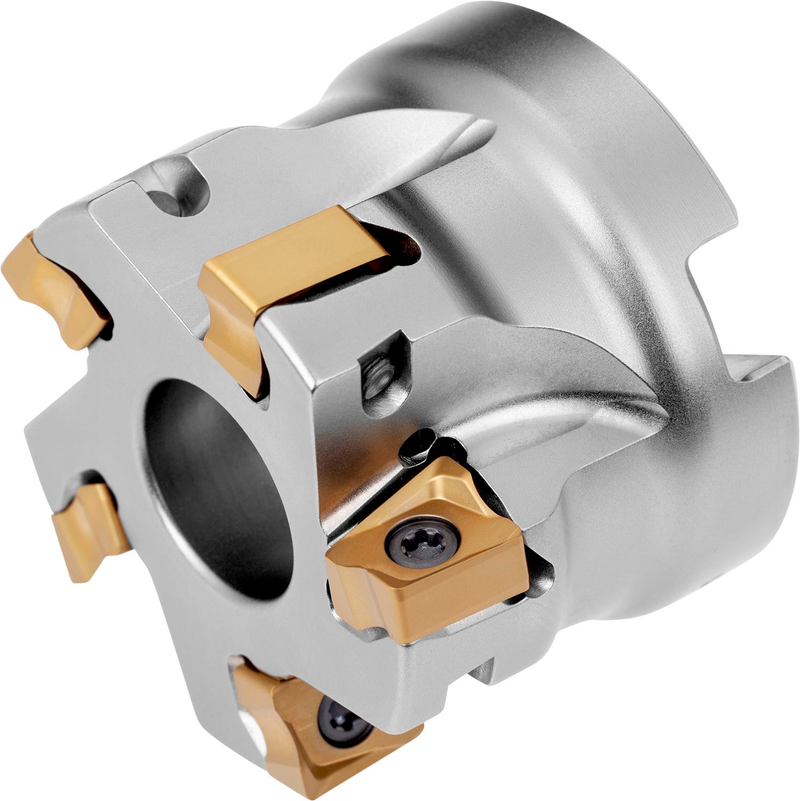

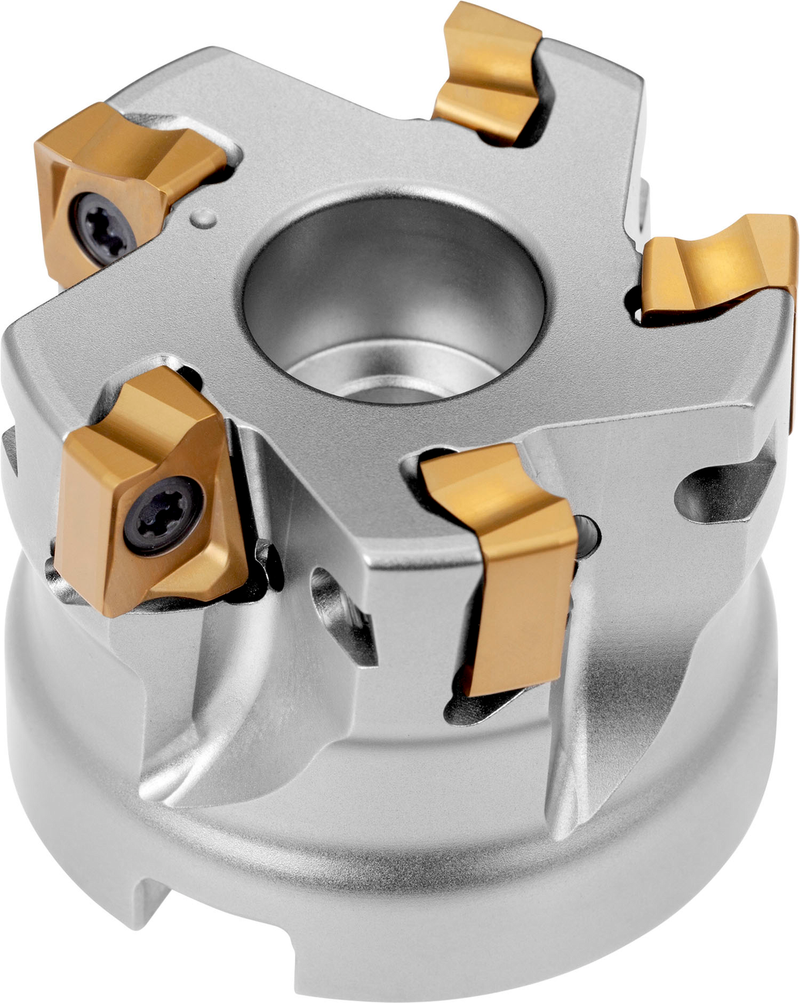

Fraise à épaule de géométrie double négative qui utilise 9 plaquettes double-face LNGX 1205.. ou LNGU 1205.., diamètre de coupe de 125mm avec un angle d'attaque de 90° et un alésage de connexion de 40mm selon DIN 8030-A, une longueur de dépassement de 63mm, arrosage central et pas différentiel pour le fraisage d'épaulement peu profond, le fraisage de rainure peu profond et le fraisage en plongée avec une profondeur de coupe maximale de 9.0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)125A09R-S90LN12-C
Product Number6798613
Product FamilySLN12
Insert Geometry
Depth of Cut Max — mm (APMX)9.0 mm

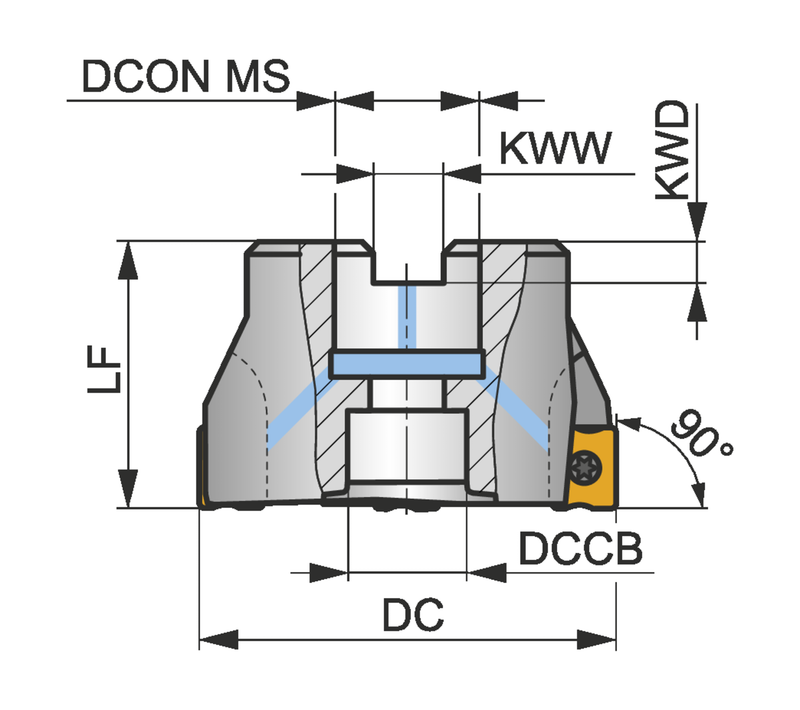

Dimensions
Cutting Diameter — in (DC)4.921"
Cutting Diameter — mm (DC)125.0 mm
Functional Length — mm (LF)63.0 mm
Connection Dia. — in (DCON)1.575"
Connection Dia. — mm (DCON)40.0 mm
Number of Flutes (NOF)9
Tool Information
Tool DesignSLN12
ShankFraise cloche DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6798613
EAN3603602992512
File Type Download
125A09R-S90LN12-C — 3D Model STP Download
125A09R-S90LN12-C — 2D Model DXF Download
125A09R-S90LN12-C — Line Drawing PDF Download
