18A4R019A18-SAD07D-C
18A4R019A18-SAD07D-C
18A4R019A18-SAD07D-C

18A4R019A18-SAD07D-C

UGC DOR6798632
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$304.00 CAD - $304.00 CAD
$304.00 CAD
$304.00 CAD - $304.00 CAD
$304.00 CAD

Vendu en lots de : 1

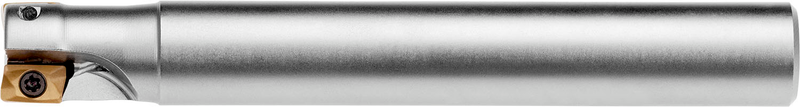

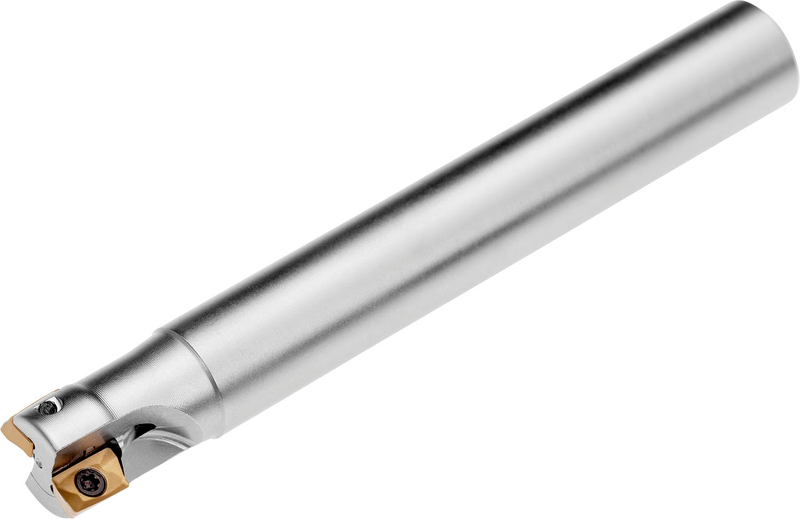

Fraise à épaule avec géométrie positive/négative qui utilise 4 plaquettes simple face ADMX 0702... ou ADEX 0702..., diamètre de coupe 18mm avec angle d'approche de 90° et queue cylindrique de 18mm selon DIN 1835A, longueur fonctionnelle de 19mm et longueur totale de 110mm, arrosage central et pas différentiel pour fraisage d'épaulement peu profond, fraisage de rainure peu profonde, usinage en rampe, fraisage hélicoïdal, fraisage en plongée et fraisage en plongée progressive avec une profondeur de coupe maximale de 5,0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)18A4R019A18-SAD07D-C
Product Number6798632
Product FamilySAD07D
Insert Geometry
Depth of Cut Max — mm (APMX)5.0 mm

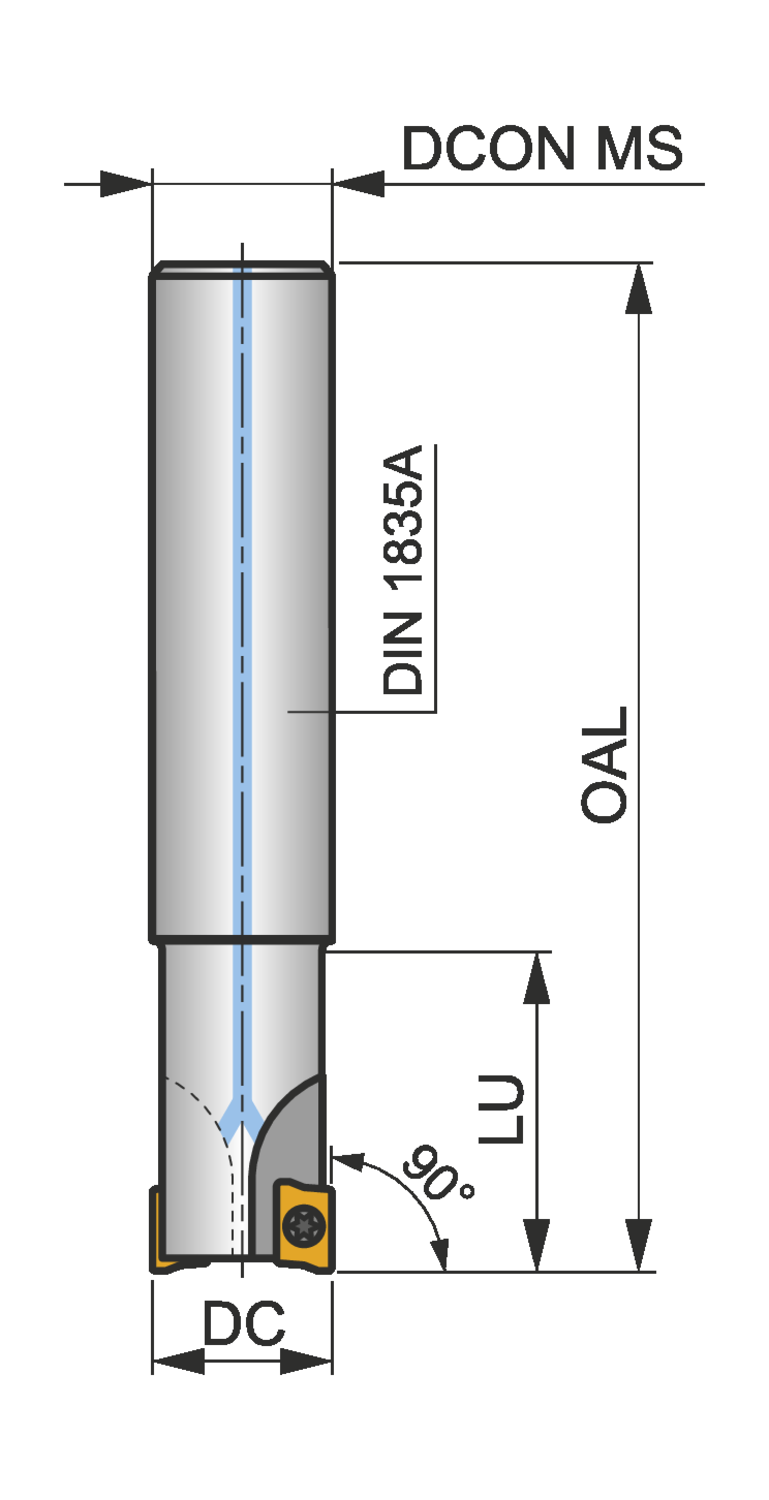

Dimensions
Cutting Diameter — in (DC)0.709"
Cutting Diameter — mm (DC)18.0 mm
Overall Length — in (OAL)4.331"
Overall Length — mm (OAL)110.0 mm
Usable Length — mm (LU)19.0 mm
Connection Dia. — in (DCON)0.709"
Connection Dia. — mm (DCON)18.0 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignSAD07D
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6798632
EAN3603602992703
File Type Download
18A4R019A18-SAD07D-C — 3D Model STP Download
18A4R019A18-SAD07D-C — 2D Model DXF Download
18A4R019A18-SAD07D-C — Line Drawing PDF Download
