25A5R024A25-SAD07D-C
25A5R024A25-SAD07D-C
25A5R024A25-SAD07D-C

25A5R024A25-SAD07D-C

UGC DOR6798635
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$353.00 CAD - $353.00 CAD
$353.00 CAD
$353.00 CAD - $353.00 CAD
$353.00 CAD

Vendu en lots de : 1

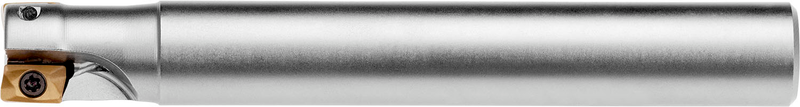

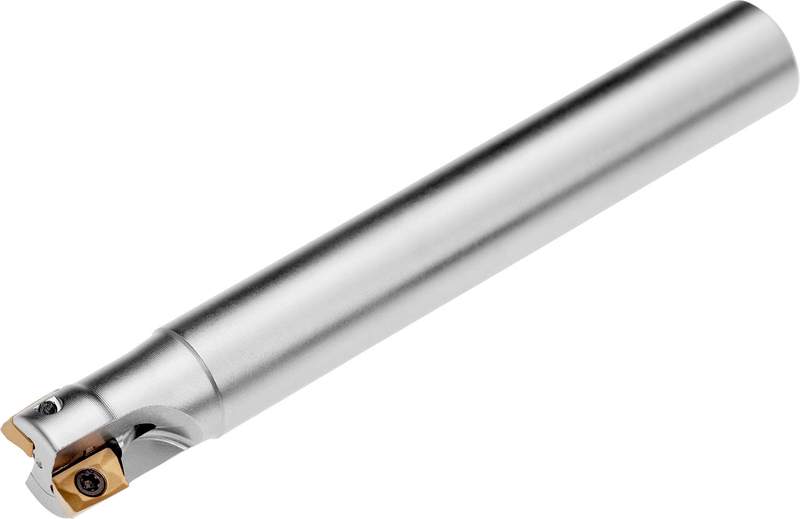

Fraise à épaulement à géométrie positive/négative qui utilise 5 plaquettes simple face ADMX 0702.. ou ADEX 0702.., diamètre de coupe 25 mm avec un angle d'attaque de 90° et une queue cylindrique de 25 mm selon DIN 1835A, longueur fonctionnelle de 24 mm et longueur totale de 140 mm, arrosage central et pas différentiel pour le fraisage d'épaulements peu profonds, le fraisage de rainures peu profondes, l'interpolation hélicoïdale, le fraisage en plongée, le fraisage en plongée progressive et le fraisage hélicoïdal avec une profondeur de coupe maximale de 5,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)25A5R024A25-SAD07D-C
Product Number6798635
Product FamilySAD07D
Insert Geometry
Depth of Cut Max — mm (APMX)5.0 mm

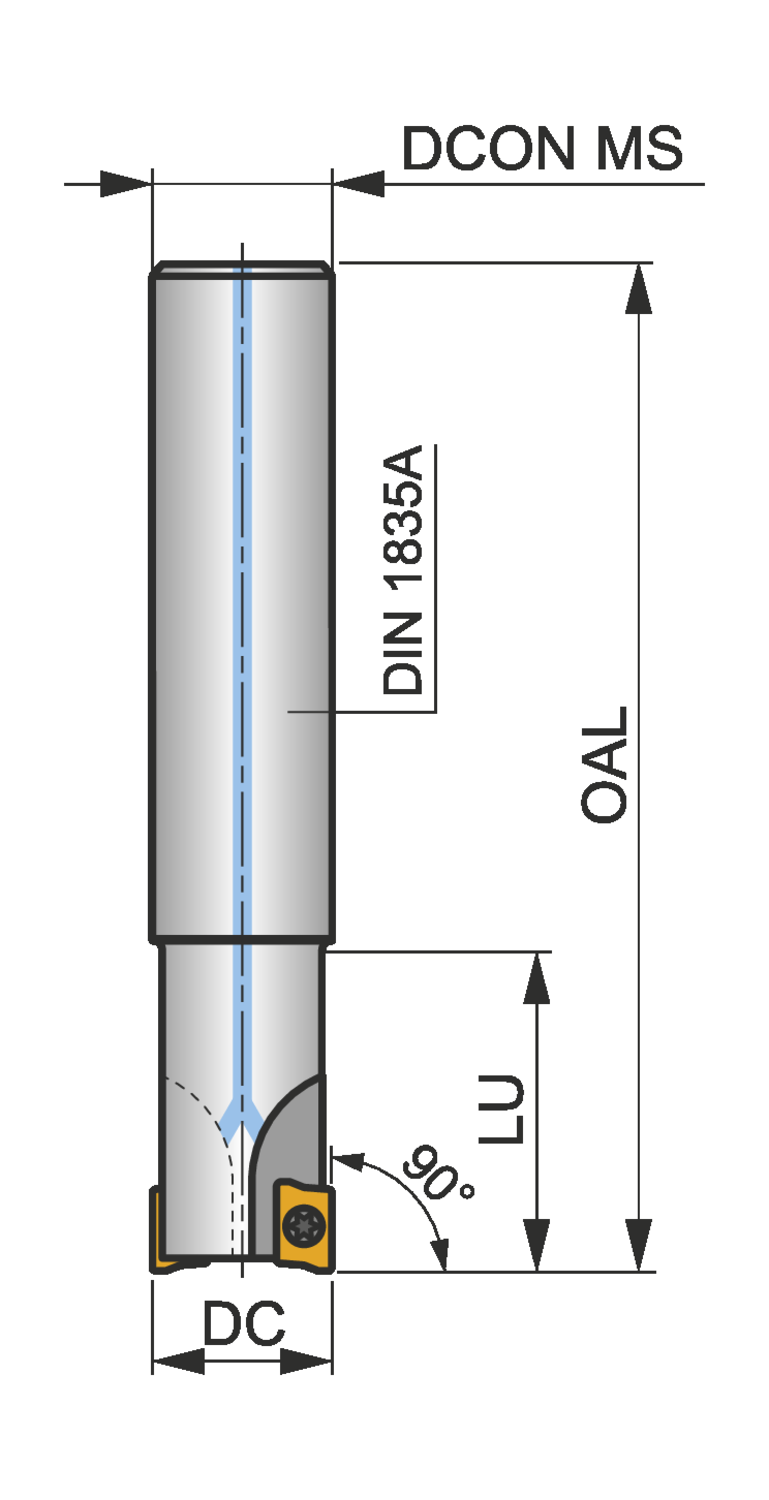

Dimensions
Cutting Diameter — in (DC)0.984"
Cutting Diameter — mm (DC)25.0 mm
Overall Length — in (OAL)5.512"
Overall Length — mm (OAL)140.0 mm
Usable Length — mm (LU)24.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)5
Tool Information
Tool DesignSAD07D
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6798635
EAN3603602992734
File Type Download
25A5R024A25-SAD07D-C — 3D Model STP Download
25A5R024A25-SAD07D-C — 2D Model DXF Download
25A5R024A25-SAD07D-C — Line Drawing PDF Download
