16A4R023M08-SAD07D-C
16A4R023M08-SAD07D-C
16A4R023M08-SAD07D-C

16A4R023M08-SAD07D-C

UGC DOR6798642
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$276.00 CAD - $276.00 CAD
$276.00 CAD
$276.00 CAD - $276.00 CAD
$276.00 CAD

Vendu en lots de : 1

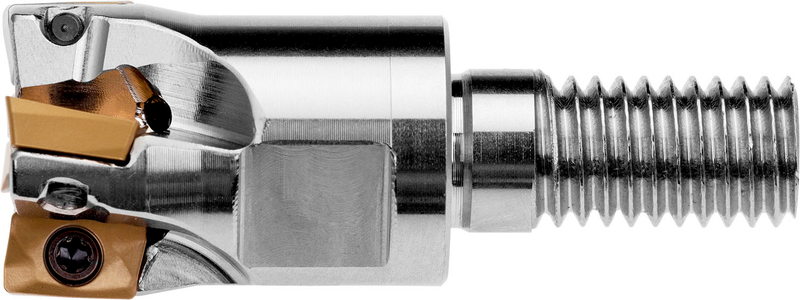

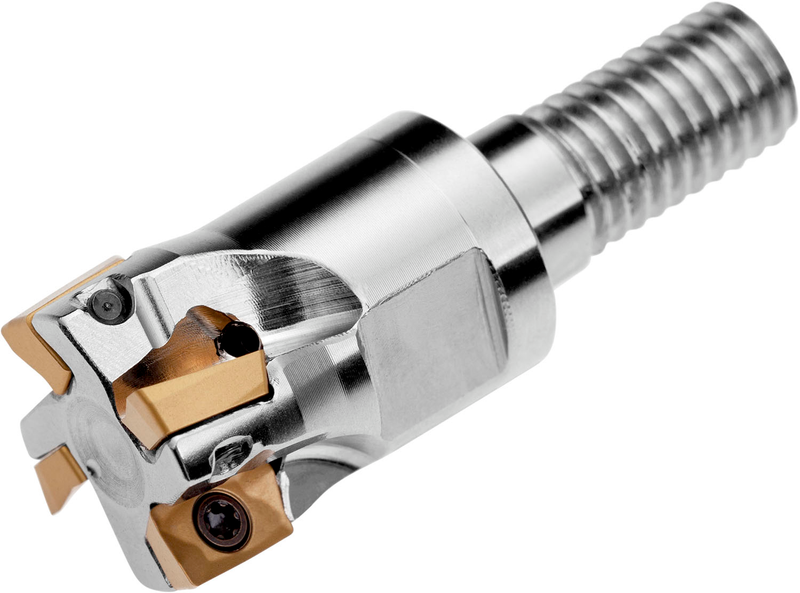

Fraise à épaulement à géométrie positive/négative qui utilise 4 plaquettes simple face ADMX 0702.. ou ADEX 0702.., diamètre de coupe de 16 mm avec un angle d'attaque de 90° et une queue filetée M8 pour les porte-outils modulaires standard, une longueur de dépassement de 23 mm, un arrosage interne et un pas différentiel pour le fraisage d'épaulement peu profond, le fraisage de rainures peu profondes, l'interpolation hélicoïdale, le fraisage en plongée et le fraisage en plongée progressive avec une profondeur de coupe maximale de 5,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)16A4R023M08-SAD07D-C
Product Number6798642
Product FamilySAD07D
Insert Geometry
Depth of Cut Max — mm (APMX)5.0 mm

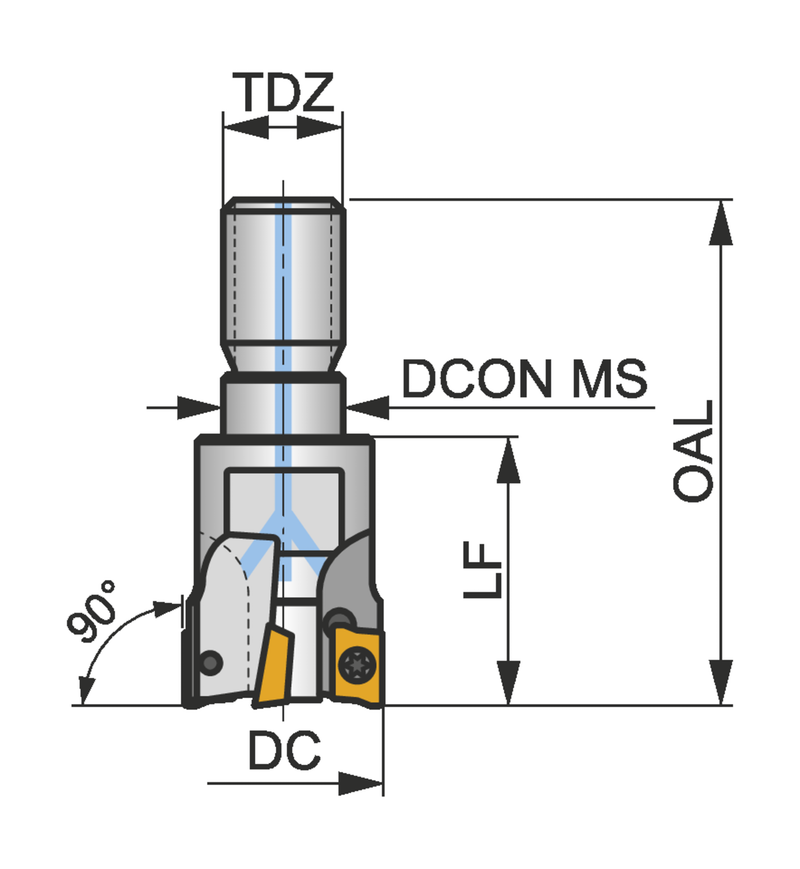

Dimensions
Cutting Diameter — in (DC)0.63"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)1.614"
Overall Length — mm (OAL)41.0 mm
Functional Length — mm (LF)23.0 mm
Connection Dia. — in (DCON)0.335"
Connection Dia. — mm (DCON)8.5 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)M8
Tool Information
Tool DesignSAD07D
ShankAccouplement fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6798642
EAN3603602992802
File Type Download
16A4R023M08-SAD07D-C — 3D Model STP Download
16A4R023M08-SAD07D-C — 2D Model DXF Download
16A4R023M08-SAD07D-C — Line Drawing PDF Download
