20A5R030M10-SAD07D-C
20A5R030M10-SAD07D-C
20A5R030M10-SAD07D-C

20A5R030M10-SAD07D-C

UGC DOR6798643
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$309.00 CAD - $309.00 CAD
$309.00 CAD
$309.00 CAD - $309.00 CAD
$309.00 CAD

Vendu en lots de : 1

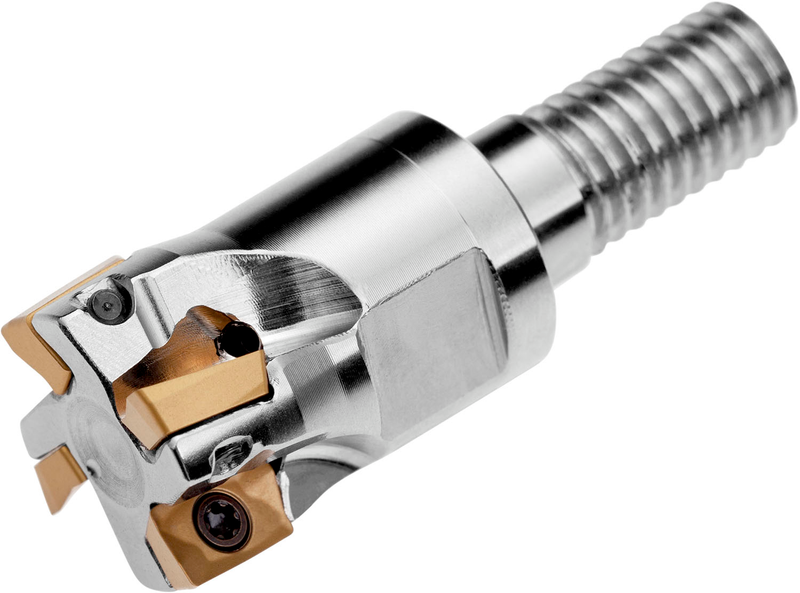

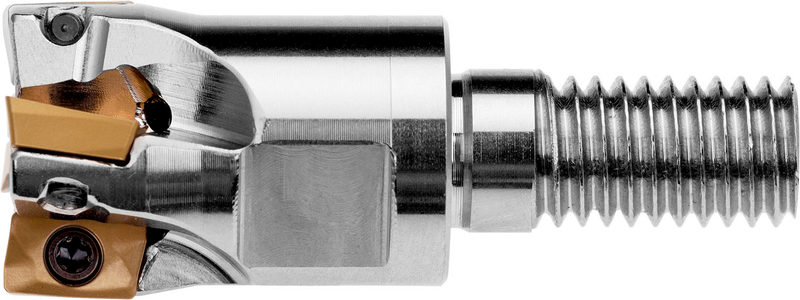

Fraise à épaulement à géométrie positive/négative utilisant 5 plaquettes simple face ADMX 0702... ou ADEX 0702..., diamètre de coupe 20 mm avec angle d'attaque de 90° et queue filetée M10 pour porte-outils modulaires standards, longueur de projection 30 mm, arrosage central et pas différentiel pour le fraisage d'épaulements peu profonds, le fraisage de rainures peu profondes, l'interpolation hélicoïdale, le fraisage en plongée et le fraisage en plongée progressive avec une profondeur de coupe maximale de 5,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)20A5R030M10-SAD07D-C
Product Number6798643
Product FamilySAD07D
Insert Geometry
Depth of Cut Max — mm (APMX)5.0 mm

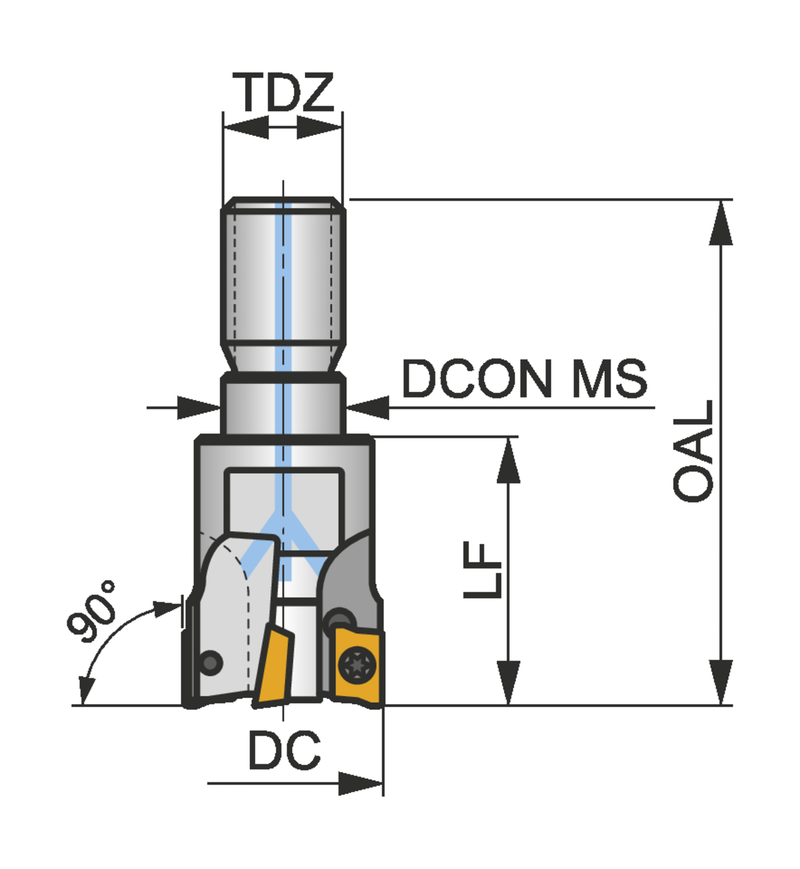

Dimensions
Cutting Diameter — in (DC)0.787"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)1.929"
Overall Length — mm (OAL)49.0 mm
Functional Length — mm (LF)30.0 mm
Connection Dia. — in (DCON)0.413"
Connection Dia. — mm (DCON)10.5 mm
Number of Flutes (NOF)5
Threading
Thread Diameter Size (TDZ)M10
Tool Information
Tool DesignSAD07D
ShankRaccord fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6798643
EAN3603602992819
File Type Download
20A5R030M10-SAD07D-C — 3D Model STP Download
20A5R030M10-SAD07D-C — 2D Model DXF Download
20A5R030M10-SAD07D-C — Line Drawing PDF Download
