14A3R018A12-SAD07D-C
14A3R018A12-SAD07D-C
14A3R018A12-SAD07D-C

14A3R018A12-SAD07D-C

UGC DOR6798646
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$273.00 CAD - $273.00 CAD
$273.00 CAD
$273.00 CAD - $273.00 CAD
$273.00 CAD

Vendu en lots de : 1

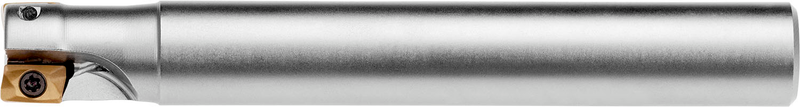

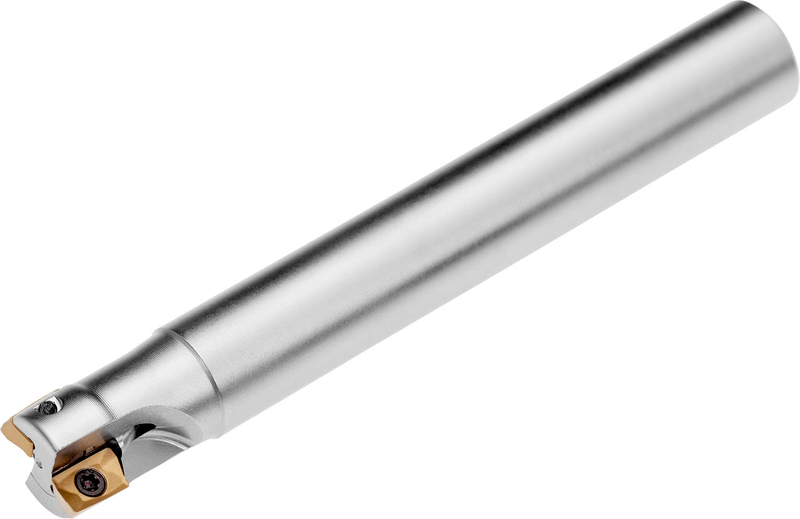

Fraise à épaule à géométrie positive/négative qui utilise 3 plaquettes simple face ADMX 0702.. ou ADEX 0702.., diamètre de coupe 14mm avec un angle d'attaque de 90° et une queue cylindrique de 12mm selon DIN 1835A, longueur fonctionnelle 18mm et longueur totale 140mm, arrosage central pour le surfaçage en bout à faible profondeur, le fraisage de rainures peu profondes, l'interpolation hélicoïdale, l'interpolation circulaire, le fraisage en plongée et le fraisage en plongée progressive avec une profondeur de coupe maximale de 5.0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)14A3R018A12-SAD07D-C
Product Number6798646
Product FamilySAD07D
Insert Geometry
Depth of Cut Max — mm (APMX)5.0 mm

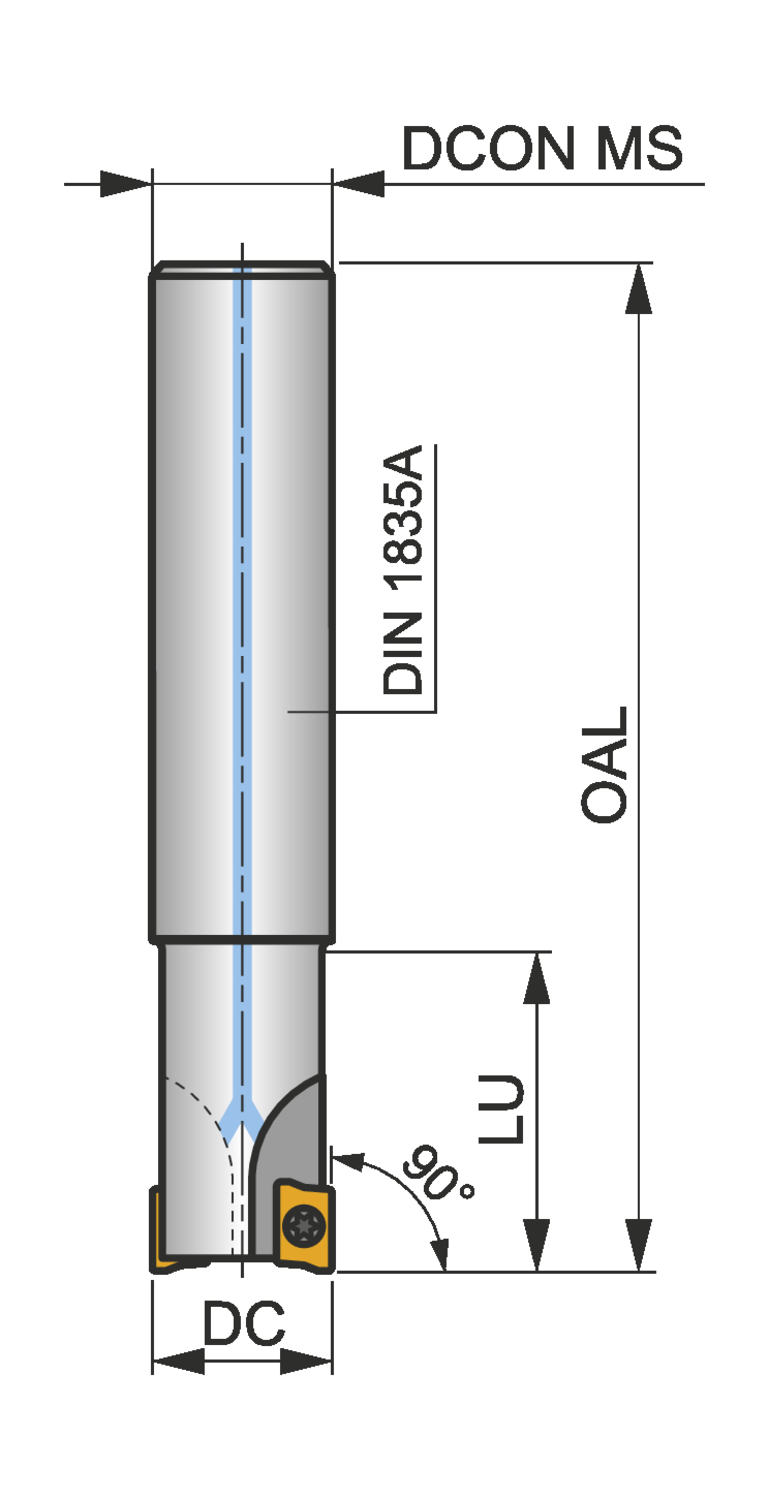

Dimensions
Cutting Diameter — in (DC)0.551"
Cutting Diameter — mm (DC)14.0 mm
Overall Length — in (OAL)5.512"
Overall Length — mm (OAL)140.0 mm
Usable Length — mm (LU)18.0 mm
Connection Dia. — in (DCON)0.472"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignSAD07D
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6798646
EAN3603602992840
File Type Download
14A3R018A12-SAD07D-C — 3D Model STP Download
14A3R018A12-SAD07D-C — 2D Model DXF Download
14A3R018A12-SAD07D-C — Line Drawing PDF Download
