ADMX 11T316PR-R:M9325
ADMX 11T316PR-R:M9325

ADMX 11T316PR-R:M9325

UGC DOR6800778
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.96 CAD - $14.96 CAD
$14.96 CAD
$14.96 CAD - $14.96 CAD
$14.96 CAD

Vendu en lots de : 10

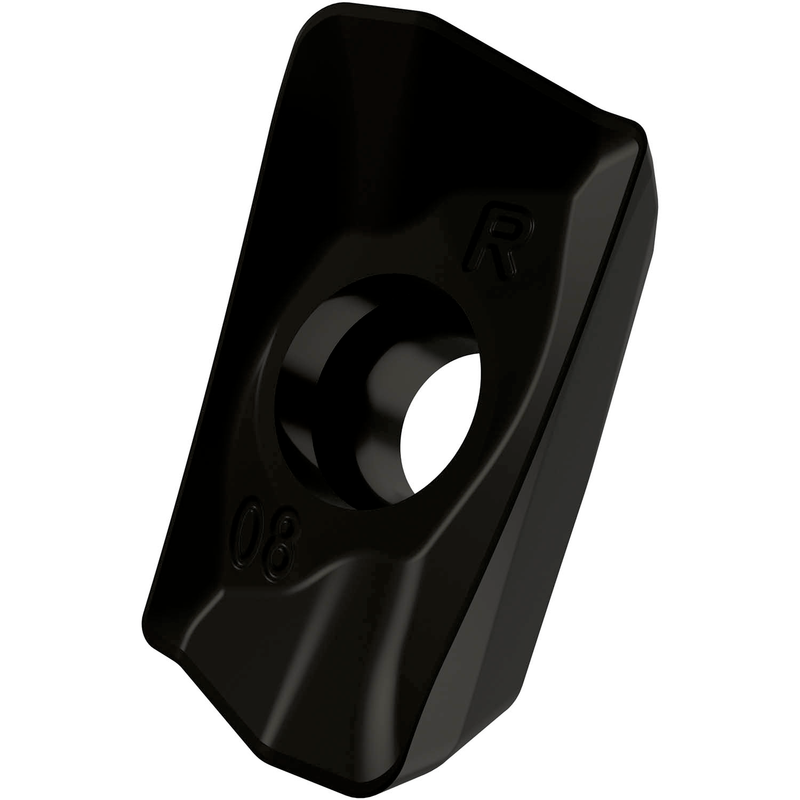

Plaquette de fraisage simple-face ADMX 11T3, parallélogramme à 85° pour une profondeur de coupe maximale de 9 mm, avec rayon de coin de 1,6 mm, une précision de positionnement selon la classe de tolérance ISO-M et géométrie R avec arêtes de coupe arrondies et double facette, en carbure WC-Co revêtu MT-CVD M9325 pour l'usinage de l'acier avec les fraises à épaulement SAD11E ou les fraises à épaulement à queue allongée J(T)-SAD11E

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)ADMX 11T316PR-R:M9325
GradeM9325
Chipbreaker (CBMD)R
Product Number6800778
Product FamilyADMX 11

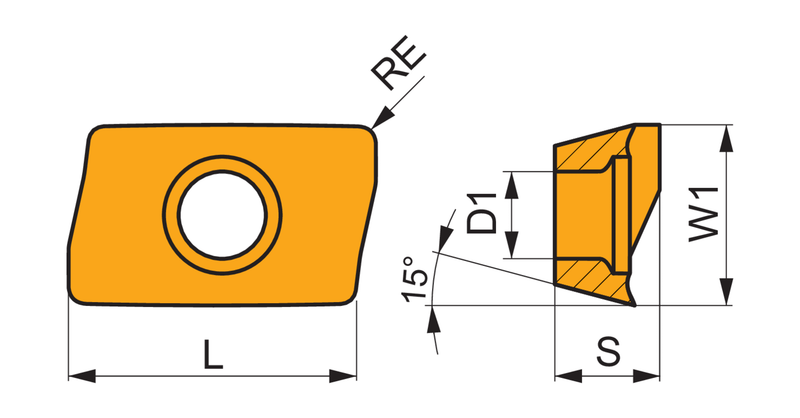

Insert Geometry
Insert DesignADMX
Insert Shape Code (SC)A - parallélogramme angle interne de 85°
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Depth of Cut Max — in (APMX)0.354"
Depth of Cut Max — mm (APMX)9.0 mm
Tool Information
Reference Numbers
EDP Number6800778
EAN3603602993199
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Usage principal
H — Hardened Materials Utilisation possible
File Type Download
ADMX 11T316PR-R:M9325 — Line Drawing PDF Download
