25A2R038A25-SAD16E-C
25A2R038A25-SAD16E-C
25A2R038A25-SAD16E-C

25A2R038A25-SAD16E-C

UGC DOR6800793
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$323.00 CAD - $323.00 CAD
$323.00 CAD
$323.00 CAD - $323.00 CAD
$323.00 CAD

Vendu en lots de : 1

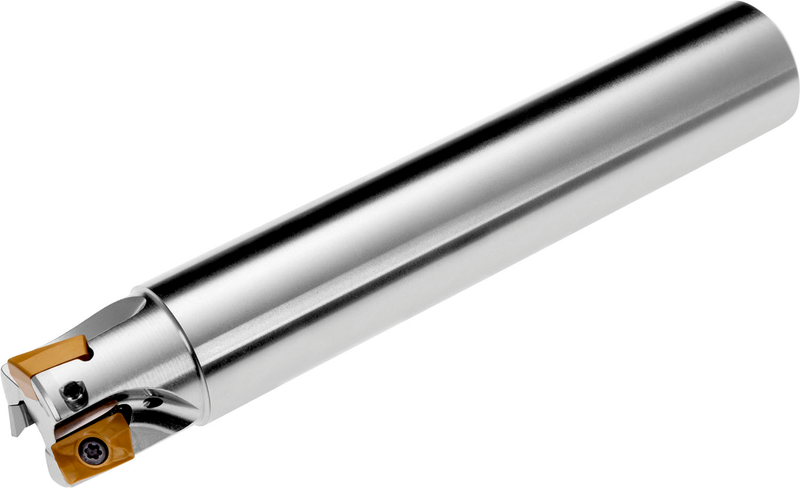

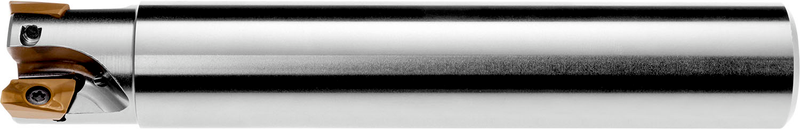

Fraise à épaulement à géométrie positive/négative utilisant 2 plaquettes simple face ADMX 1606.. ou ADEX 1606.., diamètre de coupe 25 mm avec un angle d'attaque de 90° et une queue cylindrique de 25 mm selon la norme DIN 1835A, longueur fonctionnelle de 38 mm et longueur totale de 200 mm, arrosage central pour le fraisage en plongée, le fraisage d'épaulements peu profonds, le fraisage de rainures peu profondes, l'interpolation hélicoïdale, le fraisage en plongée progressive et le fraisage en plongée avec une profondeur de coupe maximale de 13,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)25A2R038A25-SAD16E-C
Product Number6800793
Product FamilySAD16E
Insert Geometry
Depth of Cut Max — mm (APMX)13.0 mm

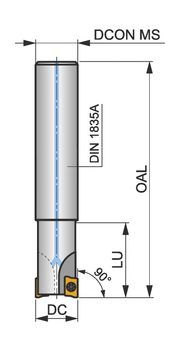

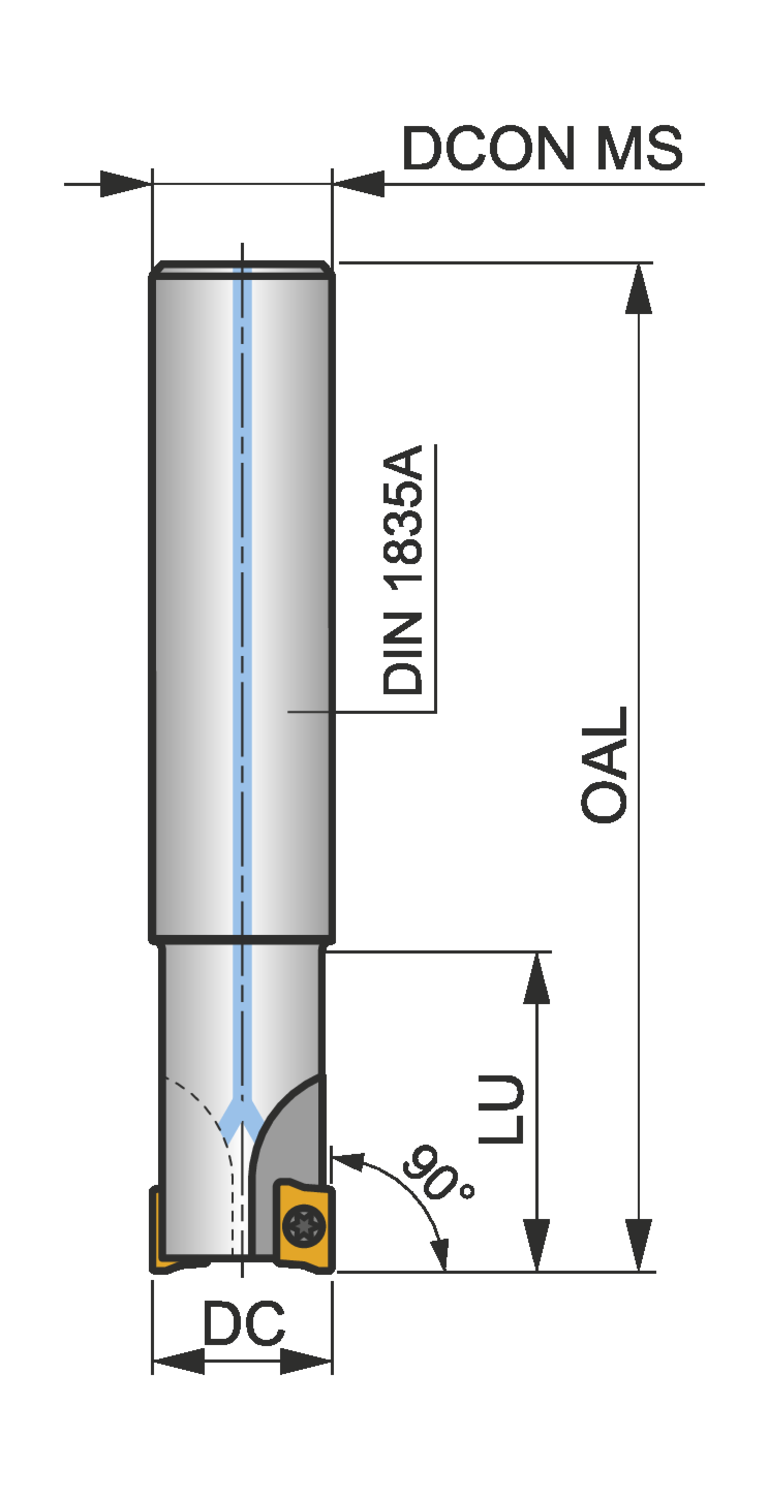

Dimensions
Cutting Diameter — in (DC)0.984"
Cutting Diameter — mm (DC)25.0 mm
Overall Length — in (OAL)7.874"
Overall Length — mm (OAL)200.0 mm
Usable Length — mm (LU)38.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignSAD16E
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6800793
EAN3603602993342
File Type Download
25A2R038A25-SAD16E-C — 3D Model STP Download
25A2R038A25-SAD16E-C — 2D Model DXF Download
25A2R038A25-SAD16E-C — Line Drawing PDF Download
