40J3R70B32-SAD11E56-C
40J3R70B32-SAD11E56-C
40J3R70B32-SAD11E56-C

40J3R70B32-SAD11E56-C

UGC DOR6800796
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,401.00 CAD - $1,401.00 CAD
$1,401.00 CAD
$1,401.00 CAD - $1,401.00 CAD
$1,401.00 CAD

Vendu en lots de : 1

Fraise à épaulement à queue avec une géométrie positive/négative qui utilise 18 plaquettes simple face ADMX 11T3..., diamètre de coupe 40 mm avec un angle d'attaque de 90° et un manche Weldon de 32 mm selon DIN 1835B, 56 mm de longueur utile et 130,0 mm de longueur totale, arrosage central pour le fraisage d'épaulements profonds et le fraisage de rainures profondes avec une profondeur de coupe maximale de 56 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)40J3R70B32-SAD11E56-C
Product Number6800796
Product FamilyJ(T)-SAD11E
Insert Geometry
Depth of Cut Max — mm (APMX)56.0 mm

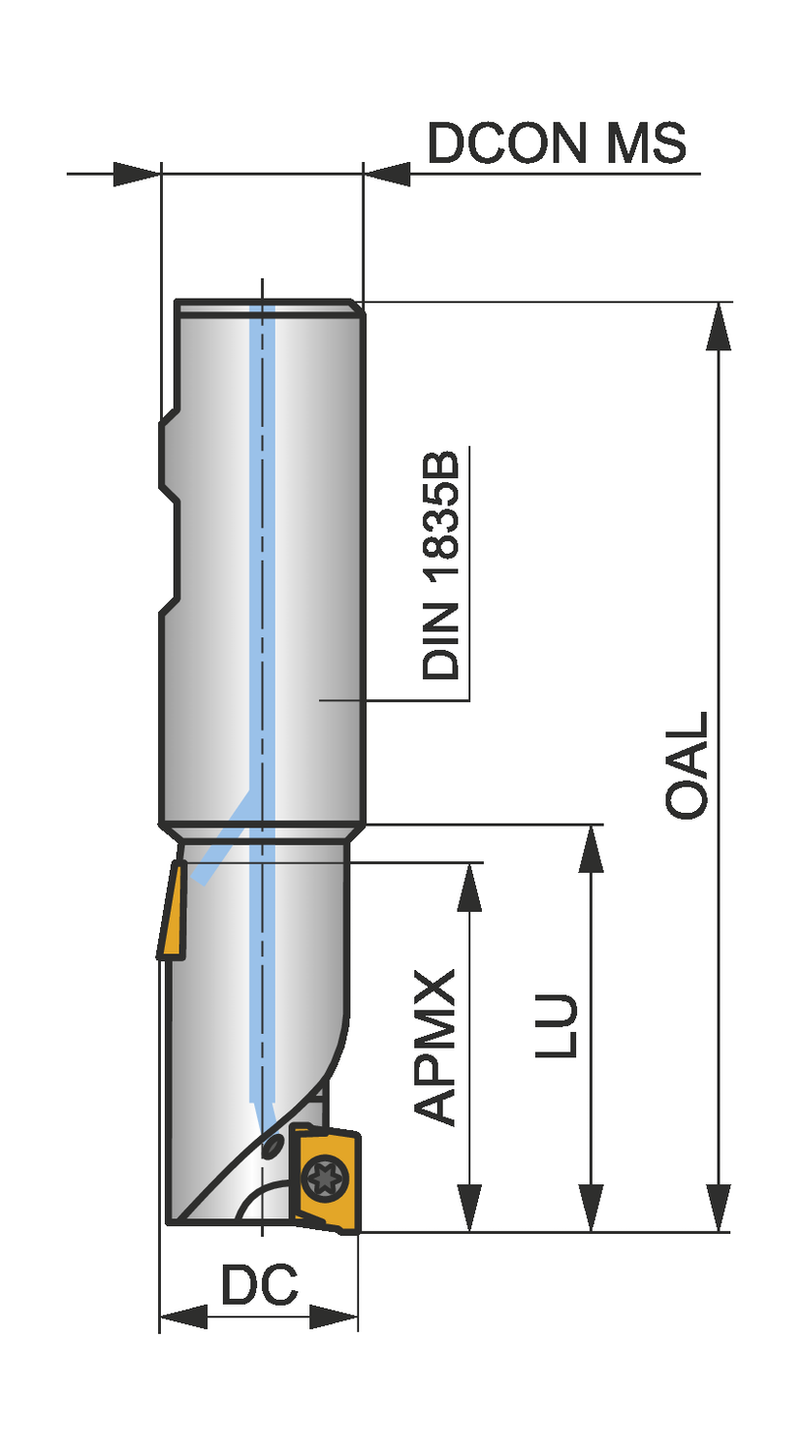

Dimensions
Cutting Diameter — in (DC)1.575"
Cutting Diameter — mm (DC)40.0 mm
Overall Length — in (OAL)5.118"
Overall Length — mm (OAL)130.0 mm
Usable Length — mm (LU)70.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignJ(T)-SAD11E
ShankQueue Weldon DIN 1835B
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6800796
EAN3603602993373
File Type Download
40J3R70B32-SAD11E56-C — 3D Model STP Download
40J3R70B32-SAD11E56-C — 2D Model DXF Download
40J3R70B32-SAD11E56-C — Line Drawing PDF Download
