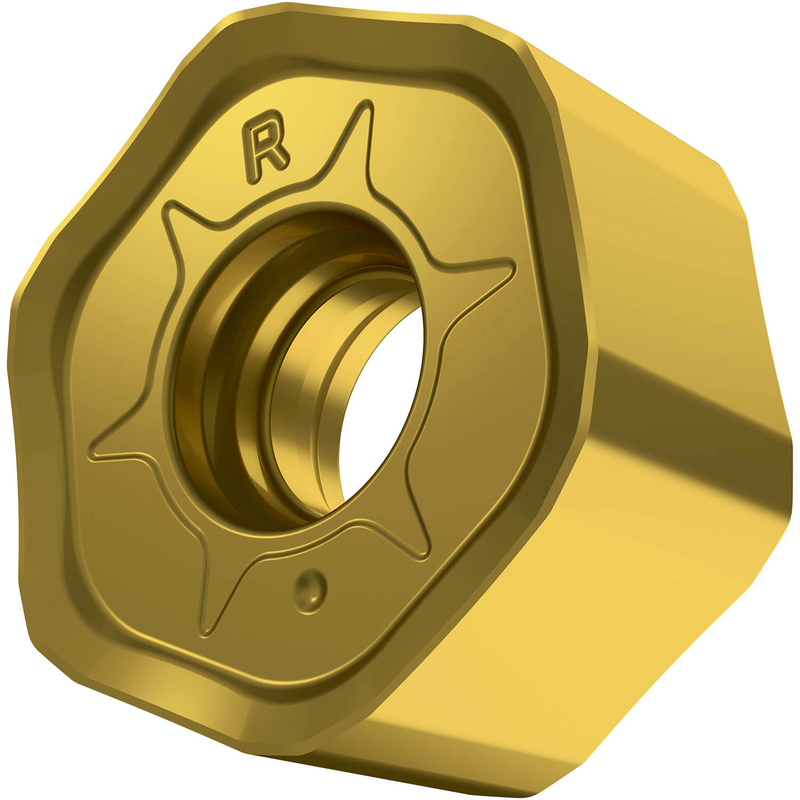

HNGX 0604ANSN-R:M8340
HNGX 0604ANSN-R:M8340

HNGX 0604ANSN-R:M8340

UGC DOR6800831
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$27.73 CAD - $27.73 CAD
$27.73 CAD
$27.73 CAD - $27.73 CAD
$27.73 CAD

Vendu en lots de : 10

Plaquette de fraisage double face HNGX 0604, hexagonale pour une profondeur de coupe maximale de 3,0 mm, avec rayon de coin ", une précision de positionnement selon la classe de tolérance ISO-G et une géométrie R avec arêtes de coupe arrondies et facette, en carbure WC-Co à grains fins revêtu PVD M8340 dans la plage de grades ISO P25-P50 pour l'usinage de l'acier avec des fraises à surfacer SHN06C

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)HNGX 0604ANSN-R:M8340
GradeM8340
Chipbreaker (CBMD)R
Product Number6800831
Product FamilyHNGX 06
Insert Geometry
Insert DesignHNGX
Insert Shape Code (SC)H - hexagonale
Inscribed Circle Dia. — in (IC)0.413"
Inscribed Circle Dia. — mm (IC)10.5 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6800831
EAN3603602993625
File Type Download
HNGX 0604ANSN-R:M8340 — Line Drawing PDF Download
