HNGX 0906ANSN-F:M8340
HNGX 0906ANSN-F:M8340

HNGX 0906ANSN-F:M8340

UGC DOR6800832
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$37.71 CAD - $37.71 CAD
$37.71 CAD
$37.71 CAD - $37.71 CAD
$37.71 CAD

Vendu en lots de : 10

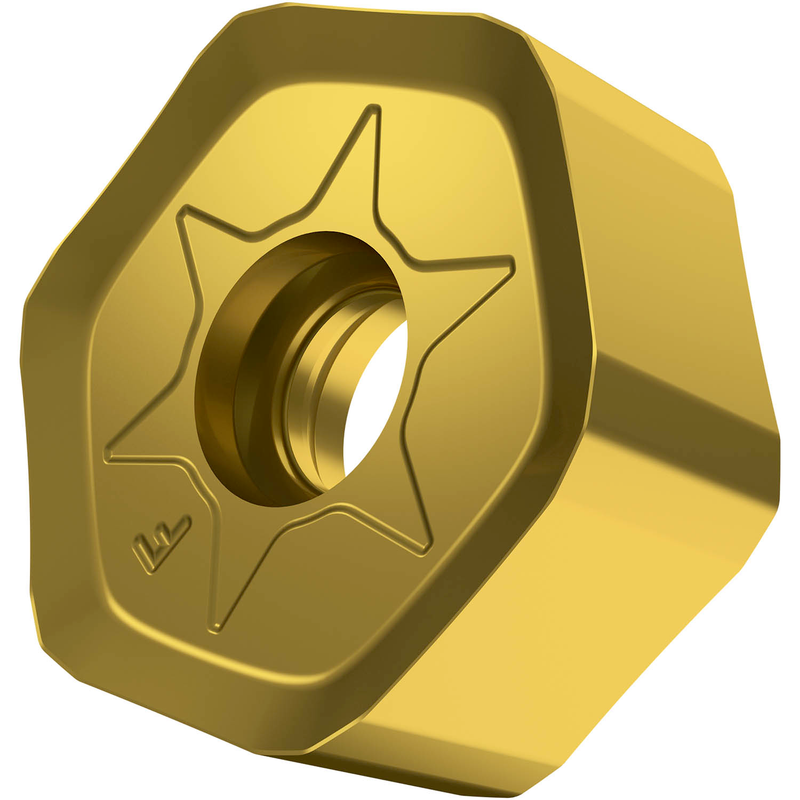

Plaquette de fraisage double face HNGX 0906, hexagonale pour une profondeur de coupe maximale de 5 mm (0,1969"), avec rayon de coin ", précision d'indexage selon la classe de tolérance ISO-G et géométrie F avec arêtes de coupe et facettes arrondies, carbure WC-Co à grains fins revêtu PVD M8340 dans les plages de nuances ISO P25-P50 et M20-M40 pour l'usinage de l'acier et de l'acier inoxydable avec les fraises de surfaçage SHN09C

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)HNGX 0906ANSN-F:M8340
GradeM8340
Chipbreaker (CBMD)F
Product Number6800832
Product FamilyHNGX 09
Insert Geometry
Insert DesignHNGX
Insert Shape Code (SC)H - hexagonal
Inscribed Circle Dia. — in (IC)0.65"
Inscribed Circle Dia. — mm (IC)16.5 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Depth of Cut Max — in (APMX)0.197"
Depth of Cut Max — mm (APMX)5.0 mm
Tool Information
Reference Numbers
EDP Number6800832
EAN3603602993632
File Type Download
HNGX 0906ANSN-F:M8340 — Line Drawing PDF Download
