ODMT 0605ZZN:M8340
ODMT 0605ZZN:M8340

ODMT 0605ZZN:M8340

UGC DOR6800837
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$26.53 CAD - $26.53 CAD
$26.53 CAD
$26.53 CAD - $26.53 CAD
$26.53 CAD

Vendu en lots de : 10

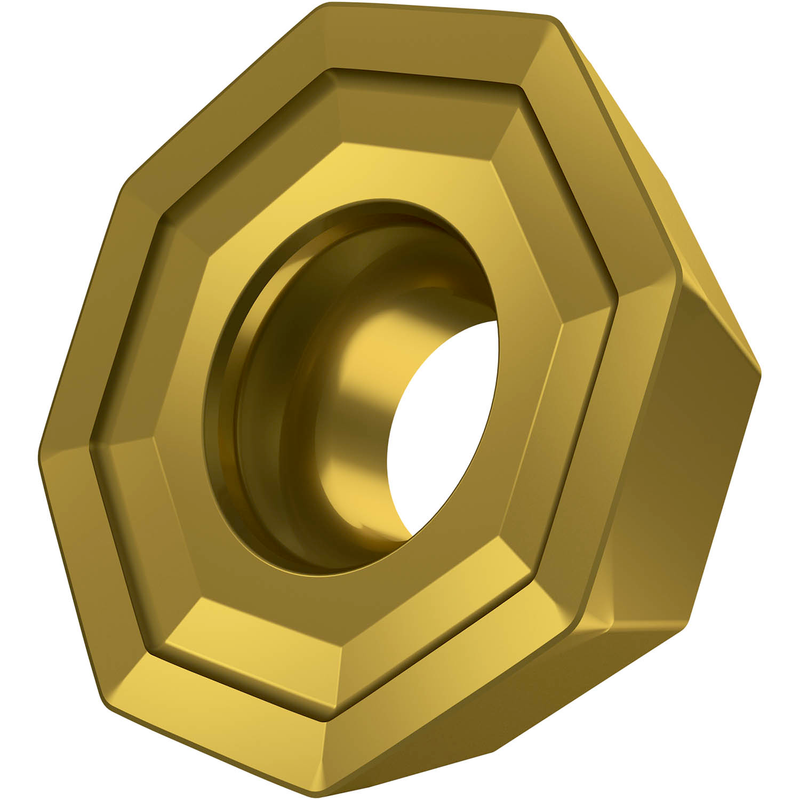

Plaquette de fraisage simple face ODMT 0605 avec brise-copeaux, octogonale pour une profondeur de coupe maximale de 3,1 mm (0,122"), avec rayon de coin ", une précision de positionnement conforme à la classe de tolérance ISO-M, carbure WC-Co à grains fins revêtu PVD M8340 dans la gamme ISO P25-P50 pour l'usinage de l'acier avec les fraises à surfacer SOD06D

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)ODMT 0605ZZN:M8340
GradeM8340
Chipbreaker (CBMD)Avec brise-copeaux – aucune désignation
Product Number6800837
Product FamilyODMT 06

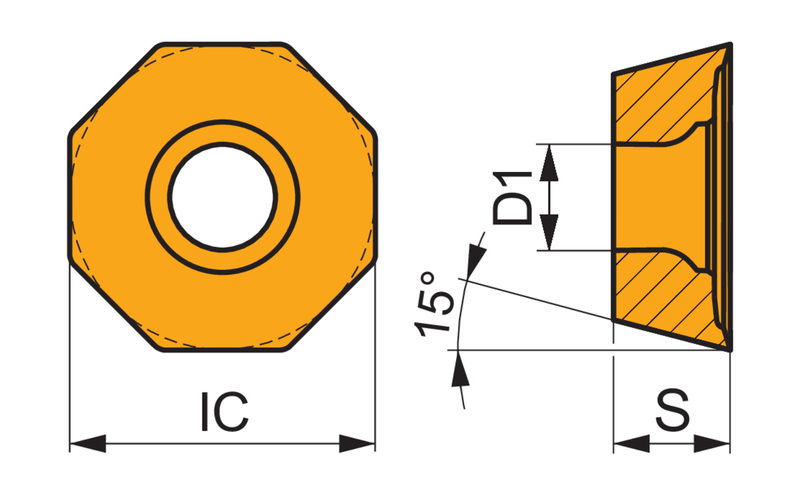

Insert Geometry
Insert DesignGTDO
Insert Shape Code (SC)O - octogonal
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.88 mm
Insert Thickness — in (S)0.219"
Insert Thickness — mm (S)5.56 mm
Depth of Cut Max — in (APMX)0.122"
Depth of Cut Max — mm (APMX)3.1 mm
Tool Information
Reference Numbers
EDP Number6800837
EAN3603602993687
File Type Download
ODMT 0605ZZN:M8340 — Line Drawing PDF Download
