RPEX 1204MOSN-12:M8340
RPEX 1204MOSN-12:M8340

RPEX 1204MOSN-12:M8340

UGC DOR6800847
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.14 CAD - $20.14 CAD
$20.14 CAD
$20.14 CAD - $20.14 CAD
$20.14 CAD

Vendu en lots de : 10

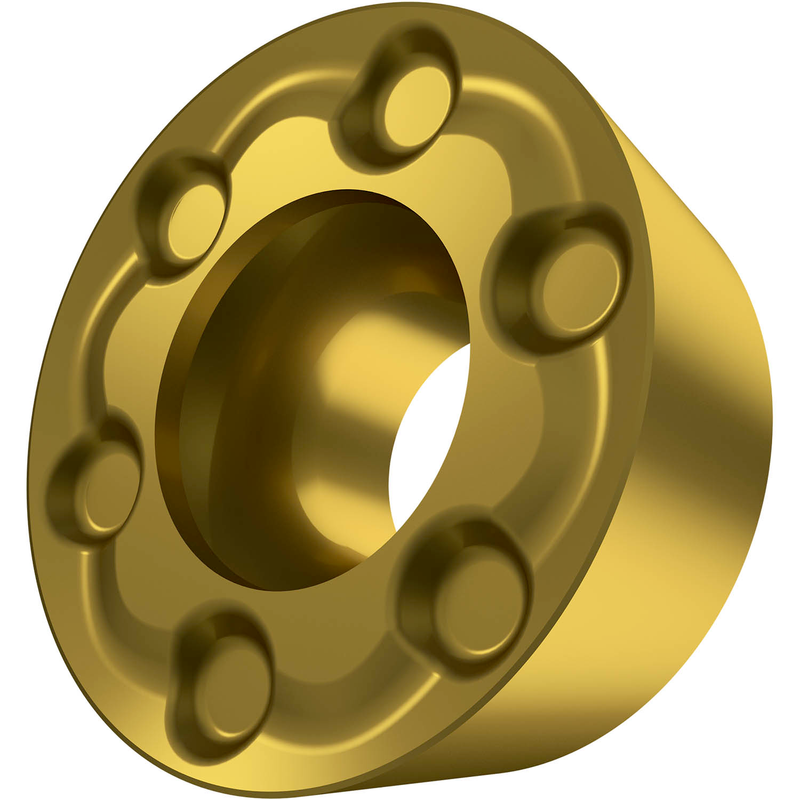

Plaquette de fraisage simple face RPEX 1204, ronde pour une profondeur de coupe maximale de 3 mm, avec un rayon de coin de ", une précision d'indexage selon la classe de tolérance ISO-E et une géométrie 12 avec arêtes de coupe arrondies et facette, en carbure WC-Co à grains fins revêtu PVD M8340 dans les plages de nuances ISO P25-P50 et M20-M40 pour l'usinage de l'acier et de l'acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RPEX 1204MOSN-12:M8340
GradeM8340
Chipbreaker (CBMD)12
Product Number6800847
Product FamilyRPEX
Insert Geometry
Insert DesignPEER
Insert Shape Code (SC)R - tour
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6800847
EAN3603602993786
File Type Download

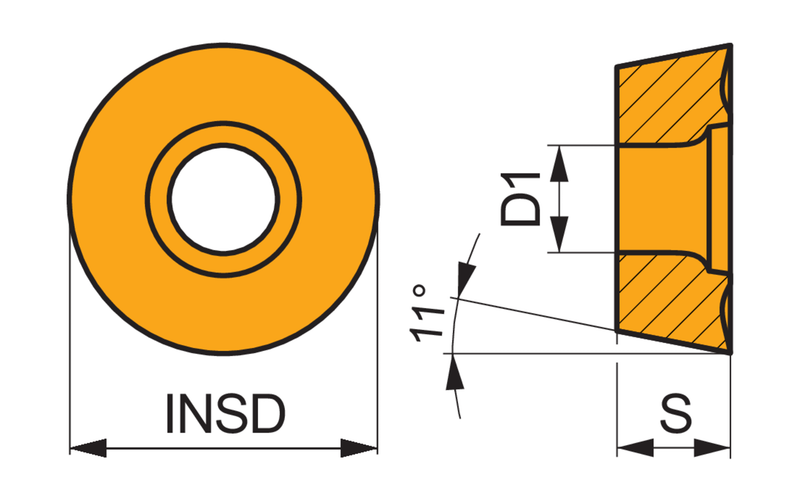

RPEX 1204MOSN-12:M8340 — Line Drawing PDF Download
