VU 42AFFN:M8340
VU 42AFFN:M8340

VU 42AFFN:M8340

UGC DOR6800853
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.19 CAD - $16.19 CAD
$16.19 CAD
$16.19 CAD - $16.19 CAD
$16.19 CAD

Vendu en lots de : 10

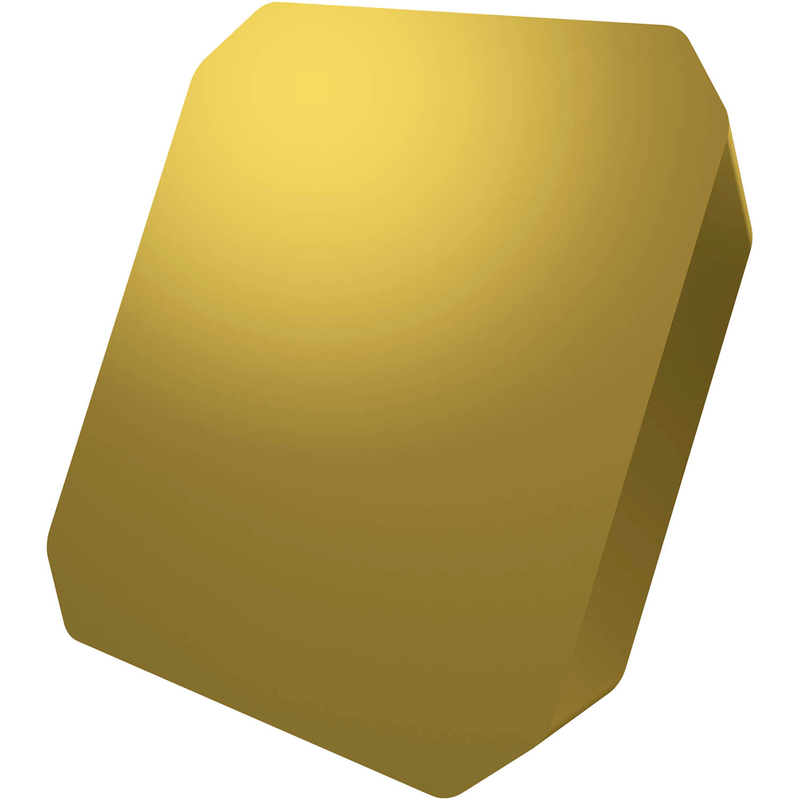

Plaquette de fraisage simple face SEEN 1203 à brise-copeaux plat, de forme carrée pour une profondeur de coupe maximale de 6,5 mm, avec un rayon de coin de ", une précision de positionnement selon la classe de tolérance ISO-E avec arêtes de coupe vives, carbure de WC-Co à grains fins revêtu PVD M8340 dans la gamme ISO P25-P50 pour l'usinage de l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI)VU 42AFFN:M8340
Product Name (ISO)VU 1203AFFN:M8340
GradeM8340
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6800853
Product FamilyVU

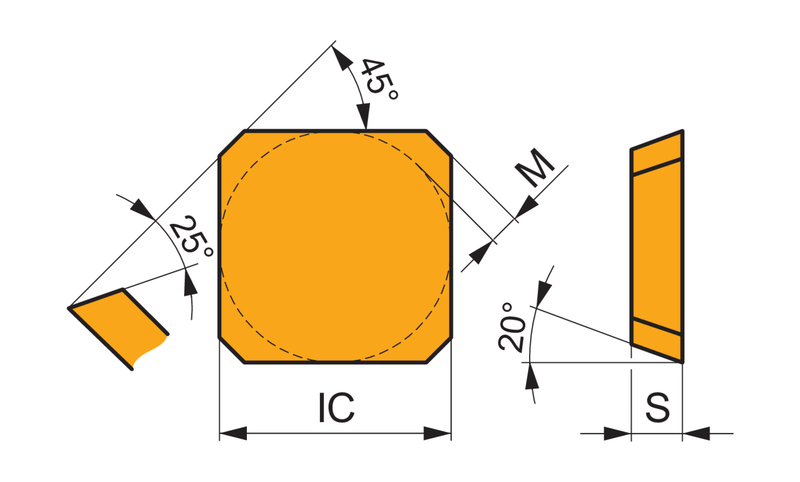

Insert Geometry
Insert DesignVU
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Depth of Cut Max — in (APMX)0.256"
Depth of Cut Max — mm (APMX)6.5 mm
Tool Information
Reference Numbers
EDP Number6800853
EAN3603602993847
File Type Download
VU 42AFFN:M8340 — Line Drawing PDF Download
