VU 42AFSN:M8340
VU 42AFSN:M8340

VU 42AFSN:M8340

UGC DOR6800854
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.19 CAD - $16.19 CAD
$16.19 CAD
$16.19 CAD - $16.19 CAD
$16.19 CAD

Vendu en lots de : 10

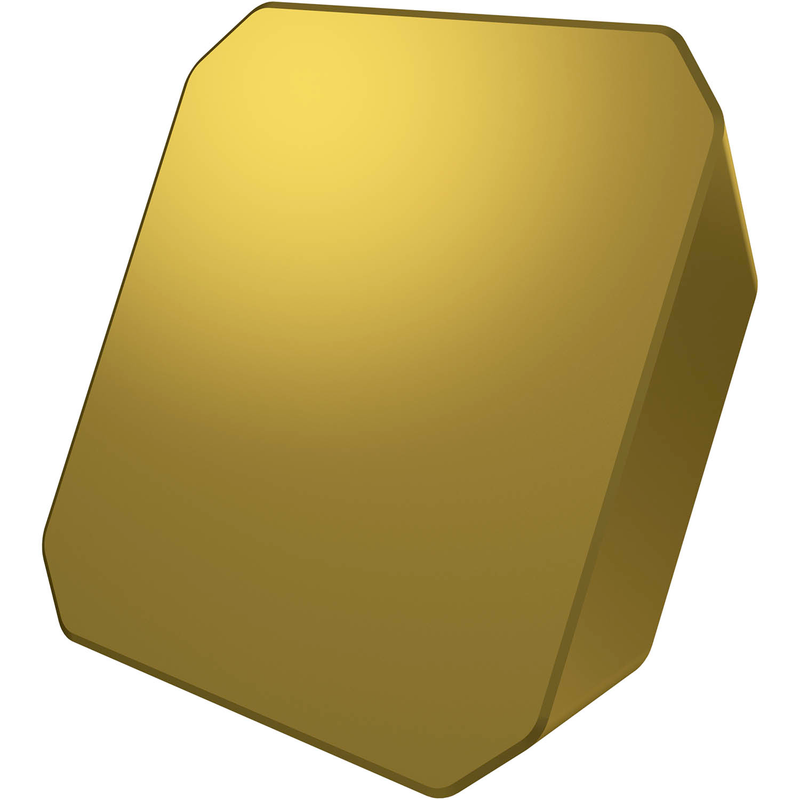

Plaquette de fraisage simple face SEEN 1203 avec une surface de coupe plane, carrée pour une profondeur de coupe maximale de 6,5 mm, avec rayon de coin de ", une précision d'indexage conforme à la classe de tolérance ISO-E avec des arêtes de coupe et une facette arrondies, en carbure WC-Co à grain fin revêtu PVD M8340

For more information about this product, click here

Identification
Ordering Code (ANSI)VU 42AFSN:M8340
Product Name (ISO)VU 1203AFSN:M8340
GradeM8340
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6800854
Product FamilyVU
Insert Geometry
Insert DesignVU
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Depth of Cut Max — in (APMX)0.256"
Depth of Cut Max — mm (APMX)6.5 mm
Tool Information
Reference Numbers
EDP Number6800854
EAN3603602993854
File Type Download

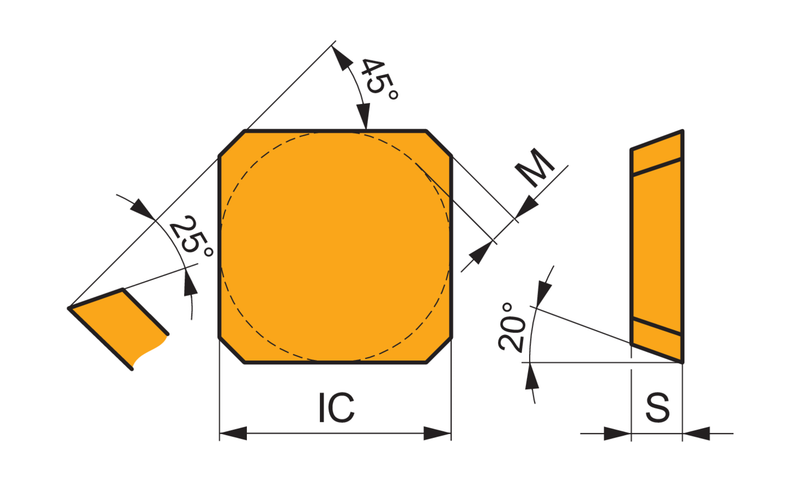

VU 42AFSN:M8340 — Line Drawing PDF Download
