VU 53AFSN:M8340
VU 53AFSN:M8340

VU 53AFSN:M8340

UGC DOR6800857
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.79 CAD - $22.79 CAD
$22.79 CAD
$22.79 CAD - $22.79 CAD
$22.79 CAD

Vendu en lots de : 10

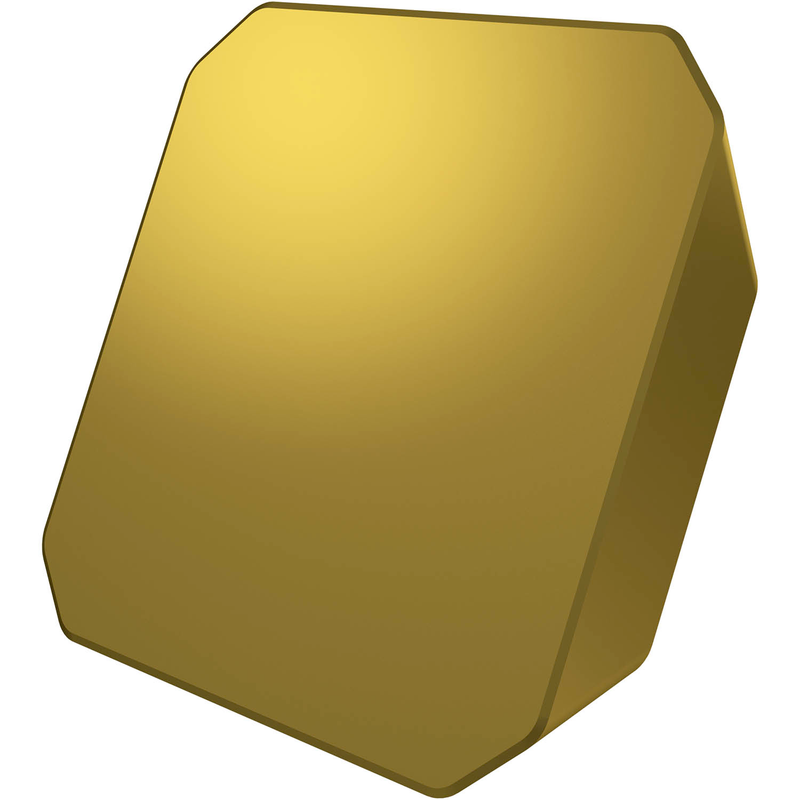

Plaquette de fraisage simple face SEEN 1504 avec une surface de coupe plane, carrée pour une profondeur de coupe maximale de 9 mm (0,3543"), avec un rayon de coin de ", une précision d'indexage selon la classe de tolérance ISO-E avec arêtes de coupe arrondies et facette, en carbure WC-Co à grains fins revêtu PVD M8340

For more information about this product, click here

Identification
Ordering Code (ANSI)VU 53AFSN:M8340
Product Name (ISO)VU 1504AFSN:M8340
GradeM8340
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6800857
Product FamilyVU

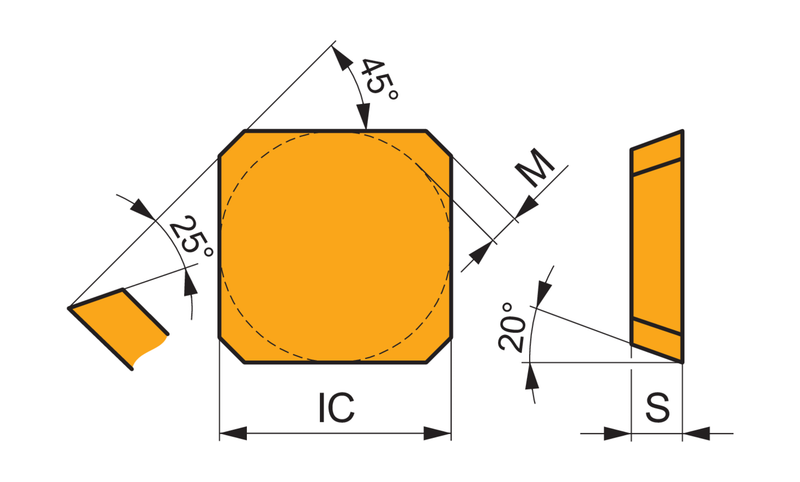

Insert Geometry
Insert DesignVU
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.88 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.354"
Depth of Cut Max — mm (APMX)9.0 mm
Tool Information
Reference Numbers
EDP Number6800857
EAN3603602993885
File Type Download
VU 53AFSN:M8340 — Line Drawing PDF Download
