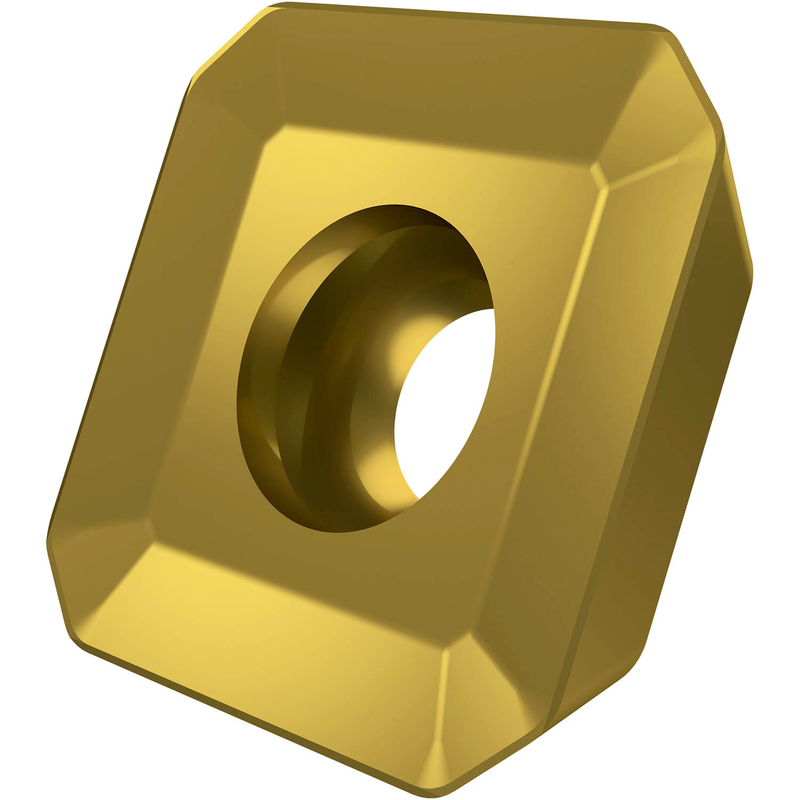

SEET 12T3M-PM:M8340
SEET 12T3M-PM:M8340

SEET 12T3M-PM:M8340

UGC DOR6800863
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.66 CAD - $23.66 CAD
$23.66 CAD
$23.66 CAD - $23.66 CAD
$23.66 CAD

Vendu en lots de : 10

Plaquette de fraisage simple face SEET 12T3 avec brise-copeaux, carrée pour une profondeur de coupe maximale de 6,5 mm, avec rayon de coin de ", une précision d'indexation selon la classe de tolérance ISO-E et une géométrie PM avec arêtes de coupe arrondies et double facette, en carbure WC-Co à grains fins revêtu PVD M8340 dans les plages de nuances ISO P25-P50 et M20-M40 pour l'usinage de l'acier et de l'acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SEET 12T3M-PM:M8340
GradeM8340
Chipbreaker (CBMD)MP
Product Number6800863
Product FamilySEET 12h00 (HNE)
Insert Geometry
Insert DesignVOIR
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.528"
Inscribed Circle Dia. — mm (IC)13.4 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Depth of Cut Max — in (APMX)0.256"
Depth of Cut Max — mm (APMX)6.5 mm
Tool Information
Reference Numbers
EDP Number6800863
EAN3603602993946
File Type Download

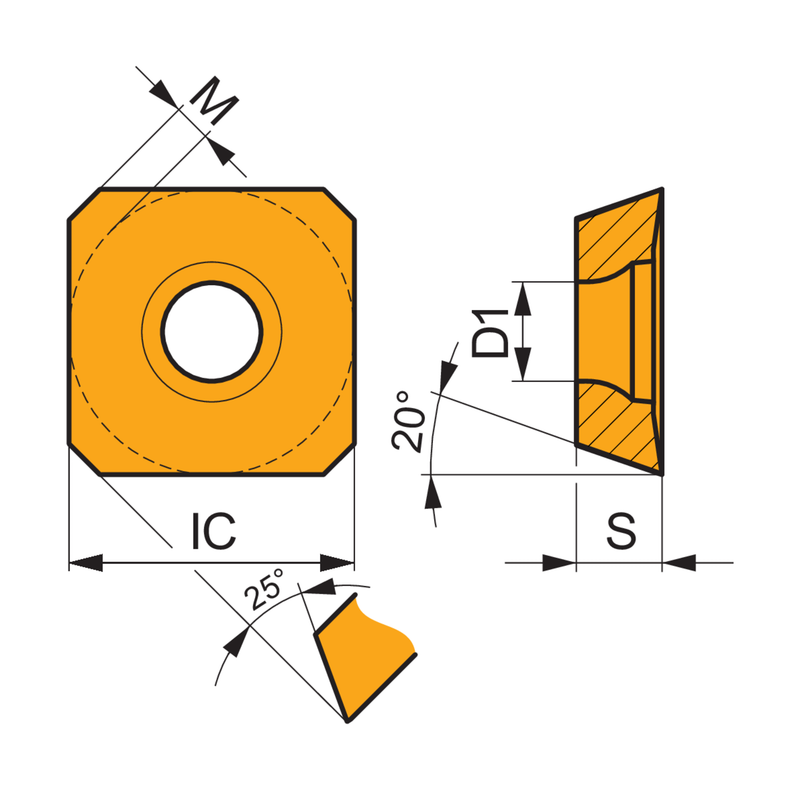

SEET 12T3M-PM:M8340 — Line Drawing PDF Download
