SEEW 1204AFEN:M8340
SEEW 1204AFEN:M8340

SEEW 1204AFEN:M8340

UGC DOR6800864
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.56 CAD - $24.56 CAD
$24.56 CAD
$24.56 CAD - $24.56 CAD
$24.56 CAD

Vendu en lots de : 10

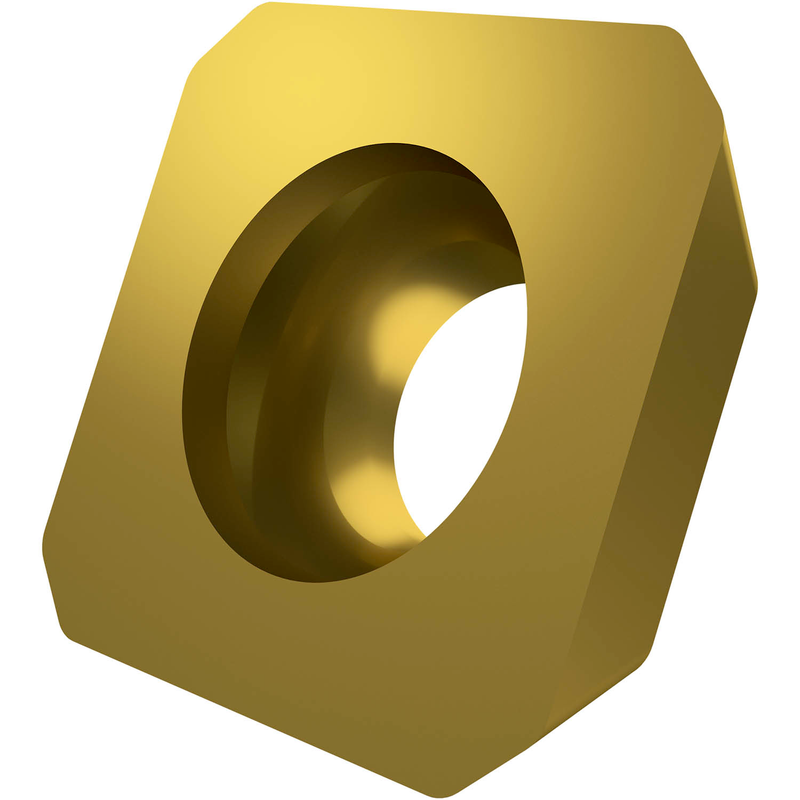

Plaquette de fraisage simple face SEEW 1204 avec une surface de coupe plane, carrée pour une profondeur de coupe maximale de 6,5 mm, avec un rayon de coin de ", une précision d'indexation selon la classe de tolérance ISO-E avec des arêtes de coupe arrondies, en carbure WC-Co à grains fins revêtu PVD M8340

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SEEW 1204AFEN:M8340
GradeM8340
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6800864
Product FamilySEEW 12

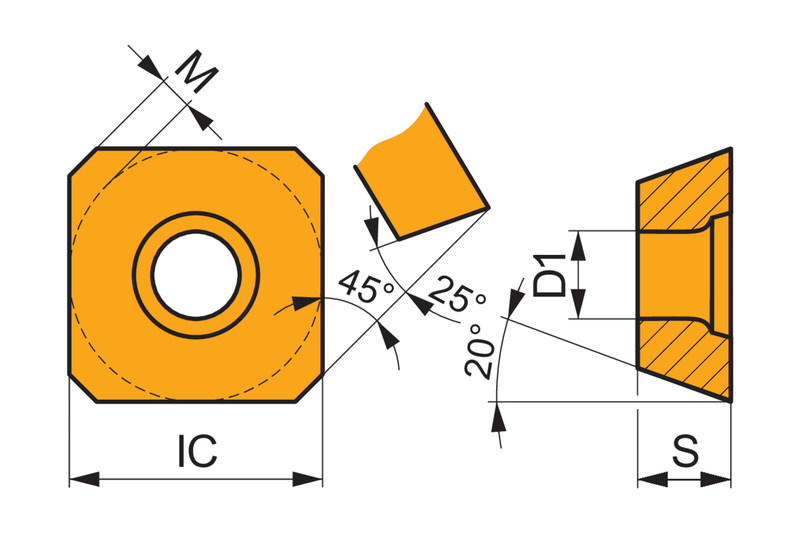

Insert Geometry
Insert DesignVOIR
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.256"
Depth of Cut Max — mm (APMX)6.5 mm
Tool Information
Reference Numbers
EDP Number6800864
EAN3603602993953
File Type Download
SEEW 1204AFEN:M8340 — Line Drawing PDF Download
