SNHN 43ENEN:M8340
SNHN 43ENEN:M8340

SNHN 43ENEN:M8340

UGC DOR6800869
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.47 CAD - $20.47 CAD
$20.47 CAD
$20.47 CAD - $20.47 CAD
$20.47 CAD

Vendu en lots de : 10

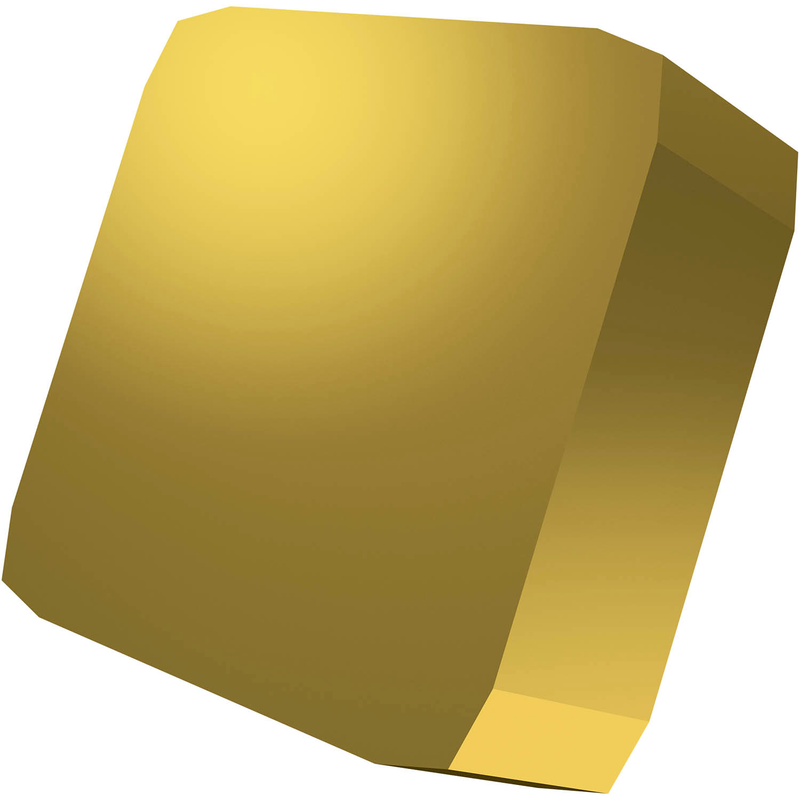

Plaquette de fraisage double face SNHN 1204 à arête de coupe plane, carrée pour une profondeur de coupe maximale de 8,99 mm (0,3543"), avec rayon d'angle « », une précision de positionnement selon la classe de tolérance ISO-H, avec arêtes de coupe arrondies, M8340 carbure WC-Co à grains fins revêtu PVD

For more information about this product, click here

Identification
Ordering Code (ANSI)SNHN 43ENEN:M8340
Product Name (ISO)SNHN 1204ENEN:M8340
GradeM8340
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6800869
Product FamilySNHN

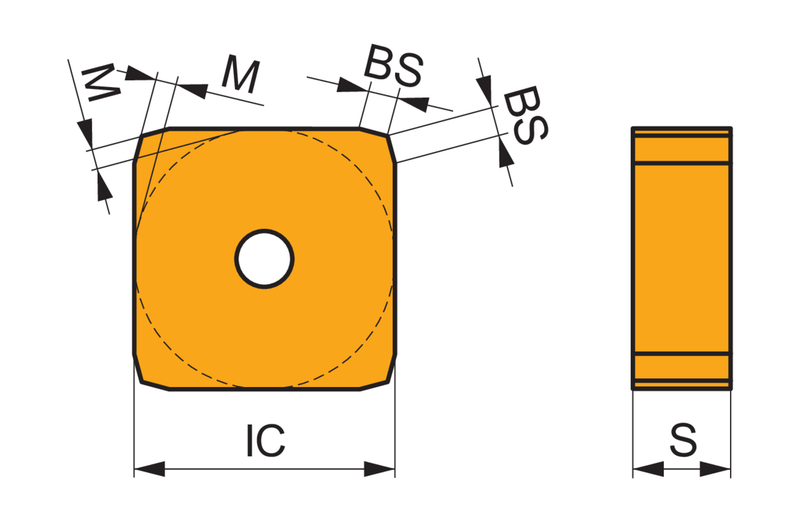

Insert Geometry
Insert DesignSNHN
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.354"
Depth of Cut Max — mm (APMX)9.0 mm
Tool Information
Reference Numbers
EDP Number6800869
EAN3603602994004
File Type Download
SNHN 43ENEN:M8340 — Line Drawing PDF Download
