SNHN 53ENEN:M8340
SNHN 53ENEN:M8340

SNHN 53ENEN:M8340

UGC DOR6800870
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$25.76 CAD - $25.76 CAD
$25.76 CAD
$25.76 CAD - $25.76 CAD
$25.76 CAD

Vendu en lots de : 10

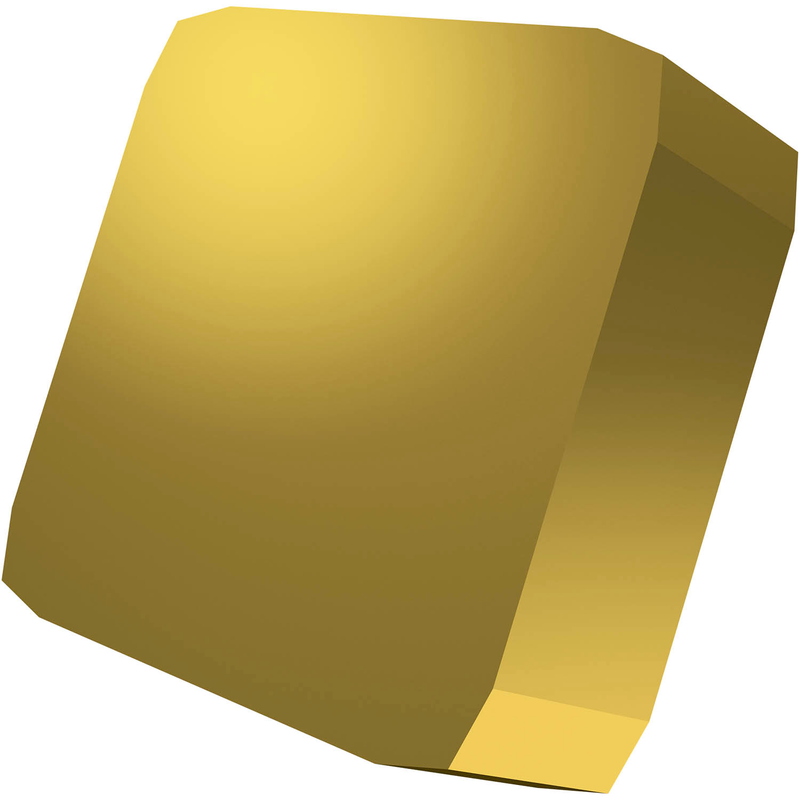

Plaquette de fraisage double face SNHN 1504 avec une surface de coupe plane, carrée pour une profondeur de coupe maximale de 13,5 mm, avec un rayon de coin de 0,8 mm, une précision de positionnement selon la classe de tolérance ISO-H avec des arêtes de coupe arrondies, en carbure WC-Co à grain fin revêtu PVD M8340

For more information about this product, click here

Identification
Ordering Code (ANSI)SNHN 53ENEN:M8340
Product Name (ISO)SNHN 1504ENEN:M8340
GradeM8340
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6800870
Product FamilySNHS

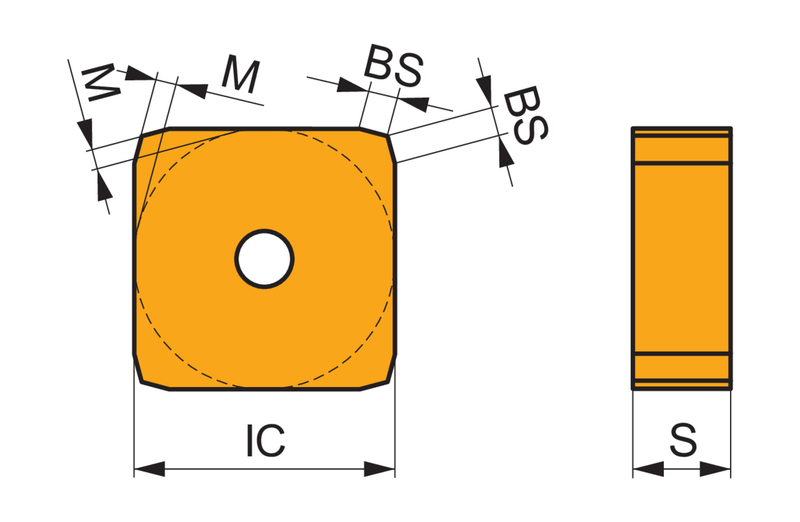

Insert Geometry
Insert DesignSNHN
Insert Shape Code (SC)S - carré
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.88 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.531"
Depth of Cut Max — mm (APMX)13.5 mm
Tool Information
Reference Numbers
EDP Number6800870
EAN3603602995018
File Type Download
SNHN 53ENEN:M8340 — Line Drawing PDF Download
