SNHQ 1103AZTN:M8340
SNHQ 1103AZTN:M8340

SNHQ 1103AZTN:M8340

UGC DOR6800872
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$25.41 CAD - $25.41 CAD
$25.41 CAD
$25.41 CAD - $25.41 CAD
$25.41 CAD

Vendu en lots de : 10

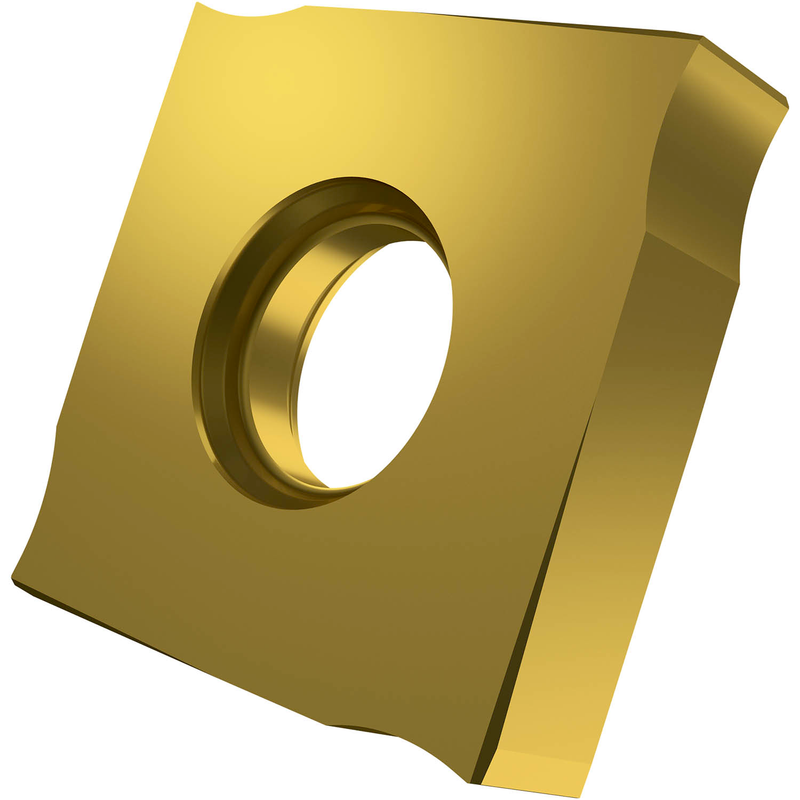

Plaquette de fraisage double face, pour une largeur de coupe de 0,1969" avec arêtes de coupe à facettes, carbure WC-Co à grains fins revêtu PVD M8340 dans la gamme de nuances ISO P25-P50 pour l'usinage de l'acier avec les fraises à disque S90SN

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SNHQ 1103AZTN:M8340
GradeM8340
Chipbreaker (CBMD)Avec brise-copeaux - aucune désignation
Product Number6800872
Product FamilySNHQ AZ
Insert Geometry
Insert DesignQNSH
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.433"
Inscribed Circle Dia. — mm (IC)11.0 mm
Tool Information
Reference Numbers
EDP Number6800872
EAN3603602995032
File Type Download

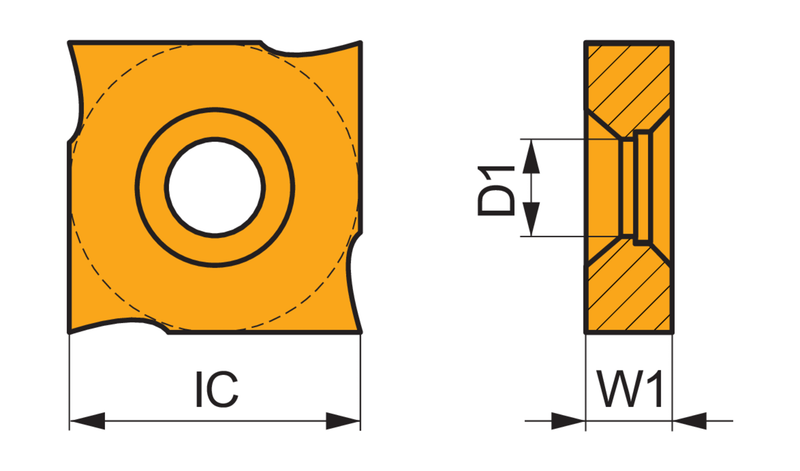

SNHQ 1103AZTN:M8340 — Line Drawing PDF Download
