SNHQ 120405TRL:M8340
SNHQ 120405TRL:M8340

SNHQ 120405TRL:M8340

UGC DOR6800878
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$28.33 CAD - $28.33 CAD
$28.33 CAD
$28.33 CAD - $28.33 CAD
$28.33 CAD

Vendu en lots de : 10

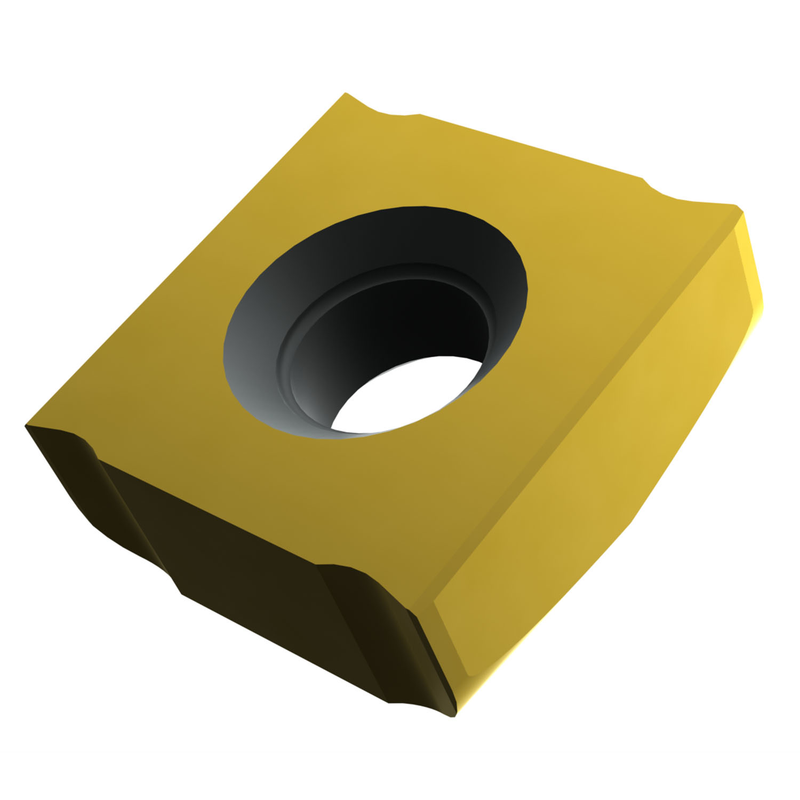

Plaquette de fraisage de disque unilatérale, pour une largeur de coupe de 0,315" avec un rayon de coin de 0,0197" et des arêtes de coupe avec facette, carbure WC-Co à grain fin revêtu PVD M8340 dans la plage de nuances ISO P25-P50 pour l'usinage de l'acier avec des fraises à disque S90SN

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SNHQ 120405TRL:M8340
GradeM8340
Chipbreaker (CBMD)Avec brise-copeaux - aucune désignation
Product Number6800878
Product FamilySNHQ TRL

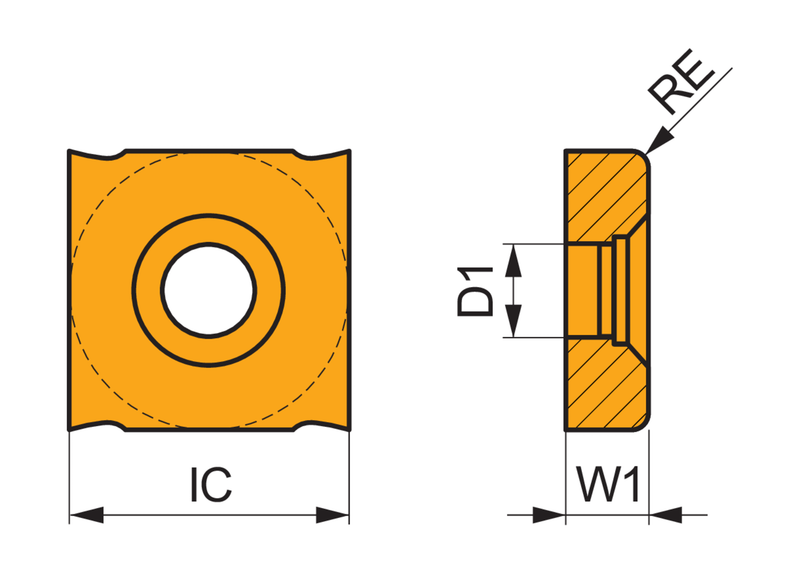

Insert Geometry
Insert DesignSNHQ
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Corner Radius — in (RE)0.02"
Corner Radius — mm (RE)0.5 mm
Tool Information
Reference Numbers
EDP Number6800878
EAN3603602995094
File Type Download
SNHQ 120405TRL:M8340 — Line Drawing PDF Download
